Astronomik ProPlanet 807 Clip-Filter EOS APS-C

  • $85.95
    Unit price per


Delivery: Ships in 5 to 10 business days after the date of purchase.


Clip-Filter system for Canon EOS APS-C cameras


Do you own a Canon EOS digital camera for astro-imaging? Then you have surely encountered the following problems:

  • Large filters for large camera lens objectives are very expensive
  • If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
  • For very fast (low f/ number) telescopes like the Vixen R200SS or the Takahashi “Epsilon” astrograph, a filter drawer or a filter wheel cannot be used since the distance to the corrector lenses would be changed.
  • With long exposure times your camera’s sensor chip is exposed to more dust


With the Astronomik Clip-Filter System you can take care of all of these problems at once!

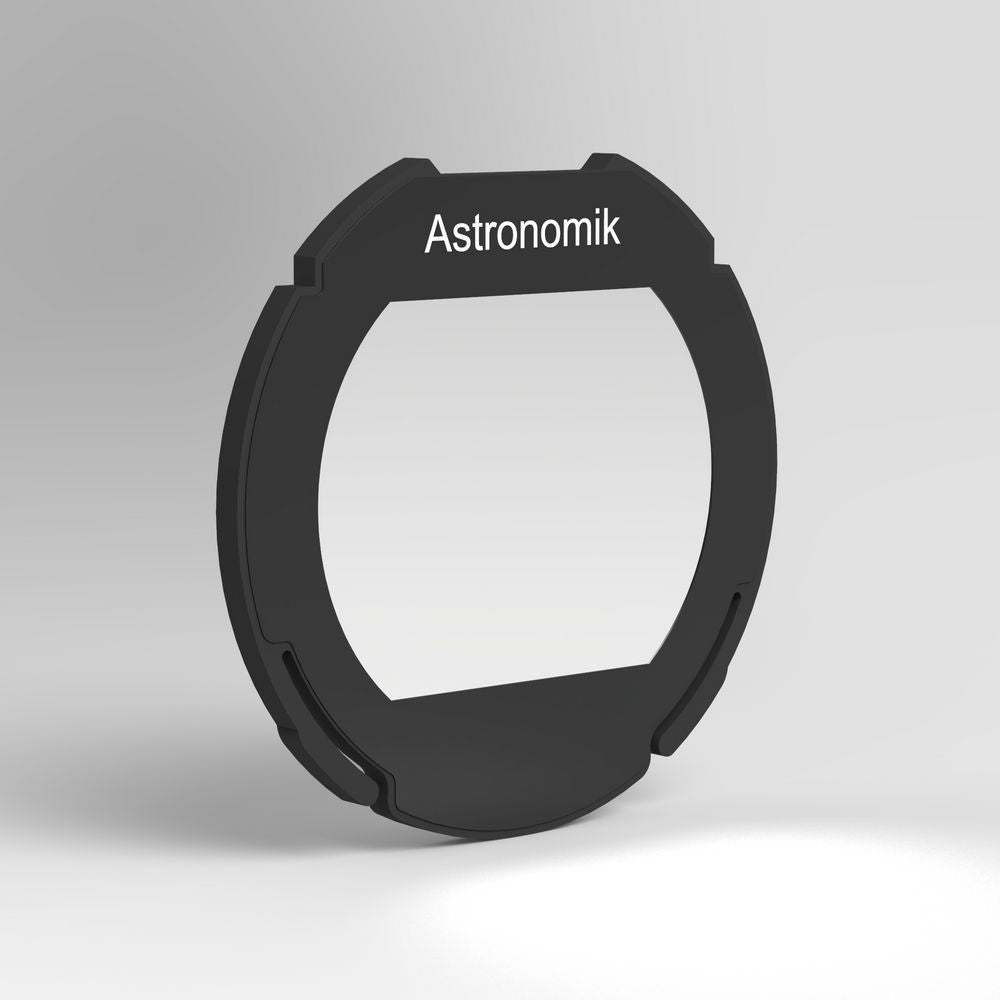

The patented Astronomik Clip-Filter System is black anodized aluminum and laser-cut on state-of-the-art modern machines. It can be inserted within seconds directly into the EOS camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain functional!

Almost all Canon system lenses (with the exception of the genuine EF-S series lenses), all lenses (known to us) from third party manufacturers and all M42 and T2 lens adapters, can be used with the Astronomik Clip-Filter System. The Clip-Filter System also acts as an outstanding dust shield, which prevents the possibility of dust settling on the sensor during long time exposure (The MC-Clear filter does not have a filter effect and only acts as a dust shield.)



Astronomik ProPlanet 807 IR-Pass Clip-Filter EOS APS-C


Ideal addition to the Astronomik ProPlanet IR 742 for imaging the moon and planets, with telescopes larger then 10" (250mm) when the seeing is poor.


This filter is an ideal complement to the ProPlanet IR 742 for use with converted DSLR cameras, CCD cameras and Webcams. The effects of seeing are distinctly reduced. It is your entry into previously unknown dimensions of photography of the moon and the planets.

The ProPlanet IR 807 only allows infrared light with wavelengths of more than 807 nm to pass. In this wavelength range the effects of seeing are significantly lower than in the visible spectrum of the human eye. This allows much sharper images than are usually obtained from your device and location. Another advantage is that the sky background of advanced dawn is dark and even allows photography of planets and moon at daylight.

Main use


The Astronomik ProPlanet IR 807 cuts off the visible part of the spectrum and allows the light of wavelengths longer then 807nm to pass. Due to this behavior the part of the spectrum that is most sensitive to bad seeing is rejected. This approach does a big improvement to the imaging of planets and the moon. The image is more steady than the image in the visible light.



Jupiter, imaged with L-RGB Filtern (left) and Astronomik ProPlanet 742 (right)

Comparing sharpness in IR-R-G-B at Saturn

Comparing L-RGB versus IR-RGB at Saturn


Other uses

  • The Astronomik ProPlanet IR 807 is designed to be an addition to the Astronomik ProPlanet IR 742, if the seeing is extremely bad and a larger telescope is used.
  • For most cameras the exposure times doubles, compared to the Astronomik ProPlanet IR 742 or imaging in visible light, if the Astronomik ProPlanet IR 807 is used.
  • Darkens the background during twilight.
  • Imaging of bright planets, stars and comets by day.
  • Imaging of young stars in dust clouds and stellar nurseries.


Alternatives
If the seeing is not so bad or if the telescope is smaller than 10" (250mm) we recommend the use of the Astronomik ProPlanet IR 742.


Mounting the Astronomik Clip-Filter:



Removing the Clip-Filter

California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. https://www.p65warnings.ca.gov/

Technical Data

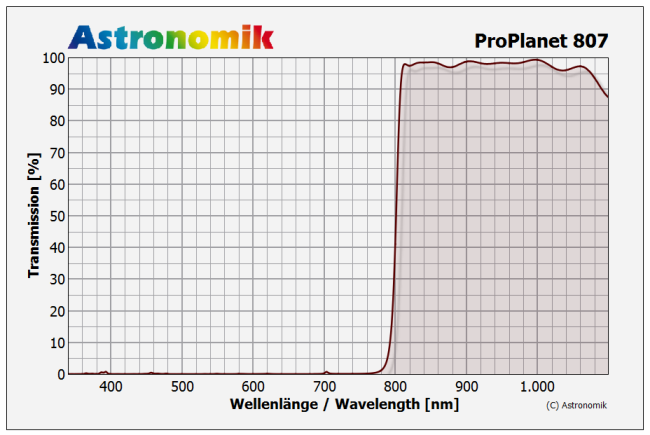

  • more than 97% transmission for wavelengths of 807nm to 1100nm
  • blocking of wavelengths between 350nm and 790nm
  • Parfocal with other Astronomik filters
  • Glass thickness: 1mm
  • Completely resistant against high humidity, scratches and aging effects
  • Diffraction limited, the filter will not reduce the optical performance of your telescope!
  • Astronomik filters are delivered in a high-quality, long lasting, filter box
  • Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past


Canon EOS suitable for Clip-Filter astro modification possible Live-View Megapixel
7D MkII yes no filter for replacement needed yes 20,2
7D yes no filter for replacement needed yes 18,0
20D yes filter for replacement needed no 8,2
20Da yes filter for replacement needed yes 8,2
30D yes filter for replacement needed no 8,2
40D yes no filter for replacement needed yes 10,1
50D yes no filter for replacement needed yes 15,1
60D + 60Da yes no filter for replacement needed yes 18
70D yes no filter for replacement needed yes 20,2
77D yes no filter for replacement needed yes 24,2
80D yes no filter for replacement needed yes 24
90D yes no filter for replacement needed yes 32
300D / Digital Rebel / Kiss Digital yes filter for replacement needed no 6,3
350D / Digital Rebel XT / Kiss Digital N yes filter for replacement needed no 8,0
400D / Digital Rebel XTi / Kiss Digital X yes no filter for replacement needed no 10,1
450D / Rebel XSi / Kiss X2 yes no filter for replacement needed yes 12,2
500D / Rebel T1i / Kiss X3 yes no filter for replacement needed yes 15,1
550D / Rebel T2i / Kiss X4 yes no filter for replacement needed yes 18
600D / Rebel T3i / Kiss X5 yes no filter for replacement needed yes 18
650D / Rebel T4i / Kiss X6 yes no filter for replacement needed yes 18
700D / Rebel T5i / Kiss X7 yes no filter for replacement needed yes 18
750D / Rebel T6i / Kiss X8i yes no filter for replacement needed yes 24
760D / Rebel T6s / 8000D yes no filter for replacement needed yes 24,2
800D / Rebel T7i / Kiss X9i yes no filter for replacement needed yes 24
850D / Rebel T8i / Kiss X10i
yes no filter for replacement needed yes 24
1000D / Rebel XS / Kiss F yes no filter for replacement needed yes 10,1
1100D / Rebel T3 / Kiss X50 yes no filter for replacement needed yes 12,2
1200D / Rebel T5 / Kiss X70 yes no filter for replacement needed yes 18
1300D / Rebel T6 / Kiss X80 yes no filter for replacement needed yes 18
2000D / Rebel T7 / Kiss X90 yes no filter for replacement needed yes 24,1
4000D / Rebel T100 / 3000D yes no filter for replacement needed yes 18
100D / Rebel SL1 / Kiss X7 yes no filter for replacement needed yes 18
200D / Rebel SL2 / Kiss X9 yes no filter for replacement needed yes 24,1
250D / Rebel SL3 / Kiss X10 yes no filter for replacement needed yes 24,1
M series (all versions) yes: This version fit´s into the Canon Adapter EF to EF-M



Important: Not suitable are cameras offered before 2003 and all varieties of the Canon EOS 1D and EOS M.
