Astronomik MC-Clear Clip-Filter Nikon Z XL

  • $99.95
    Unit price per


Delivery: Ships in 5 to 10 business days after the date of purchase.


Clip-Filter system for Nikon Z Full Frame Mirrorless cameras


Do you own a Nikon Z Full Frame digital camera for astro-imaging? Then you have surely encountered the following problems:

  • Large filters for large camera lens objectives are very expensive
  • If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
  • With long exposure times your camera’s sensor chip is exposed to more dust


With the Astronomik Clip-Filter System you can take care of all of these problems at once!

The patented Astronomik Clip-Filter System is black anodized aluminum and laser-cut on state-of-the-art modern machines. It can be inserted within seconds directly into the Nikon Z camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain functional!


The filters are held in place save and secure with no stress to the high quality glass. Installation and removal are quick an easy!
The clip-filter are designed and optimized to be used with normal lenses and with telescopes as well.
Due to the very tight space inside the camera the clip filters might add a minimal obstruction at the edge of the field, which is easily corrected by normal flat fielding.

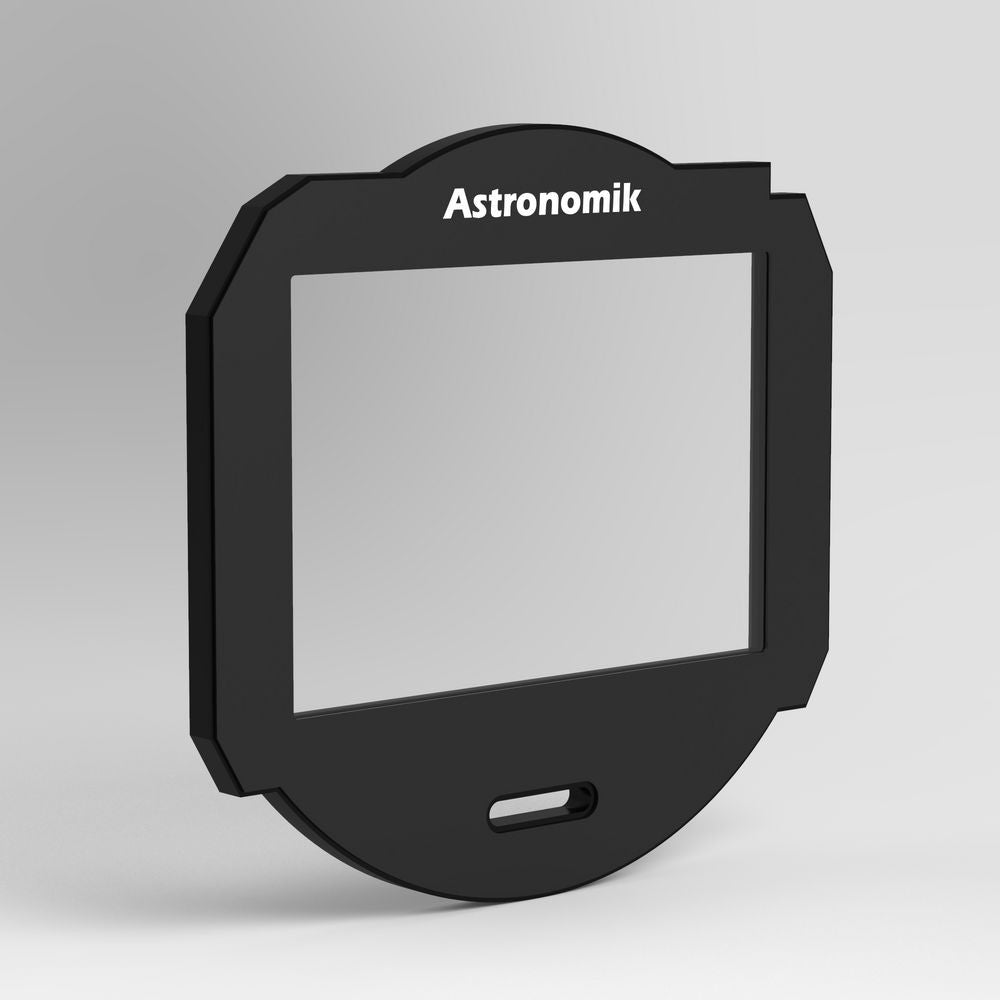

Astronomik MC-Clear Clip-Filter Nikon Z XL


This filter should be used if the focal plane of your imaging system should stay in the same place as with other Astronomik filters in place. The multicoating prevents you from unwanted reflections. It blocks neither IR nor UV.

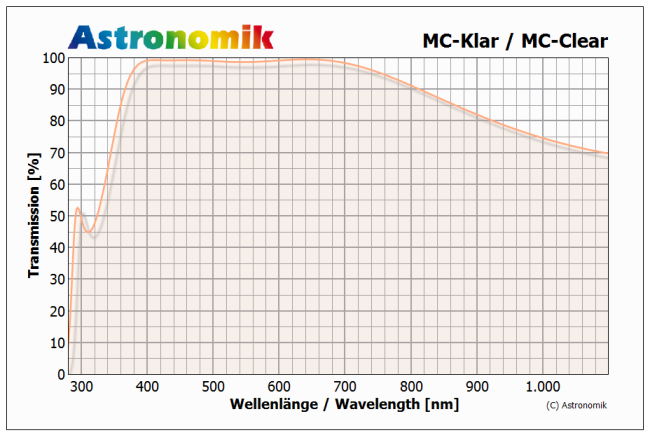

The second main application is dust protection of your system (telescope or camera). As the filter doesn’t modify the spectral transmittance of your system it doesn’t alter the colors. It’s great for keeping all dust away from your optics or sensor.

Lots of Astronomik MC Clear filters in custom diameters are sold to camera manufacturers worldwide. They like the great coating and scratch resistance!

Main use


The Astronomik MC Clear is made by the same high-end process as all other Astronomik filters. The coating has the same scratch resistance and the substrate has the same high quality. Because of this it is parfocal with all other Astronomik filters and can be used in any optical system for dust protection without modifying the spectral characteristics and without destroying the optical performance of your system.

Other uses

  • As a dust protection of Schmidt-Cassegrain, Schmidt-Newton or Maksutov system or as a dust protection in front of DSLR camera.
  • As an alternative instead of the UV-IR-Blocker if your system has no refracting elements.


Alternatives


You should think about using the IR-blocker or even the UV-IR blocker if you have a system with any refracting elements

Important: Full Spectrum modified cameras will need an additional IR-block-filter.



    Watch the following video to see how easy the clip filters can be used:



    California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. https://www.p65warnings.ca.gov/

    Technical Data



    • Parfocal with other Astronomik filters
    • Glass thickness: 1mm
    • Completely resistant against high humidity, scratches and aging effects
    • Diffraction limited, the filter will not reduce the optical performance of your telescope!
    • Astronomik filters are delivered in a high-quality, long lasting, filter box
    • Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past



    • The Nikon Z XL-clip filter have been successfully tested with the Z5, Z6 and Z7.
    • Other bodies have not been tested yet.
    • Not compatible with the original Nikon Z 2.0x teleconverter
