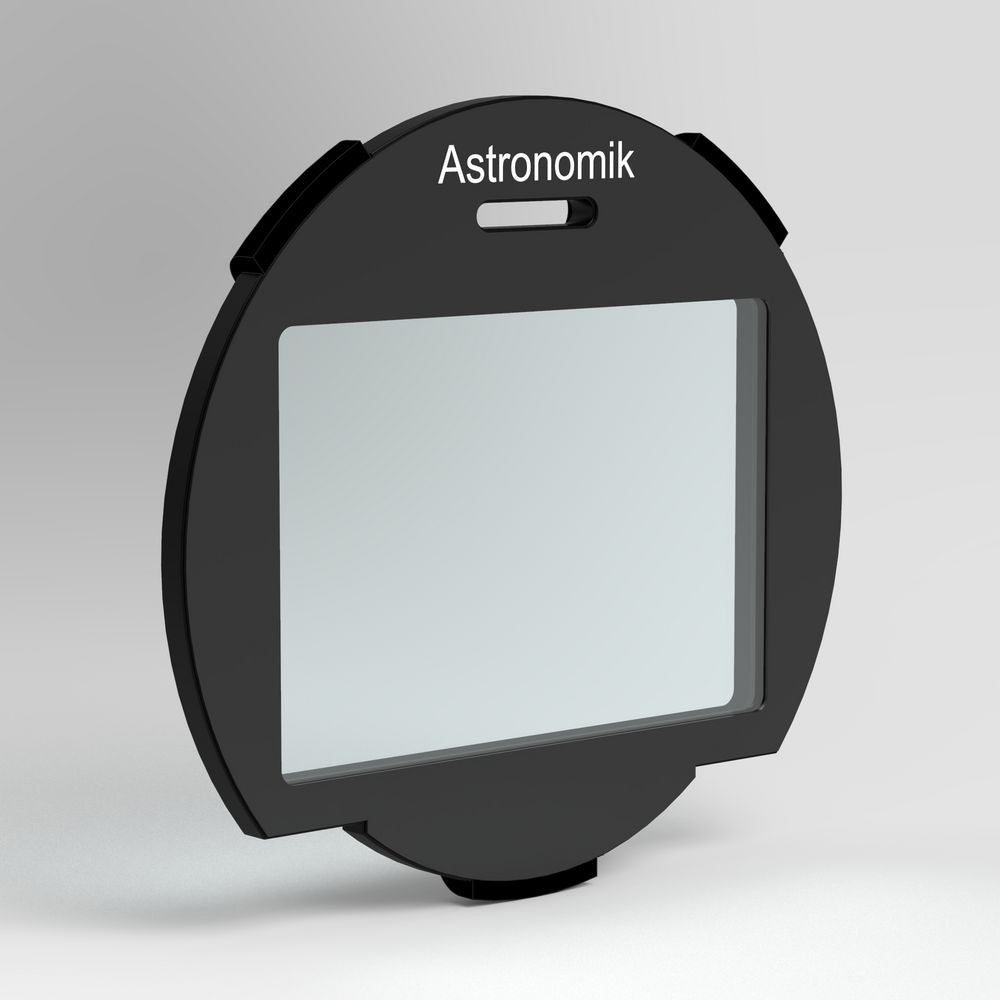

Astronomik L-2 UV-IR Block Clip-Filter EOS R XL

  • $139.95
    Unit price per


Delivery: Ships in 5 to 10 business days after the date of purchase.


Clip-Filter system for Canon EOS R Mirrorless cameras


Do you own a Canon EOS digital camera for astro-imaging? Then you have surely encountered the following problems:

  • Large filters for large camera lens objectives are very expensive
  • If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
  • With long exposure times your camera’s sensor chip is exposed to more dust


With the Astronomik Clip-Filter System you can take care of all of these problems at once!

The patented Astronomik Clip-Filter System is black anodized aluminum and laser-cut on state-of-the-art modern machines. It can be inserted within seconds directly into the EOS R camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain functional!



Astronomik L-2 UV-IR Block Clip-Filter EOS R XL


The Luminance channel is probably the most important for a great final image! You want as much signal as possible so the filter should have the highest transmission possible with a wide spectral bandpass. This combination provides the greatest sensitivity and gives you the highest photon counts on your pixels. While the high transmission level is a great aspect of the new Astronomik Luminance filters, not all optical instruments or additional optical elements like correctors, field-flatteners or reducers, have perfect colour correction so it can be the width of the spectral band pass of  the Luminance filter that can cause problems. A band pass that is too wide will allow the transmission of incompletely focused light (Chromatic aberration), making stars appear soft or bloated. In such cases image processing can become difficult, so having a slightly narrowed spectral window in your Luminance filter can reduce or eliminate this damaging effect.

To give you all the tools to gather the best data possible we have expanded our line of Luminance filters: Now you can select a Luminance filter perfectly matched to the kind of telescope you use, to get the highest signal and sharpest image for the Luminance channel!
Depending on the color correction of your scope you may use a wider spectral window for the Luminance data. The L1 filter has the widest spectral window, the L2 is about the same as our current L-Filter and the L3 is much narrower.
If you use an optical system that is completely free of any chromatic aberration you should get an L1 filter for your setup. For general use the L2 filter is well suited to most optical systems with a corrector, flattener or reducer in the optical train while the L3 filter is designed for users of refractors with a less-than-perfect color correction and in combination with the new Deep-Sky RGB filters, the L3 filter will minimise the problem of bluish halos around stars.

The transmission curve characteristics and coatings on the new Luminance filters have been designed and engineered in such a way that no halos or reflections will be visible. Even with bright stars in the field of view you will be able to reveal the faintest structures in nebulas or galaxies.

Like all Astronomik Filters, the new Luminance filters are made using an extremely durable and scratch resistant coating, deposited on the finest polished optical substrate, which is free of any striae or internal strains. All substrates are made to exactly the same thickness, so all of our filters are parfocal.


    Mounting the Astronomik EOS R Clip-Filter:


    Mounting the Astronomik EOS R Clip Filter is very easy: You don´t need any tools and filters may be changed even at night without any problems.
    Remove the lens and take the Clip Filter from its box. Slide the Clip-Filter into the body and press it in with two fingers, until it rests flush. Re-install the lens. -Your camera is ready for imaging!

    Removing the Astronomik EOS R Clip-Filter:


    Removing the Astronomik EOS R Clip-Filter is very simple too: Pull the filter out with the supplied tool, get the filter with two fingers and put it into it´s storage box. -Done within seconds and the camera is working as before.


    California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. https://www.p65warnings.ca.gov/

    Technical Data

    Filter Type: UV/IR/Luminance
    Transmission Wavelength: 385 nm - 695 nm
    Bandwidth/Bandpass: 310 nm
    Filter Optical Thickness: 1 mm



      Model                     Compatible
      EOS R                            Yes
      EOS Ra                          Yes
      EOS RP                          Yes
      EOS R5                          Yes
      EOS R6                          Yes

      Note: These Clip filters are NOT compatible with this lenses:

      • Canon RF 35mm f/1.8 IS MACRO
      • Canon RF 85mm f1,2 L USM
      • Extender RF 2x
      • Extender RF 1.4x
