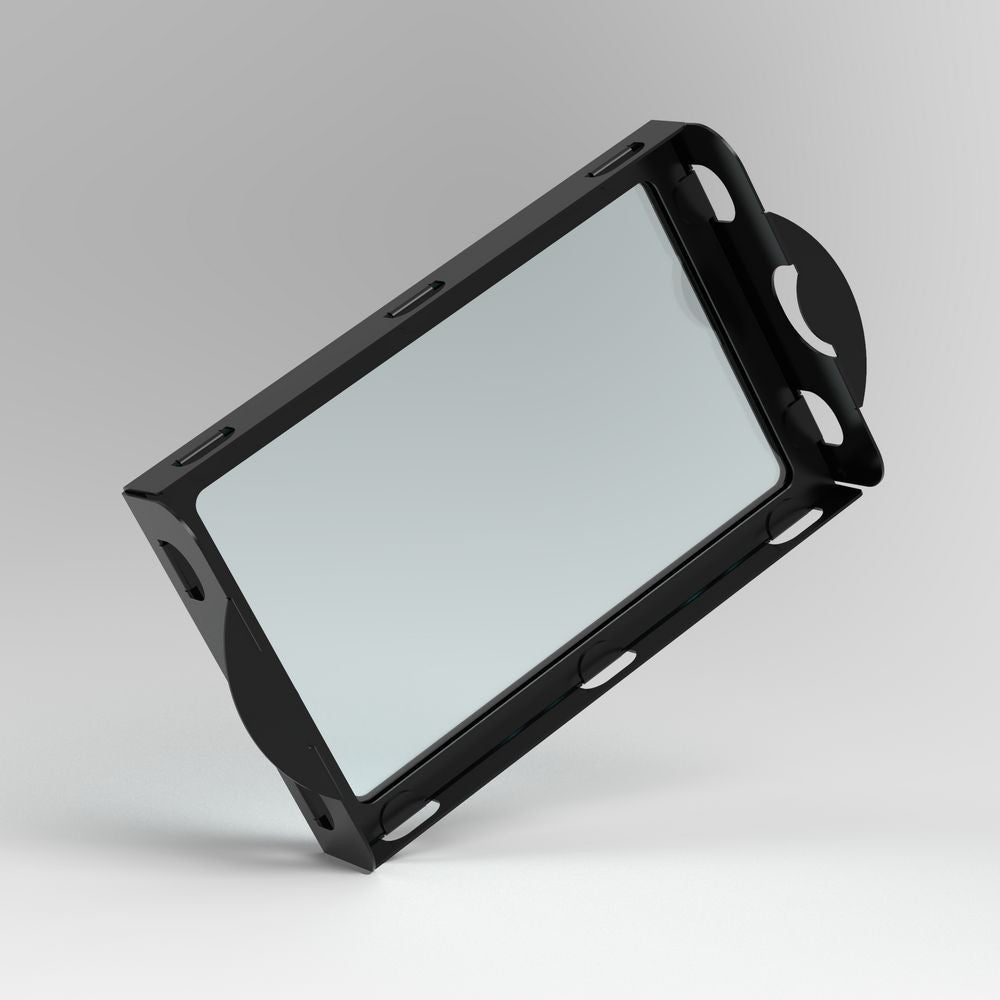

Astronomik L-2 UV-IR Block Clip-Filter EOS Full Frame

  • $129.95
    Unit price per


Delivery: Ships in 5 to 10 business days after the date of purchase.


Clip-Filter system for Canon EOS Full Frame cameras


Do you own a Canon EOS digital camera for astro-imaging? Then you have surely encountered the following problems:

  • Large filters for large camera lens objectives are very expensive
  • If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
  • For very fast (low f/ number) telescopes like the Vixen R200SS or the Takahashi “Epsilon” astrograph, a filter drawer or a filter wheel cannot be used since the distance to the corrector lenses would be changed.
  • With long exposure times your camera’s sensor chip is exposed to more dust


With the Astronomik Clip-Filter System you can take care of all of these problems at once!

Clip-Filters for Canon Full-Format Cameras 5D Mk II, 5D Mk III and 6D. (5D Mk I will work without LiveView only, the 6D Mk II will not work with XL Clip-filters)
Please note that the XL-Clip filters will not work with the Canon 5DS, 5DSR, and the 5D Mk IV.

These Clip-Filters can be installed with your fingers only. Mounting and removing the Clip-Filter is quick and easy. It can be done at any time. No tools or modifications to the body are necessary to use the Clip-Filters.



Astronomik L-2 UV-IR Block Clip-Filter EOS Full Frame


The Luminance channel is probably the most important for a great final image! You want as much signal as possible so the filter should have the highest transmission possible with a wide spectral bandpass. This combination provides the greatest sensitivity and gives you the highest photon counts on your pixels. While the high transmission level is a great aspect of the new Astronomik Luminance filters, not all optical instruments or additional optical elements like correctors, field-flatteners or reducers, have perfect colour correction so it can be the width of the spectral band pass of  the Luminance filter that can cause problems. A band pass that is too wide will allow the transmission of incompletely focused light (Chromatic aberration), making stars appear soft or bloated. In such cases image processing can become difficult, so having a slightly narrowed spectral window in your Luminance filter can reduce or eliminate this damaging effect.

To give you all the tools to gather the best data possible we have expanded our line of Luminance filters: Now you can select a Luminance filter perfectly matched to the kind of telescope you use, to get the highest signal and sharpest image for the Luminance channel!
Depending on the color correction of your scope you may use a wider spectral window for the Luminance data. The L1 filter has the widest spectral window, the L2 is about the same as our current L-Filter and the L3 is much narrower.
If you use an optical system that is completely free of any chromatic aberration you should get an L1 filter for your setup. For general use the L2 filter is well suited to most optical systems with a corrector, flattener or reducer in the optical train while the L3 filter is designed for users of refractors with a less-than-perfect color correction and in combination with the new Deep-Sky RGB filters, the L3 filter will minimise the problem of bluish halos around stars.

The transmission curve characteristics and coatings on the new Luminance filters have been designed and engineered in such a way that no halos or reflections will be visible. Even with bright stars in the field of view you will be able to reveal the faintest structures in nebulas or galaxies.

Like all Astronomik Filters, the new Luminance filters are made using an extremely durable and scratch resistant coating, deposited on the finest polished optical substrate, which is free of any striae or internal strains. All substrates are made to exactly the same thickness, so all of our filters are parfocal.





Mounting the Astronomik EOS XL-Clip Filter is very easy: You don´t need any tools and filters may be changed at night without any problems.
Activate "Mirror Lockup" in the Custom-Functions Menue and press the exposure button once: The flip-mirror goes up and stays there.
Now slide the XL-Clip-Filter into the body and press it in, until it rests on both arms (right & left).
Deactivate the Mirror-Lockup and your camera is ready for imaging!

Remark:
The installed XL-Clip-Filter fixes the flip-mirror in the upper position. -You can´t use the optical viewfinder as long as the XL-Clip Filter is installed. For Searching, focusing and centering you should use the LiveView monitor on the back of the camera or the remote-controll via USB cable. All functions like Autofocus and Image-Stabilization remain fully functional.
The fixed flip-mirror does not cause any kind of problems or error-messages!



Removing the Astronomik EOS XL Clip-Filter is very simple: Pull the filter out with one finger an on arm (either right or left), get the filter with two fingers and put it into it´s storage box.
The flip-mirror goes down and the camera is working as before.

California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. https://www.p65warnings.ca.gov/

Technical Data

Filter Type: UV/IR/Luminance
Transmission Wavelength: 385 nm - 695 nm
Bandwidth/Bandpass: 310 nm
Filter Optical Thickness: 1 mm



Model                     Compatible
EOS 6D                          Yes
EOS 6D MkII                  No
EOS 5D                  Yes (no LiveView)
EOS 5D Mk II                 Yes
EOS 5D Mk III                Yes
EOS 5D Mk IV                No
EOS 5Ds                         No
EOS 5Dsr                        No
EOS 1Dx                  No (all versions)
