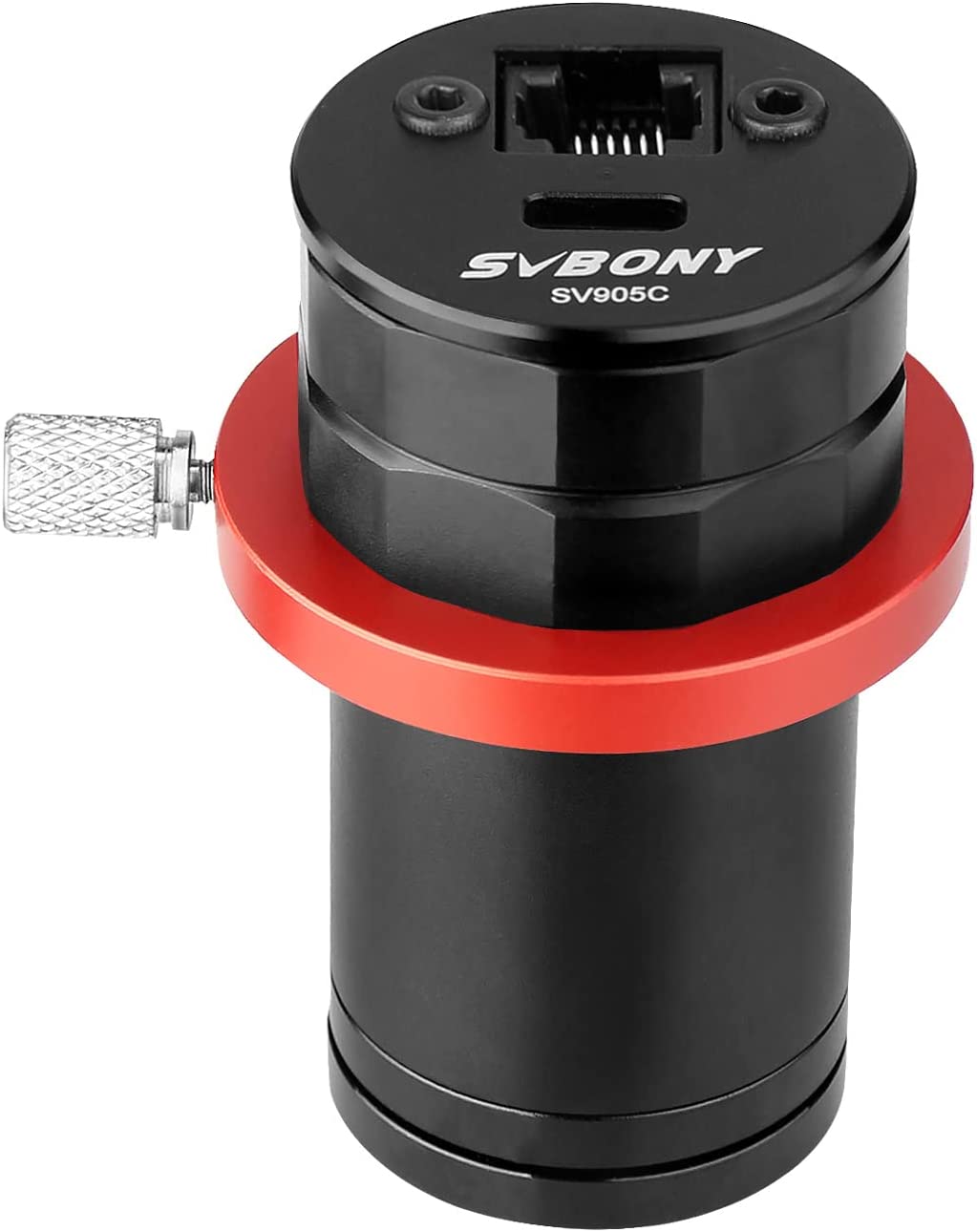

Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor
Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor
Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor
Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor
Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor
Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor
Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor

Svbony SV905C Autoguider Color Camera 1.2MP CMOS Sensor

Delivery: Ships from Svbony warehouse located in Hong Kong. The estimated delivery time is 10 business days. 30 days returns policy. Returns location: Rancho Cordova, California, United States.



Features:

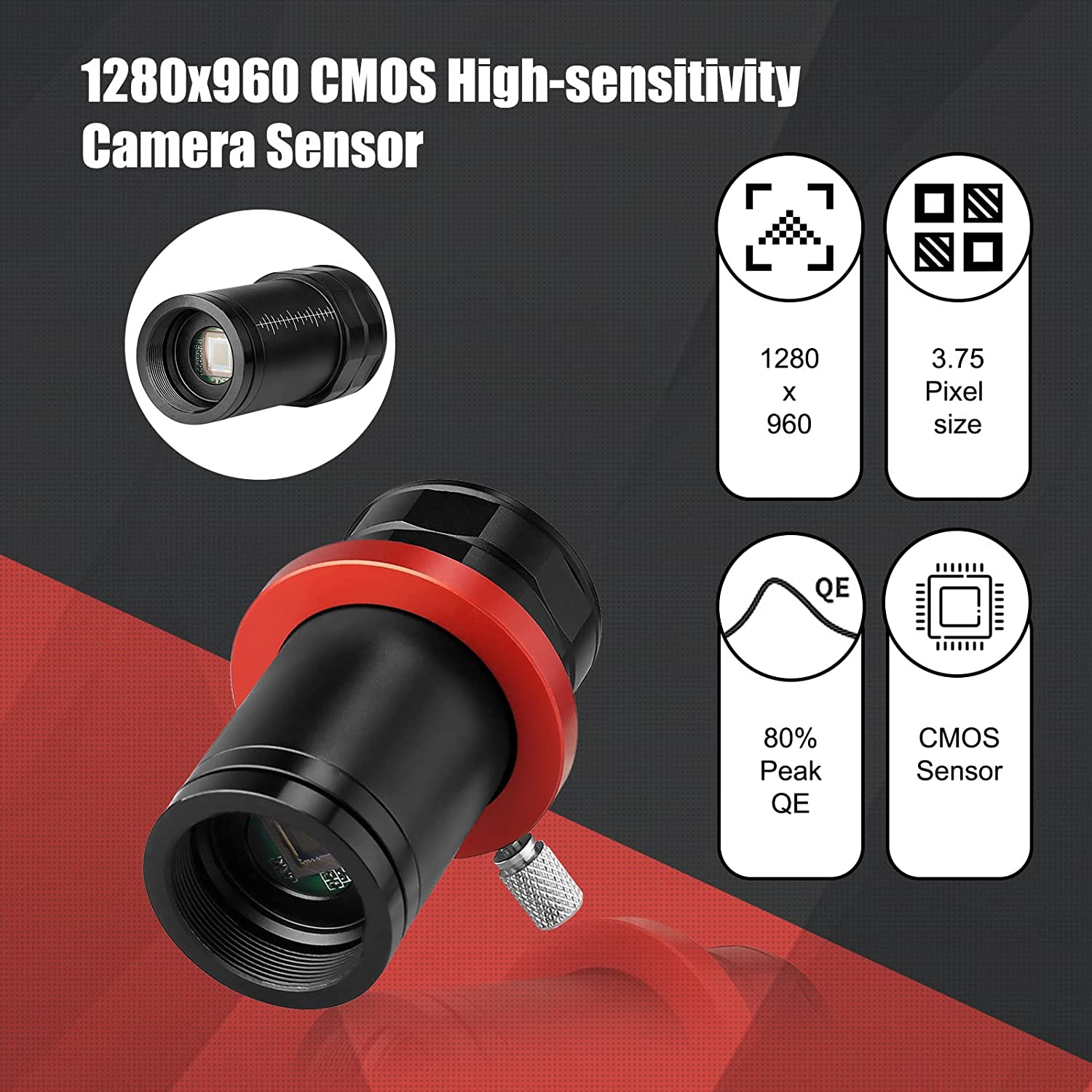

  • Compact and highly sensitive 1.23-megapixel color camera with 1/3” CMOS 1280x960 sensor perfect for autoguiding or planetary imaging; small 3.75-micron pixels; high peak QE of 80% and low read noise allows tight tracking of faint guide stars

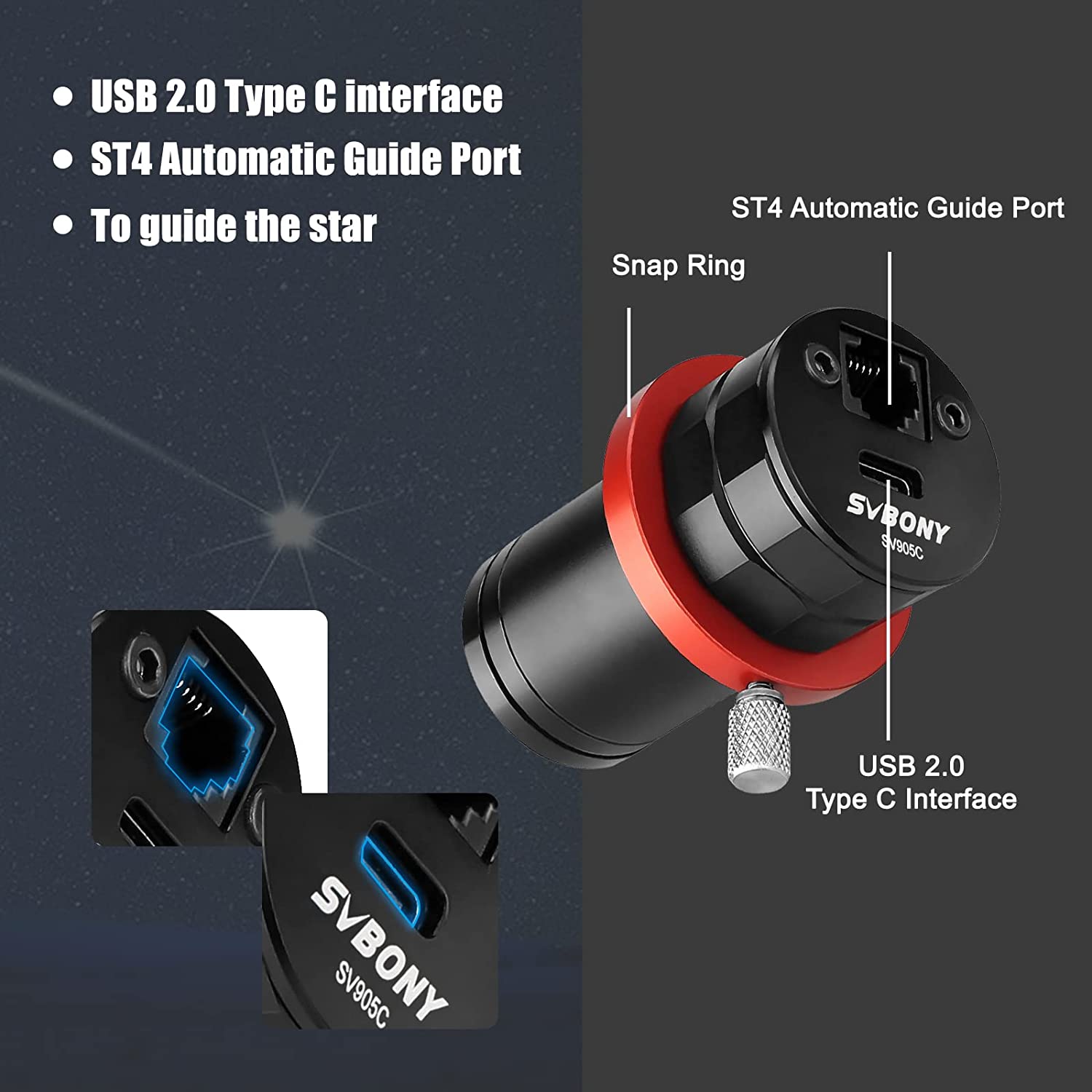

  • USB 2.0 interface output; ST4 guide star interface; can use PHD2; MDL；NINA; SKY-X and other software guide star
  • The front of the camera is equipped with a CS interface and a CS-C adapter ring; which can be matched with a CS lens or a C-mount lens
  • The shape of the product adopts a diameter of 1.25 inches; which can adapt to different focal length guide lenses and OAG guide stars
  • The product is designed with snap ring and scale mark to facilitate the use of the same guide lens for focusing and positioning




 SV905C guiding camera is a sensitive and high-speed color astronomy camera for planetary imaging, lunar and solar imaging, and some bright deep space objects imaging. This camera is also great for ‘lucky imaging’ of planets, double stars, and other compact objects, especially for telescopes with longer focal lengths.

 Application software：

Windows OS: Sharpcap, Firecapture, PHD2, ASCOM platform

Linux OS: AstroDMx capture for Linux

Raspberry Pi: AstroDMx Capture

Mac OS: AstroDMx Capture


USB2.0 interface output and ST4 guide star interface are compatible with PHD2, MDL, NINA, SKY-X and other software.

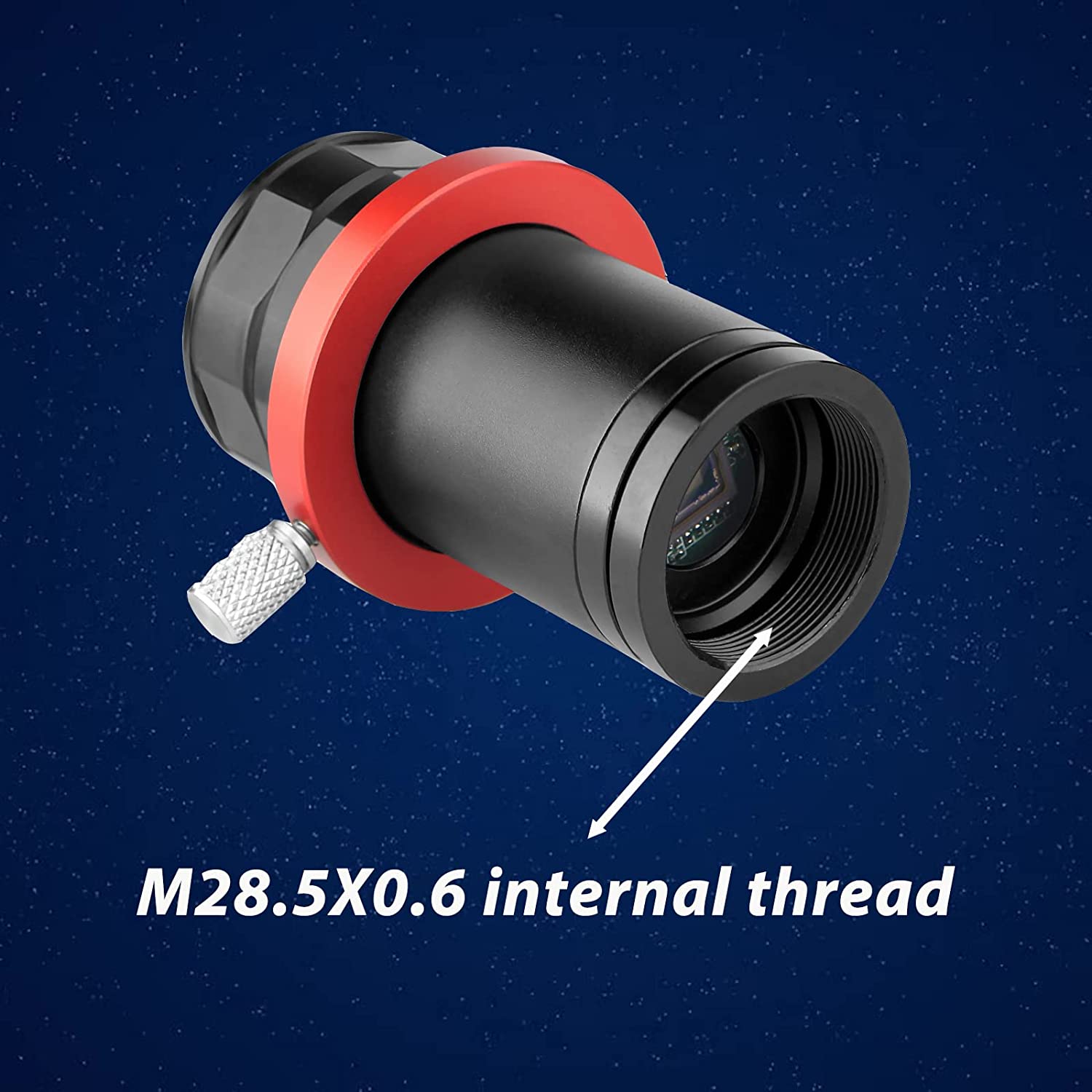

The shape of the product adopts a diameter of 1.25 inches, which can adapt to different focal length guide lenses and OAG guide stars. The internal thread is M28.5X0.6.

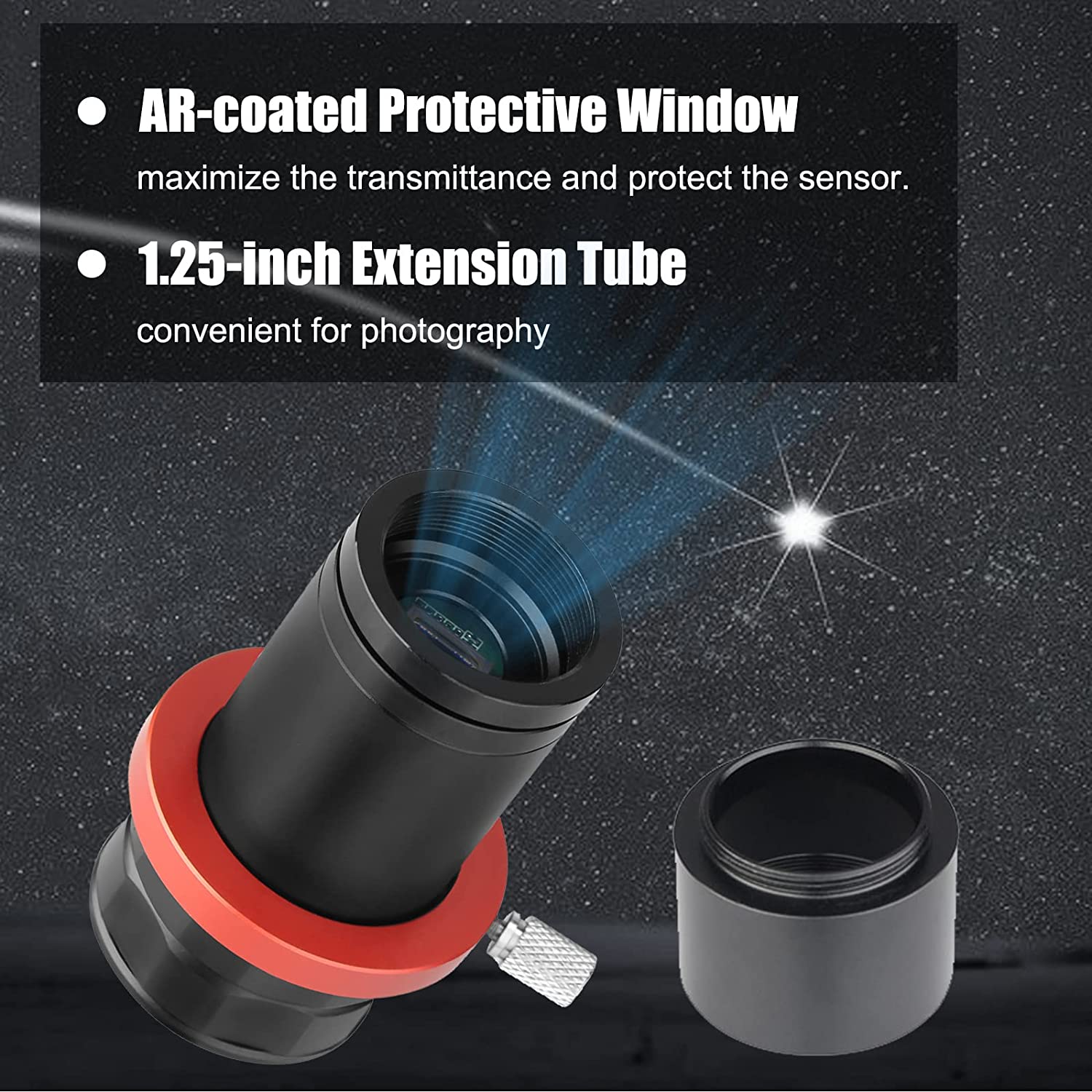

AR-coated protective window to maximize transmission and protect the sensor.

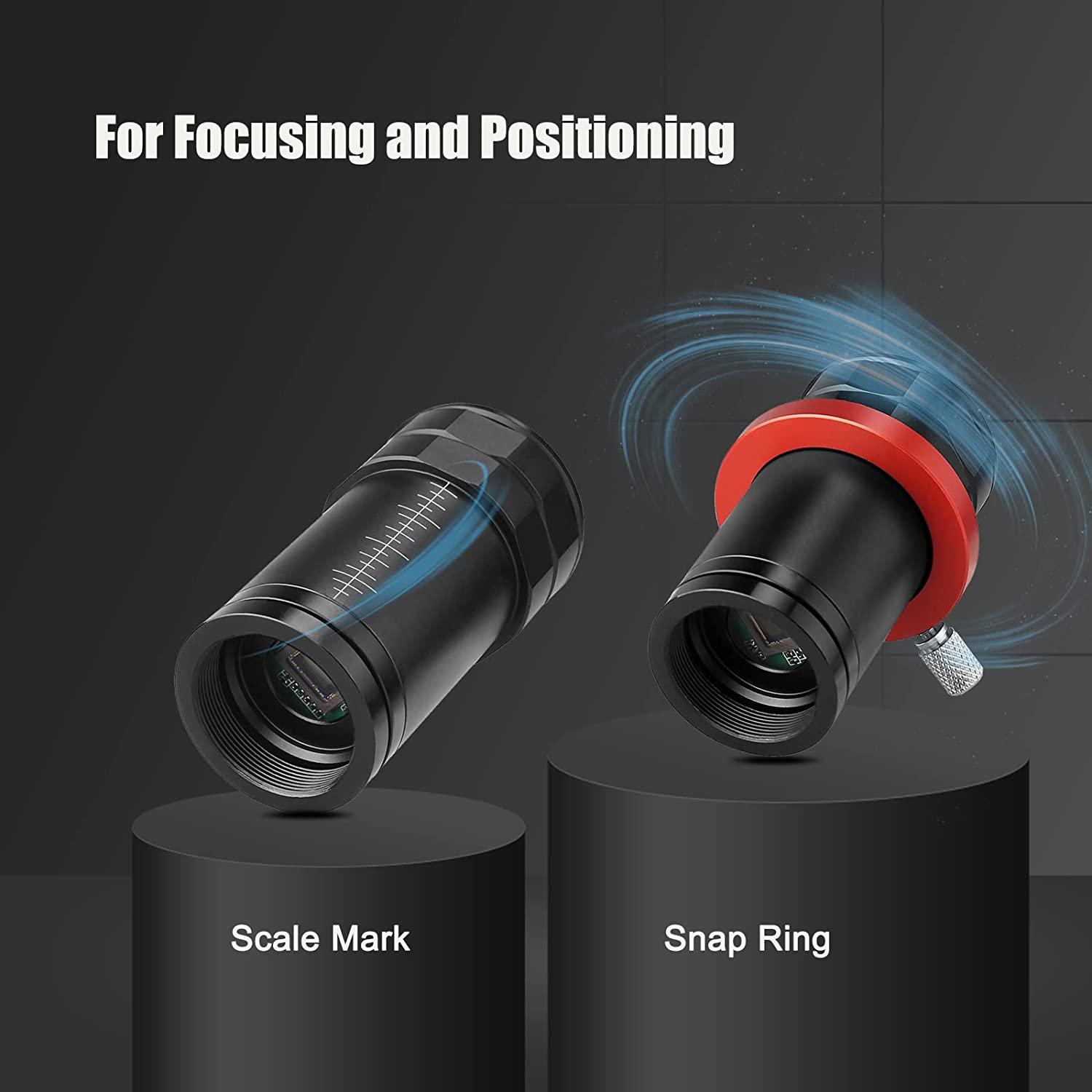

The product is designed with snap ring and scale mark to facilitate the use of the same guide lens for focusing and positioning.

Model SV905C
Sensor SONY IMX225​
USB Type TypeC USB2.0
Pixel Size 3.75µmx3.75µm
Image Area 4.8mm×3.6mm
Total pixels 1.2M pixel
Diagonal 6mm
Maximum Resolution 1280×960
Exposure Time 64us~2000s
Gain 0-500
Maximum Frame Rate 39 FPS
Read noise 4.0 e
QE peak 80%
Shutter type Rolling Shutter
Full well charge 13ke
ADC 12 bit
ROI function Yes
Bin 1x1 2x2
Digital noise reduction HCG mode
Video format AVI mode
Communication interface DirectShow interface
Application software Windows OS: Sharpcap, Firecapture,PHD2          ASCOM platform Linux  OS: AstroDMX capture for LinuxRaspberry Pi: AstroDMX Capture Mac OS: AstroDMX​ Capture
Compatible system Windows7,Windows10,and Main StreamLinux OS,Raspberry Pi,Mac OS

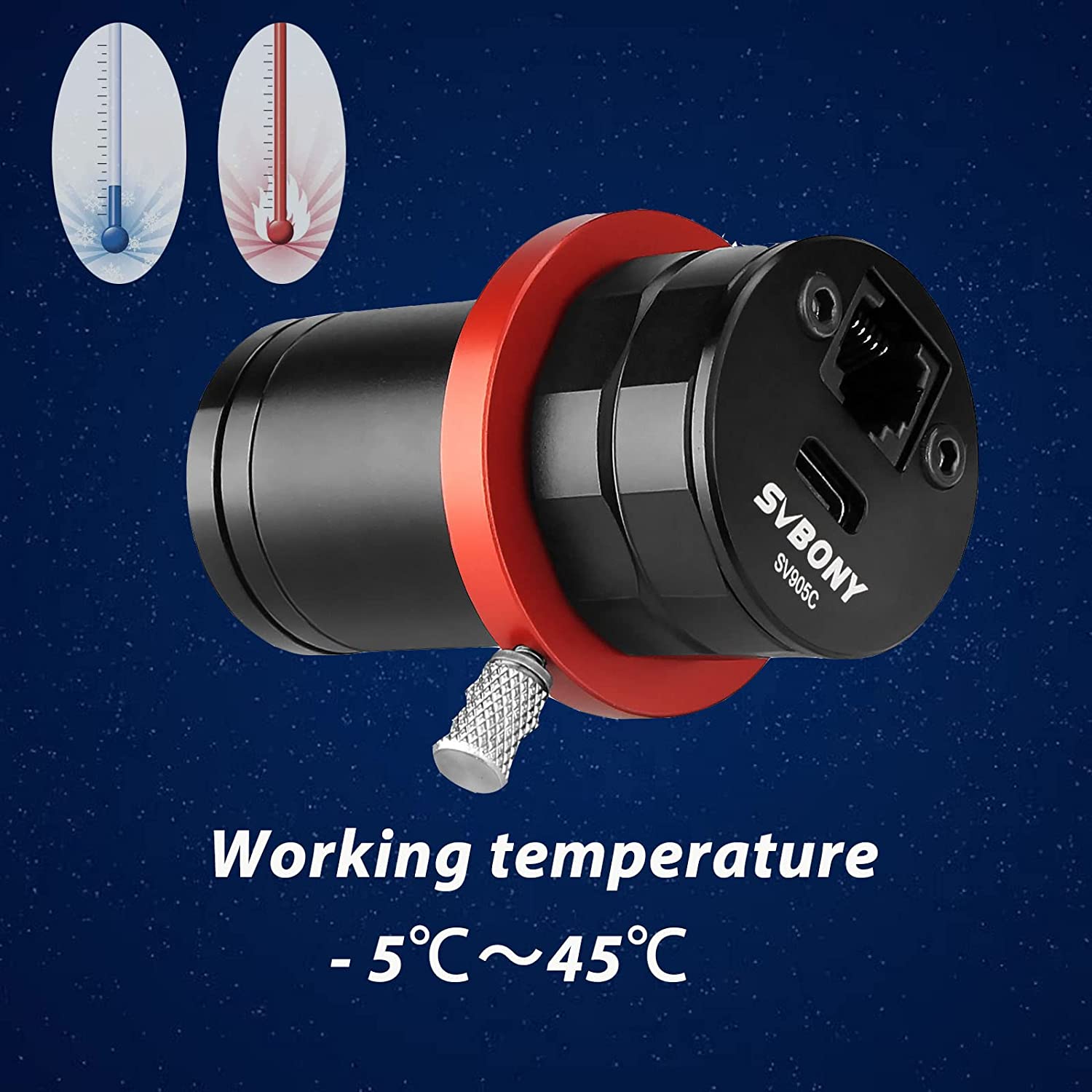

Working temperature - 5℃～45℃
Storage temperature - 20℃～60℃
Working humidity 20% RH-80% RH
Storage humidity 20% RH-95% RH
Power consumption <0.5W
Back intercept 8.5mm/12.5mm
Protective glass AR Coating
weight(with parcel) 230g
Package size 162*132*70 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

We Also Recommend

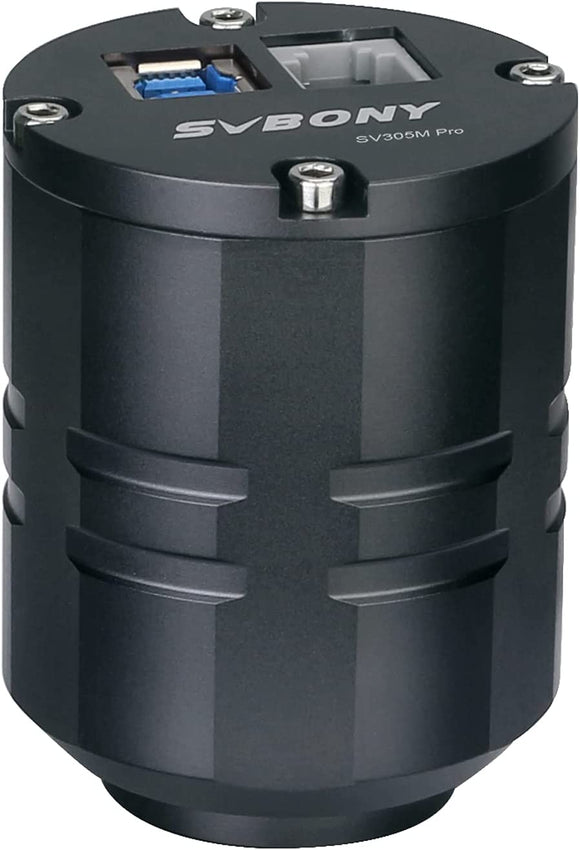

Svbony SV305M Pro Autoguider Monochrome Camera 2MP CMOS Sensor
