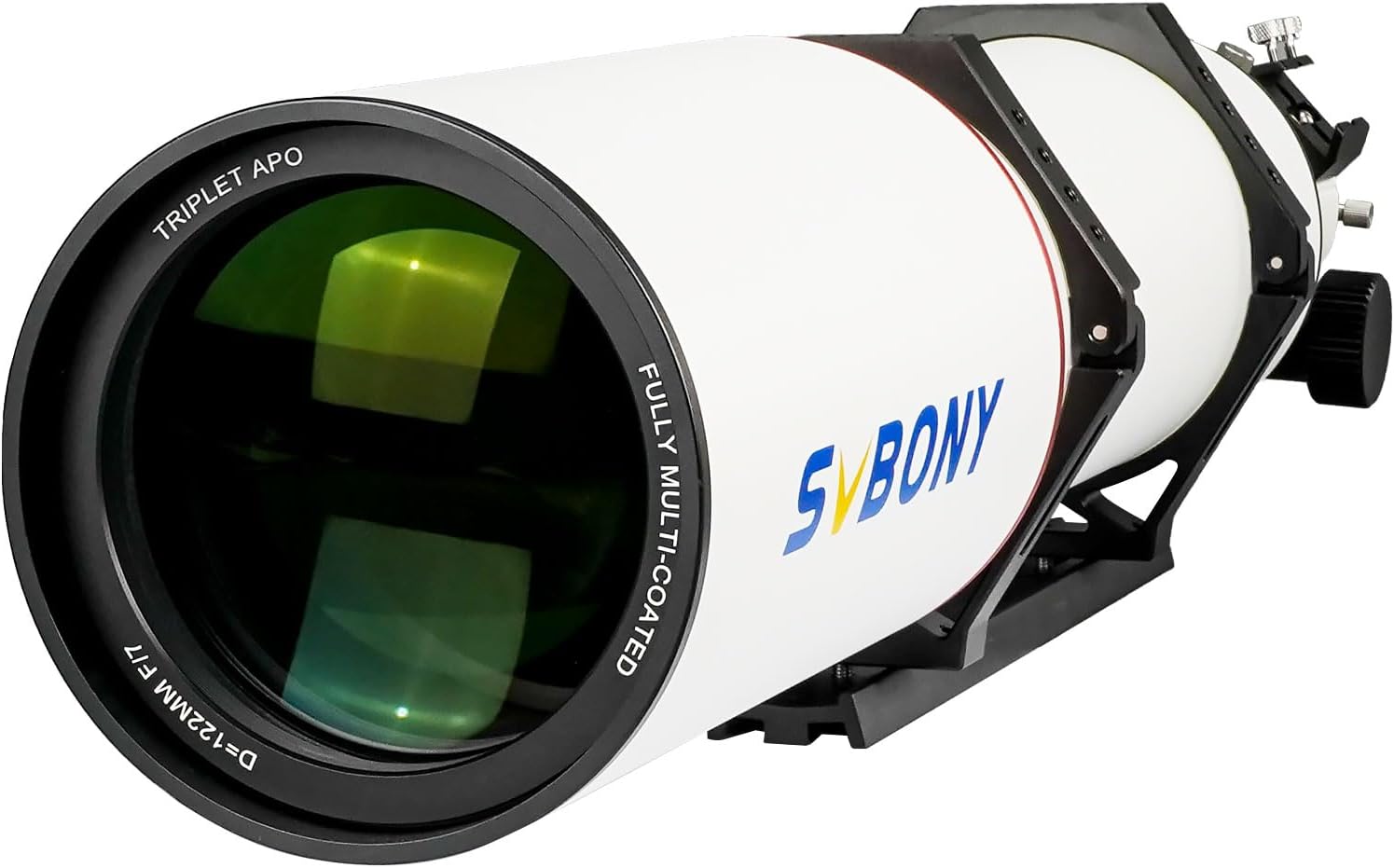

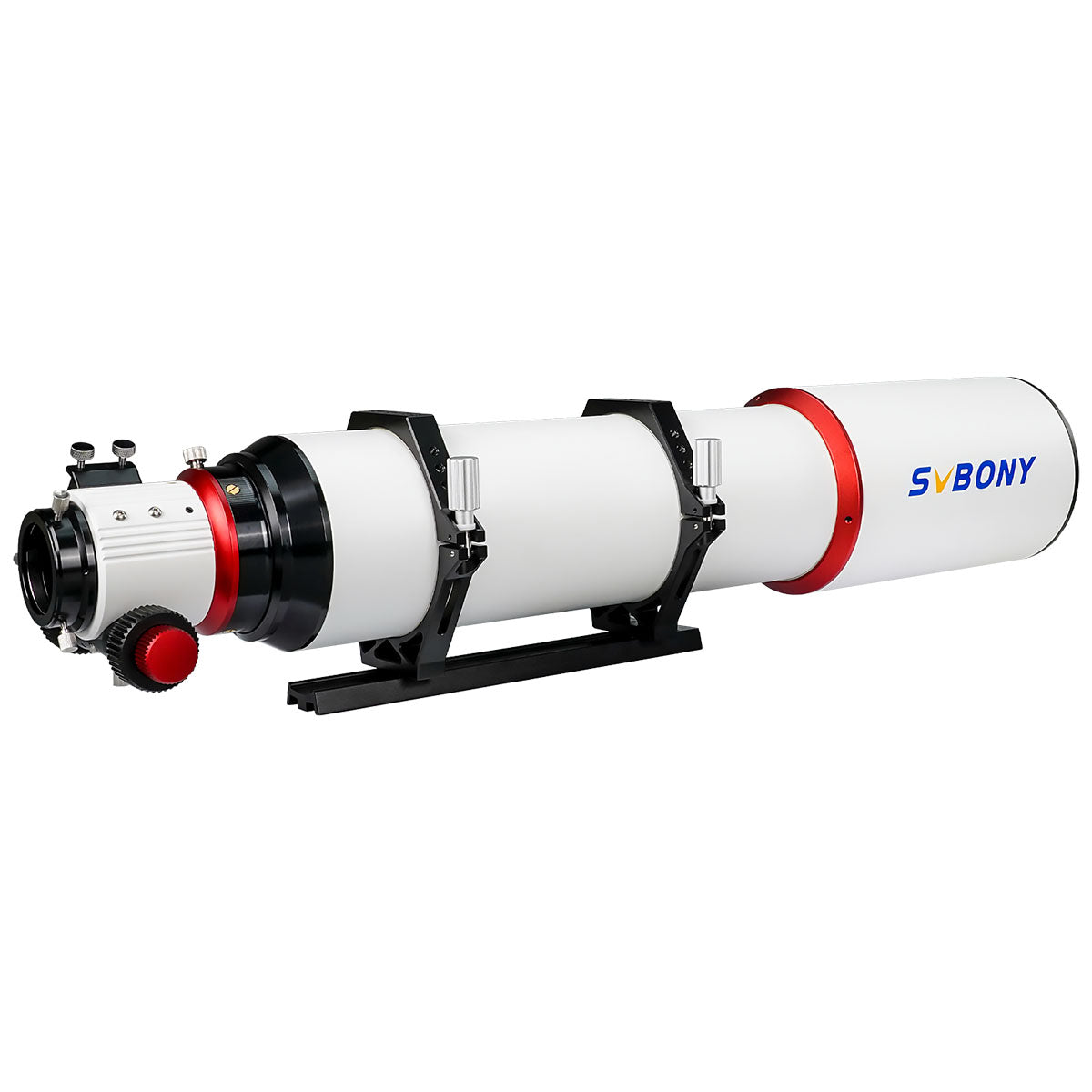

Svbony SV550 ED 122mm F7 Triplet APO Refractor Telescope

  • $1,599.99
    Unit price per

  • The SV550 APO refractor is a compact refractor with 122mm aperture; f/7 focal ratio and 854mm focal length; a great travel telescope for astrophotography and observation; the OTA weighs 6.44kg/ 14.18lb; easy to carry out when fitting into the carrying case
  • The APO refractor features a 122mm aperture which gathers more light; and offers more clear and detailed images; suitable for deep sky photography and observation; and even some fainter deep sky objects; due to the higher limiting magnitude

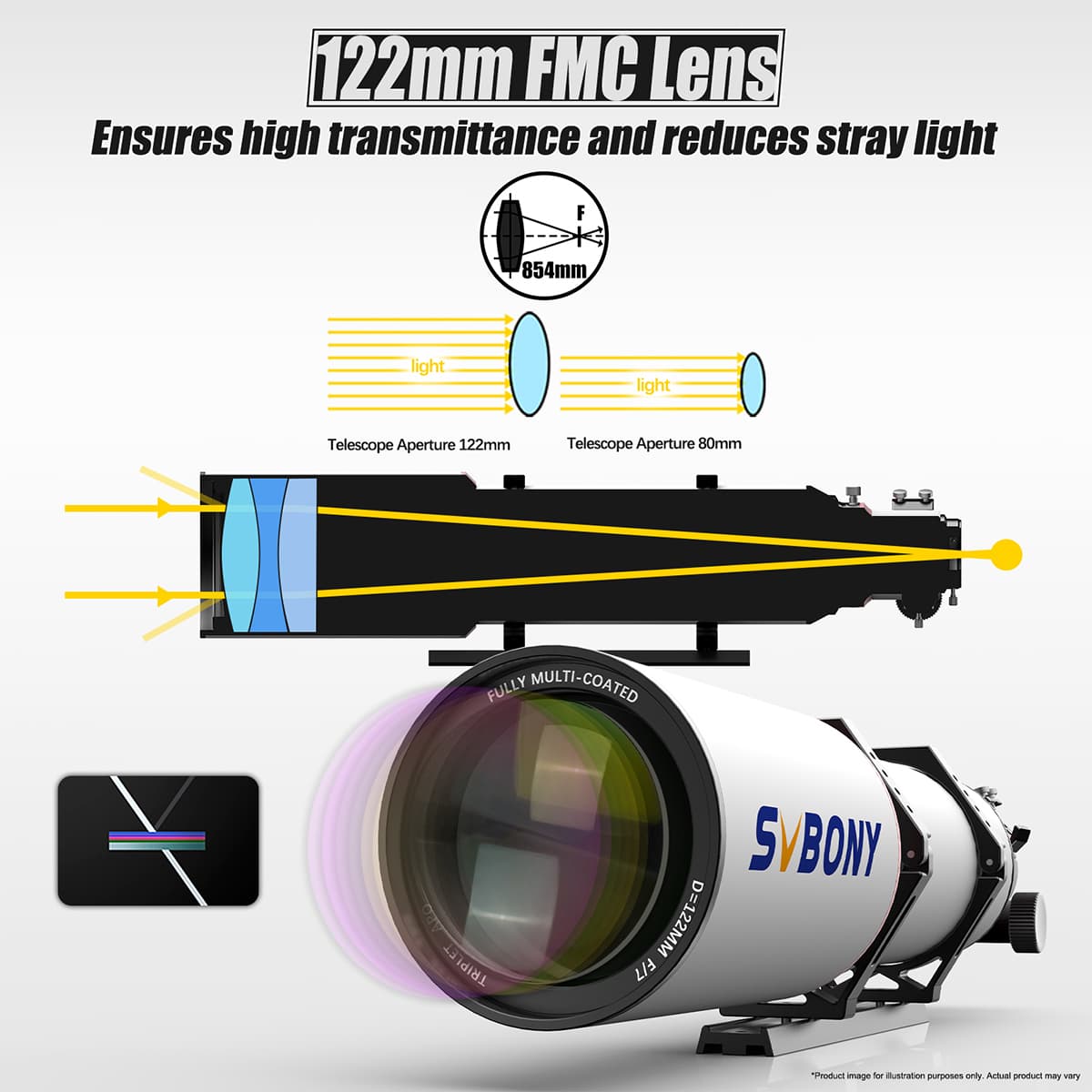

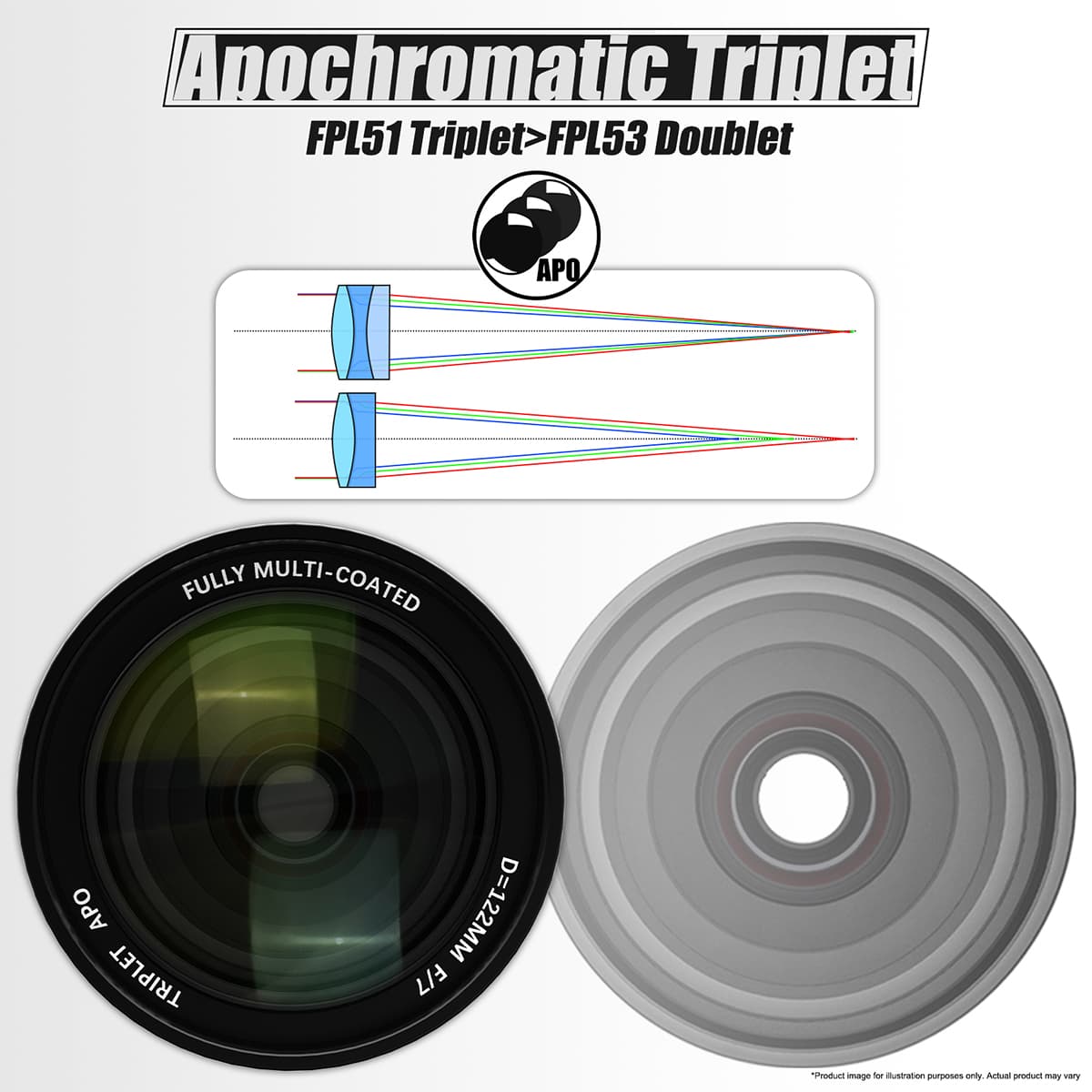

  • The SV550 122mm adopts a FPL-51 triplet apochromatic lens structure which contains one piece of ED glass; the triplet lens provides better correction of aberration and greatly reduces chromatic aberration and enhance the clarity and sharpness

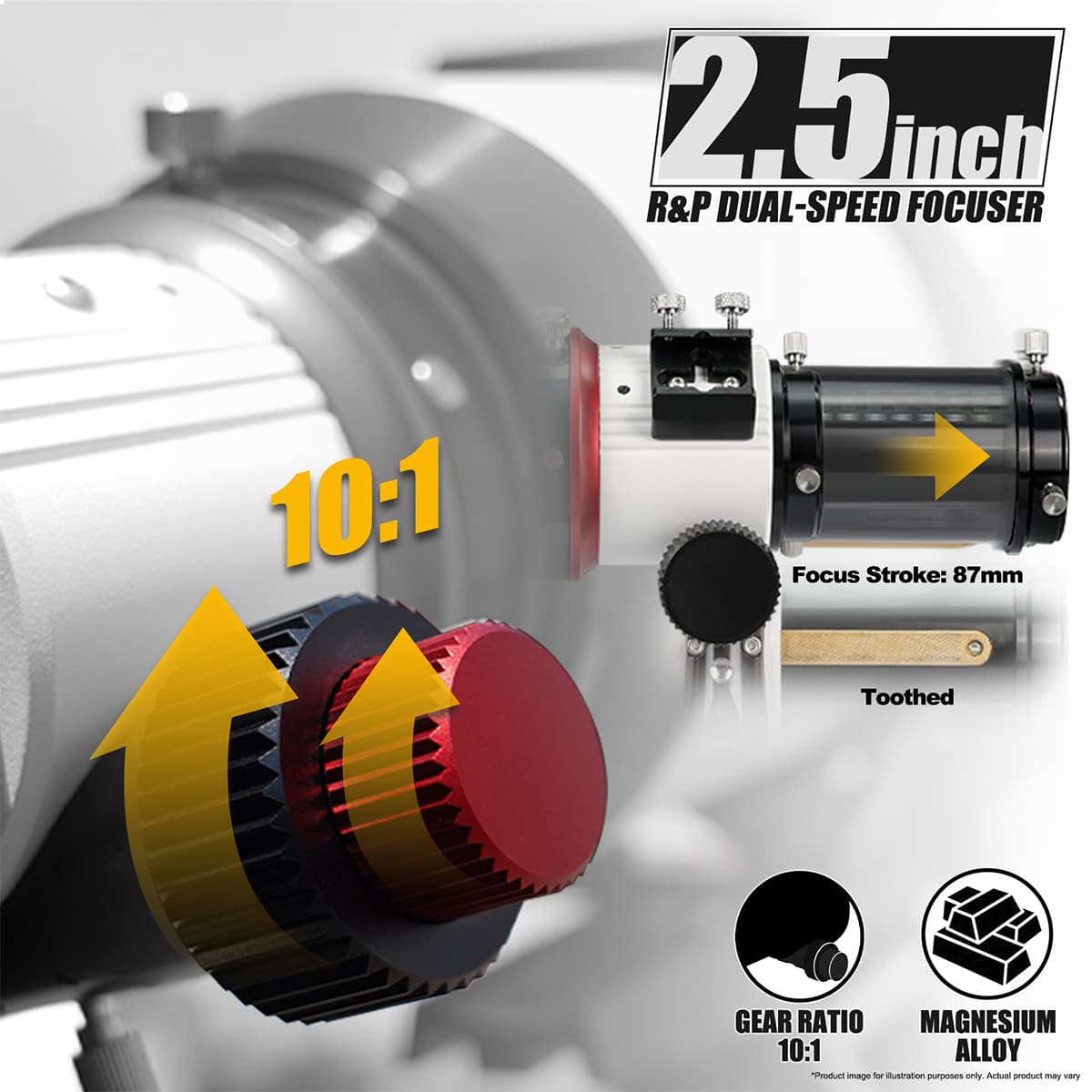

  • The gear ratio of the dual speed 2.5-inch toothed focuser is 1: 10; which makes it easy to achieve accurate focus; the dual speed focuser can provide two focusing speeds by using a set of co-axial knobs; for fast focusing and fine focusing

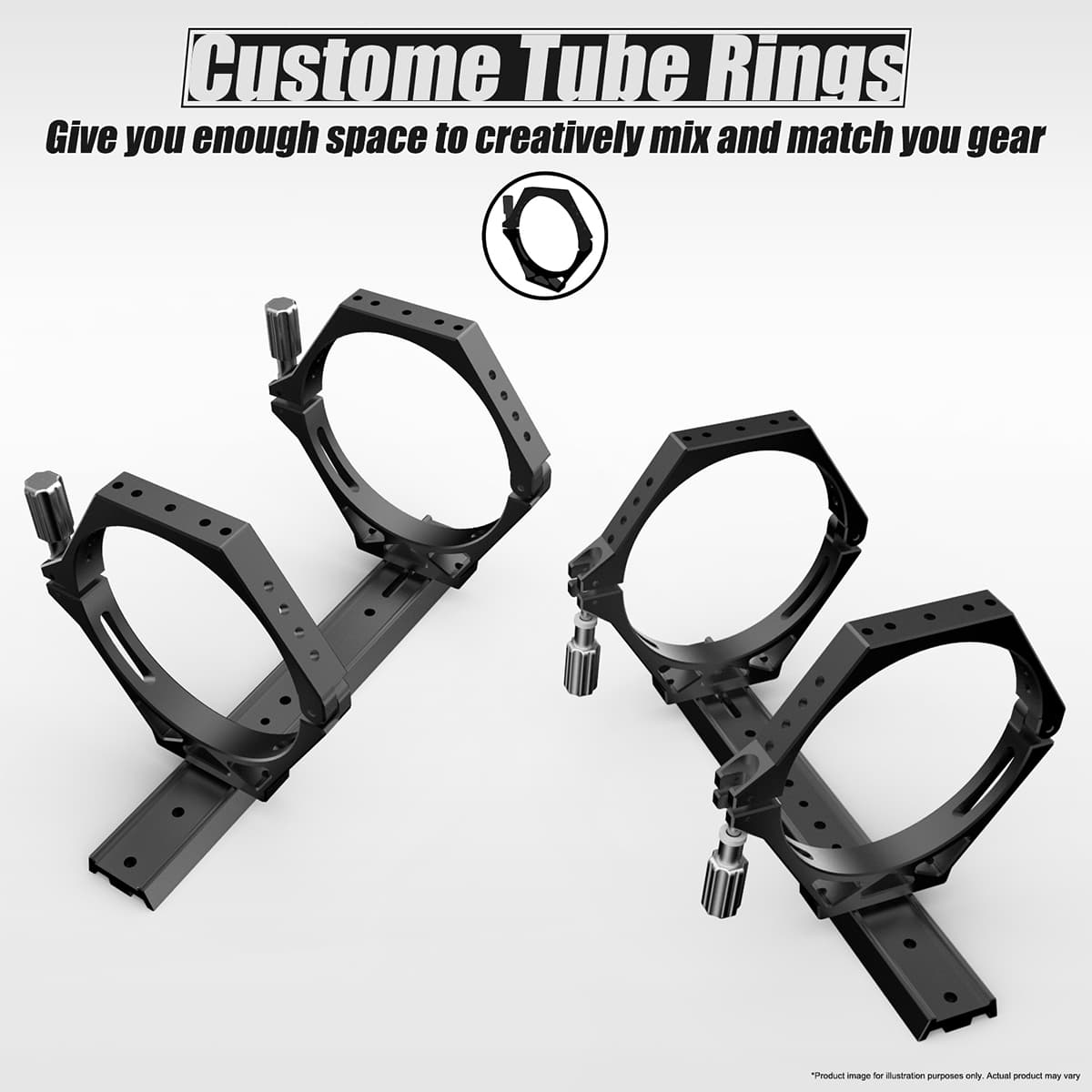

  • The entire tube rings have 26 screw holes plus a mounting screw handle. Such tube rings with so many screw holes can be compatible with more equipment installations, like Smart WIFI device, guide scope, astronomy camera etc., meeting various needs of installations.

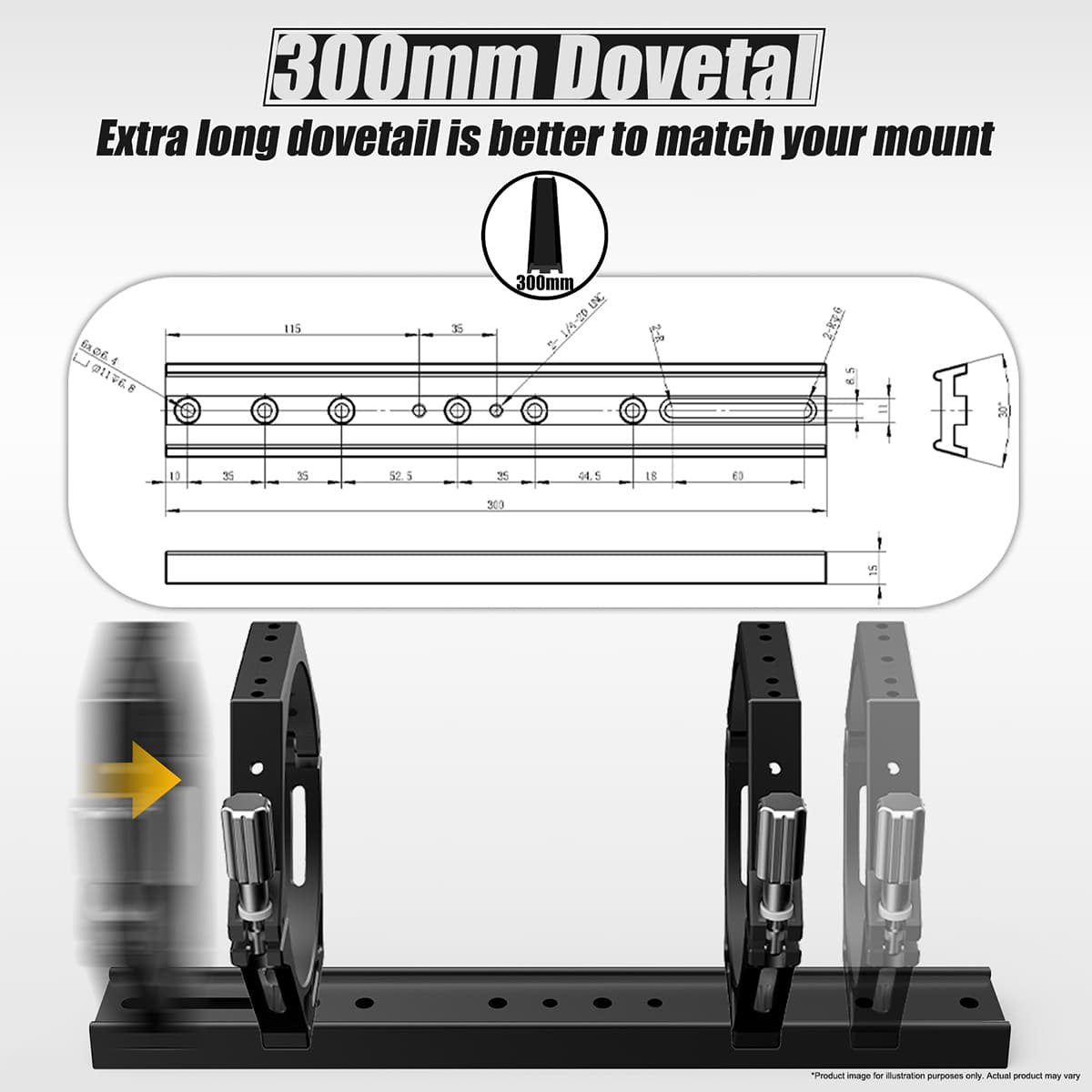

  • The length of the dovetail is as high as 300mm; it can maintain the balance to the greatest extent; and it will be more convenient in the adjustment process


California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm.


Model SV550
Aperture 122mm
Focal Length 854mm
Focal Ratio f/7
ED Glass​ FPL51​
Telescope Type Refractor
Resolution 1.15 arc seconds
Coatings  FMC
Visual Limiting Magnitude 12.3
Lens Design  Apochromatic​
Dovetail Plate Length 300mm
Highest Useful Magnification  244x
Net Weight​ 6440g
Gross Weight​ 10000g
