SVBONY Medium Dovetail Clamp With a Brass Screw for Telescopes and Cameras (Red)

  • $29.99
    Unit price per


SVBONY Medium Dovetail Clamp With a Brass Screw for Telescopes and Cameras (Red)
  • The dovetail clamp allow to attach your telescope or camera to tripods; especially suited for building double connections where a high load capacity is needed
  • 7 holes are available; 5 holes for M6 with 1/4" screws;2  holes for M8;allow connecting to almost all surfaces

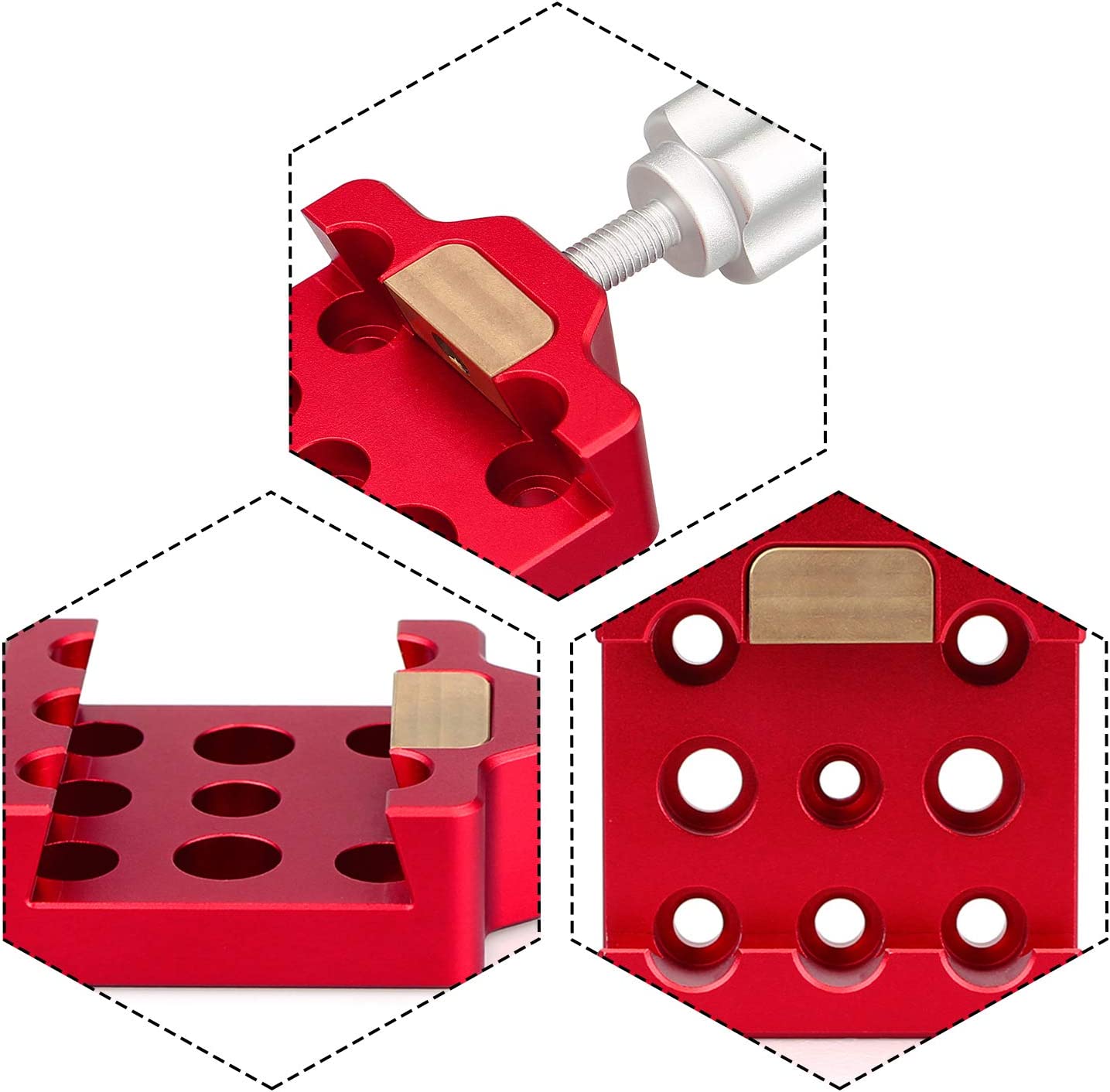

  • Areal clamping with brass locking screws protects the accessories and provides a very stable connection

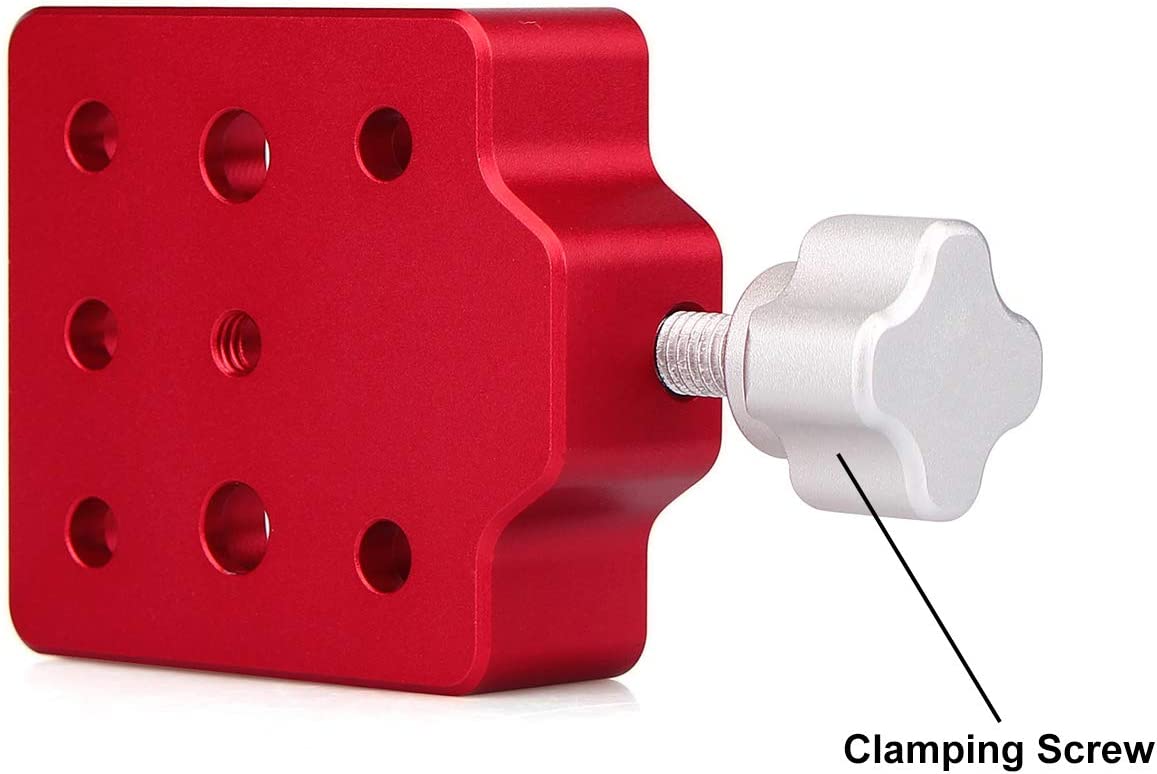

  • The clamping screw are completely kept clamping can be used without problems
  • All-aluminium dovetail clamp massively built;no twisting; High load capacity up to approx 10 kg





Connect Accessories

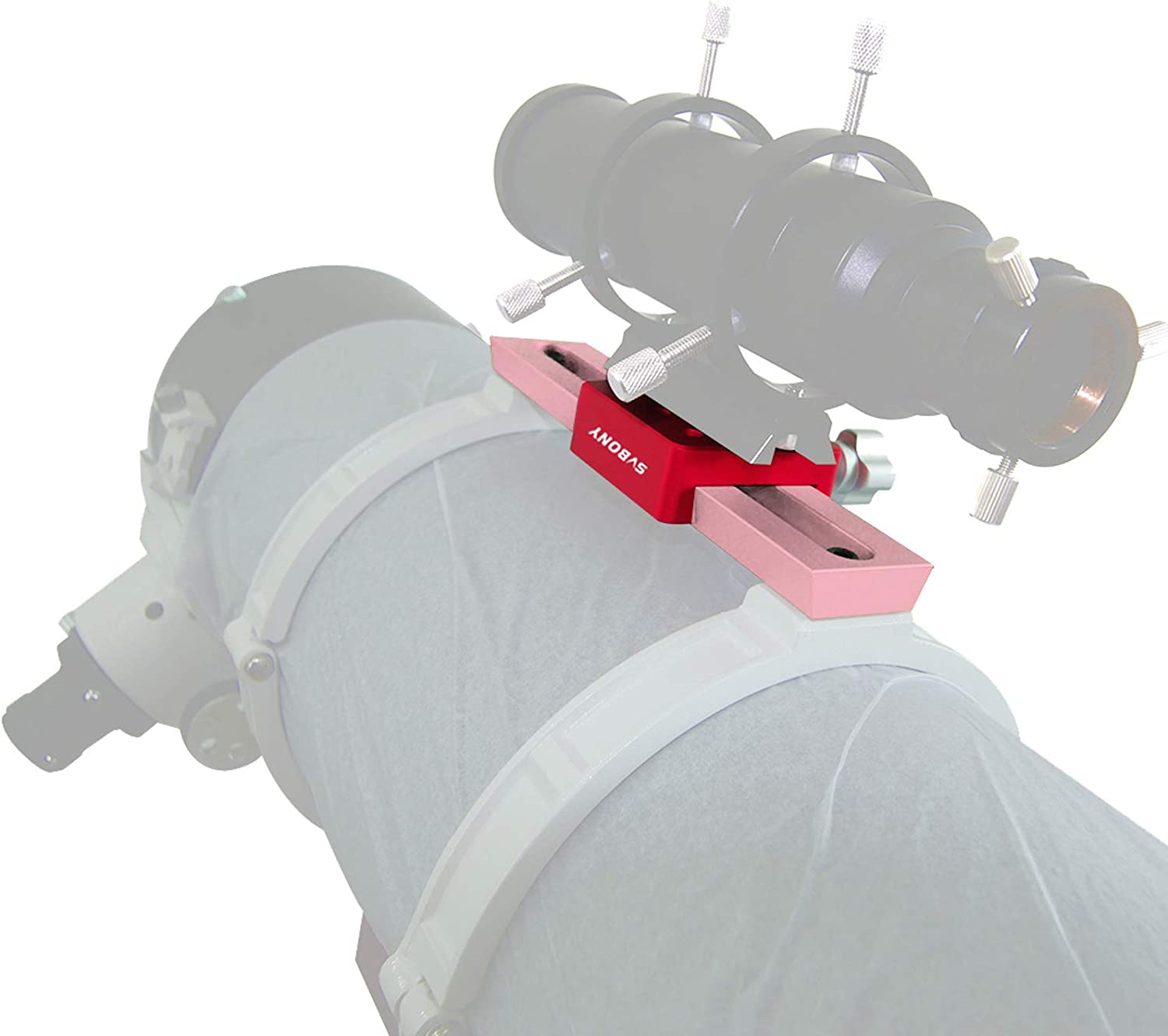

The dovetail clamp allow to attach your telescope or camera to tripods

The clamp itself can be adapted to a mount to the counterweight shaft or another dovetail bar building a double connection


Widely Used

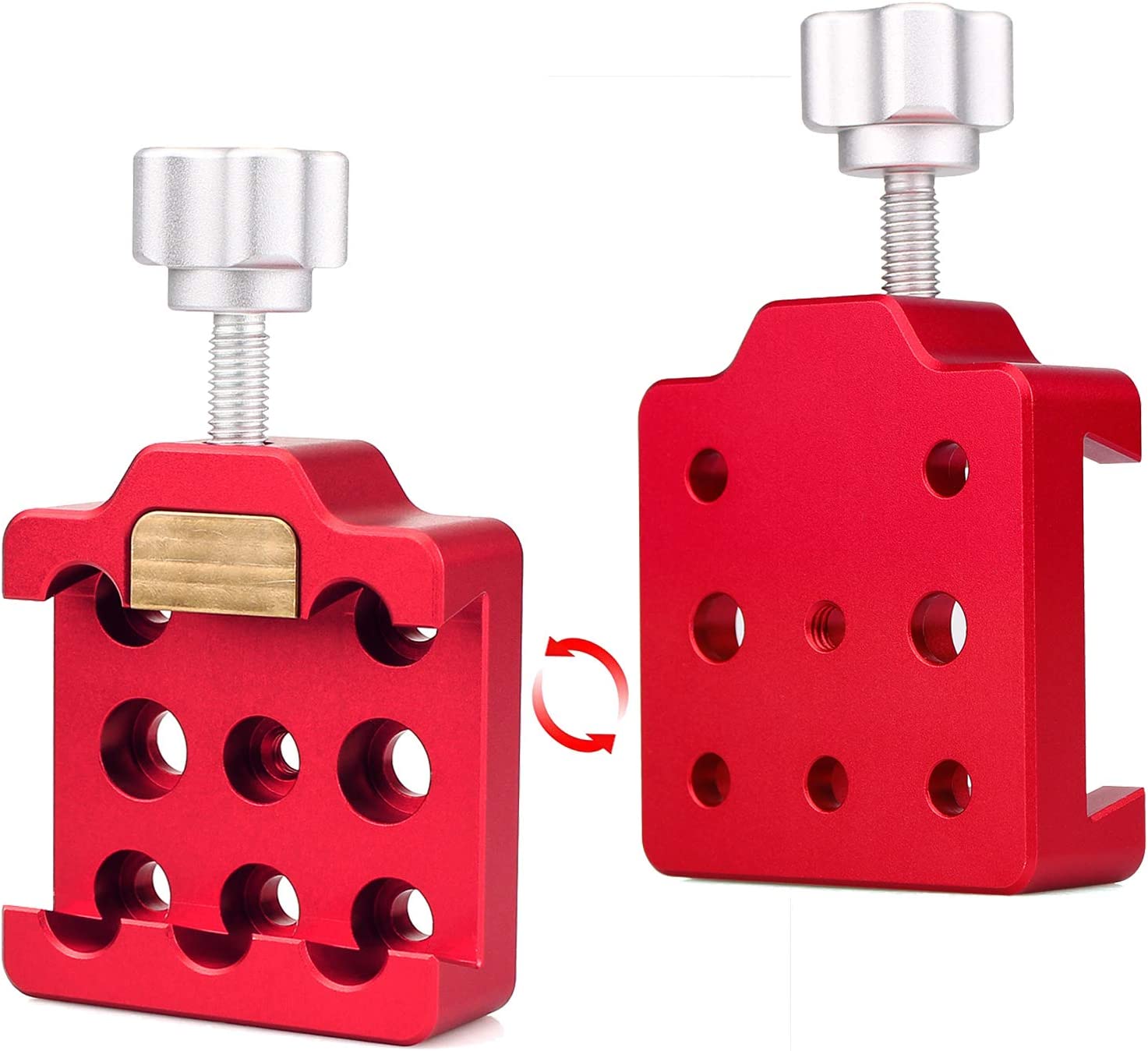

5 holes for M6,2 holes for M8,2 holes for 1/4,which allows to connect almost all surfaces,such as tripod, telescope, camera, finder scope,guider,etc




All-aluminium dovetail clamp massively built;High load capacity up to approx 10 kg





Areal clamping with brass locking screws protects the accessories and provides a very stable connection





Big nut make the clamp dovetail twist by hand easily



Loading Weight: 10kg

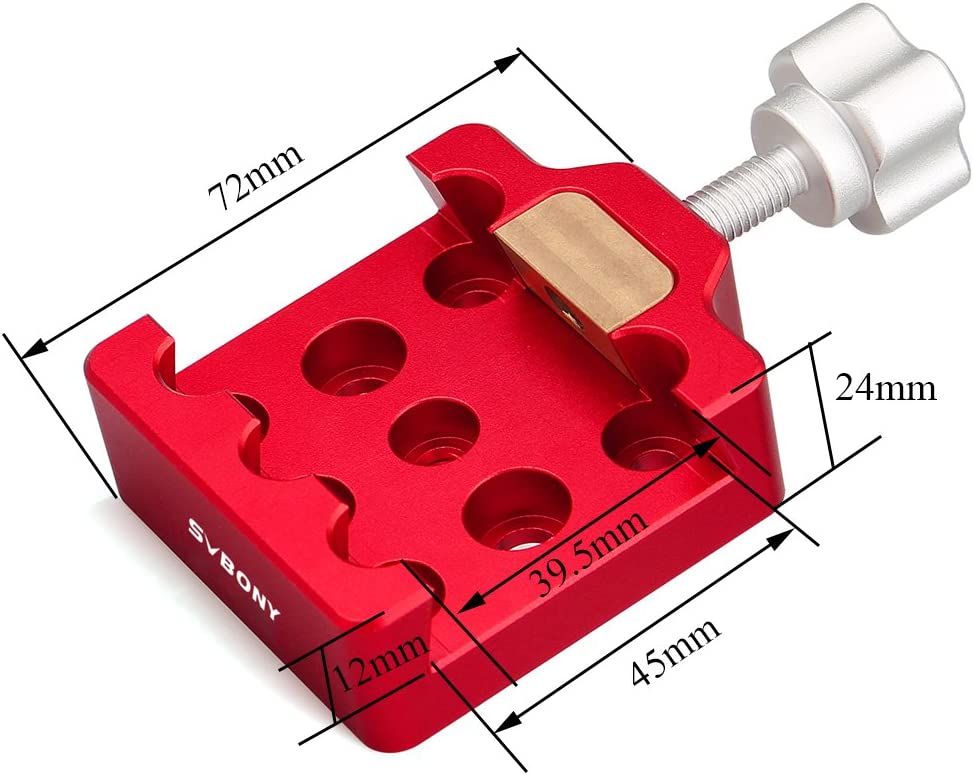

Dovetail Upside: 39.5mm
Dovetail Downside: 45mm
Dovetail Depth: 12mm
Material: Aluminum alloy
M8 Pitch: 35mm

M6 Pitch: 19mm, 35mm
Color: Red
Net Weight: 193g/6.83oz

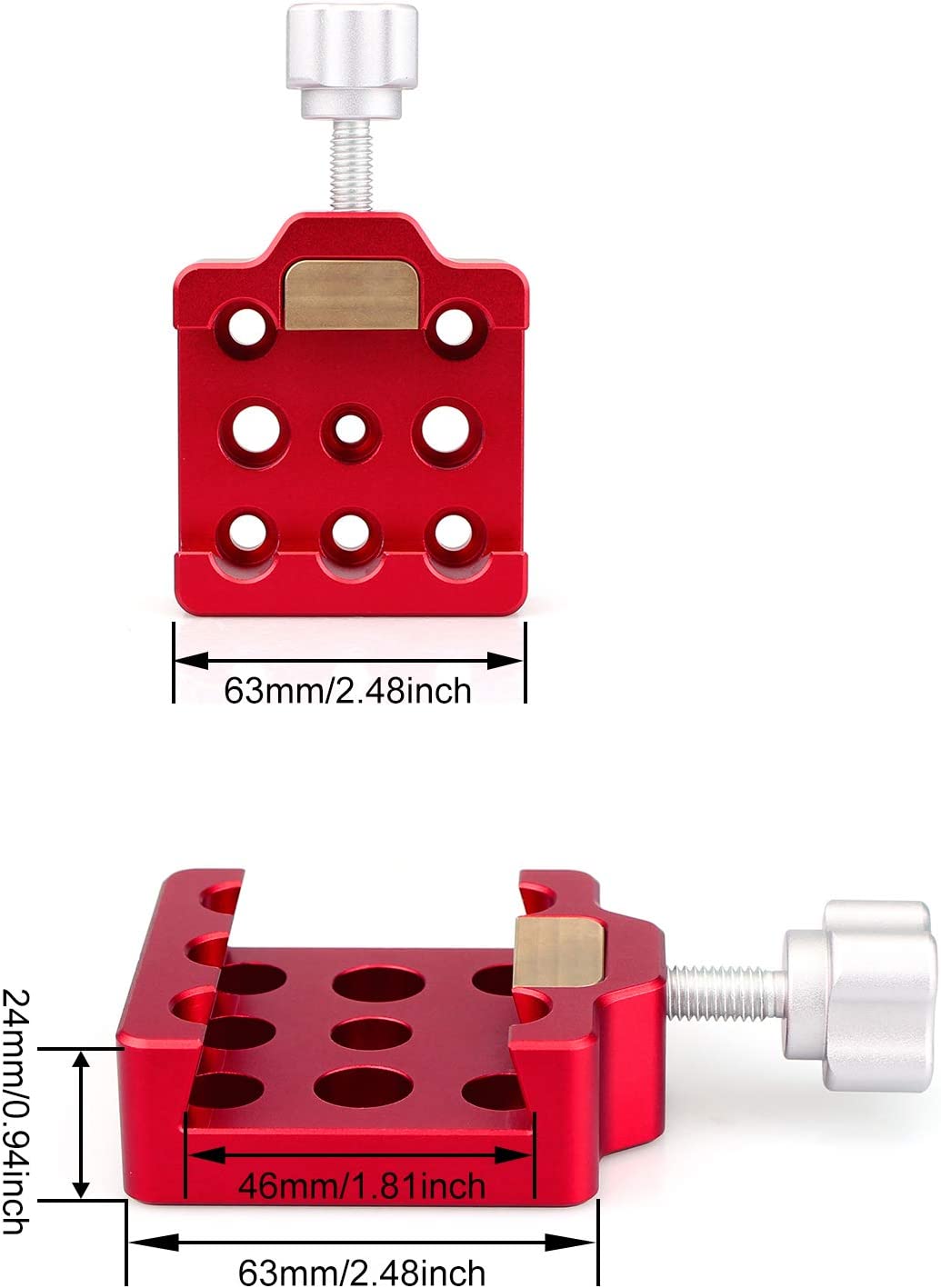

Dimensions: 72x63x24mm (without screw)
Package Includes: 1 x All-Aluminum Dovetail Clamp



  • Dovetail clamp
  • Thumb screw
