Svbony Fully Metal Dovetail Base and Mounting Plate Set for Finder Scopes

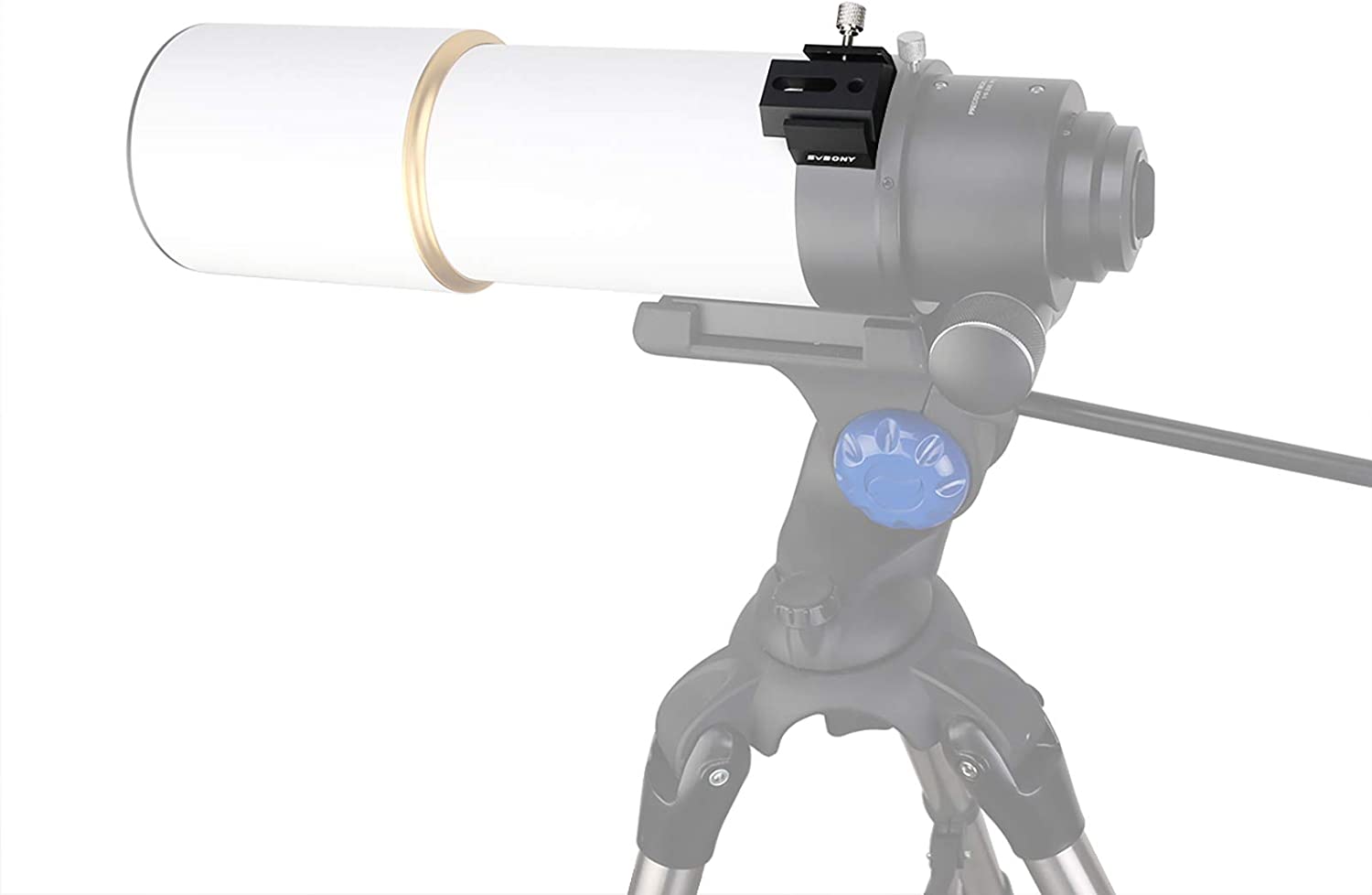

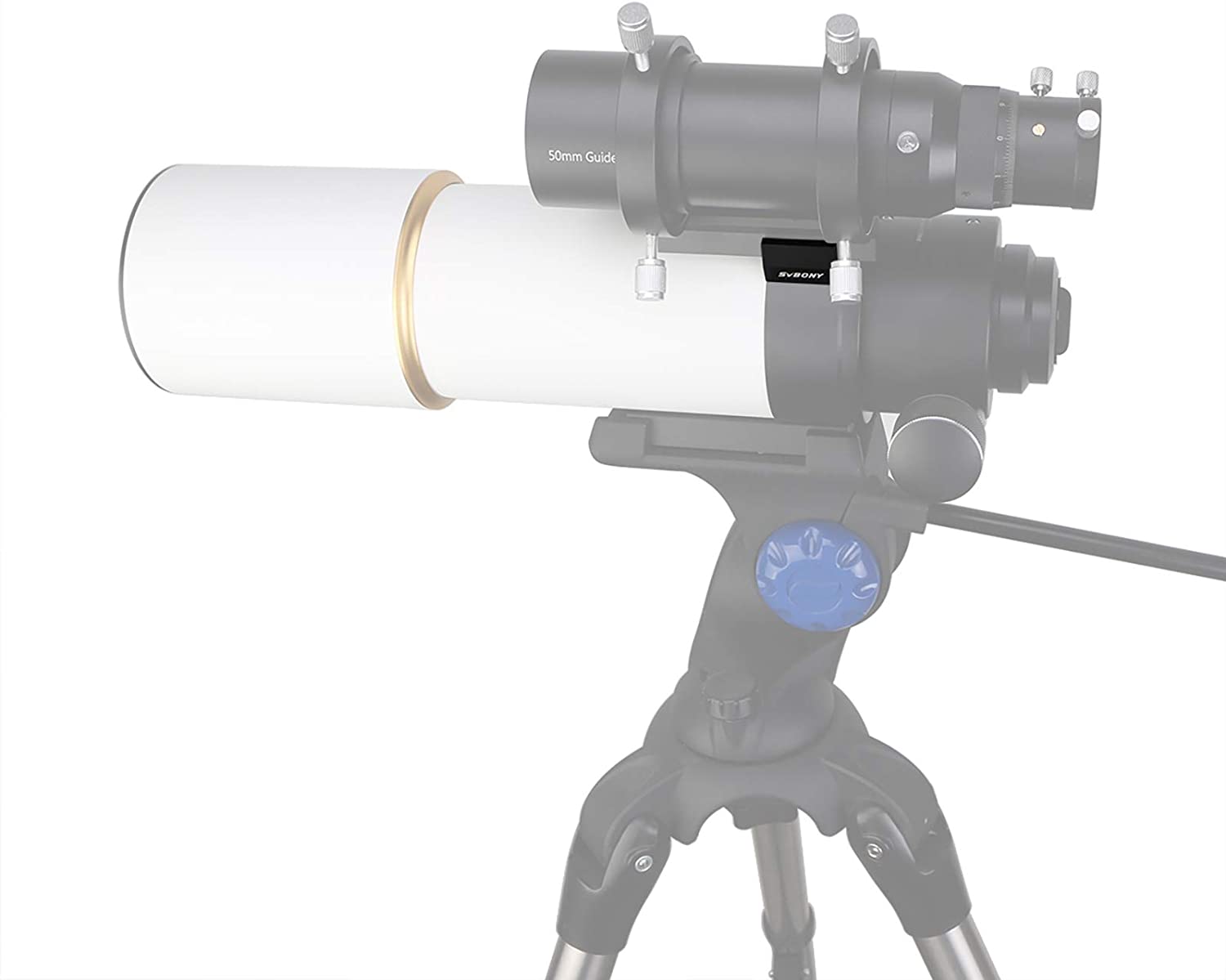

- Compliable with finder scope, reflex sight bracket on telescopes, great for adding a second or third aiming device to your telescope
- Dovetail base fit for most bracket designs from Celestron, Orion, Sky-watcher, Vixen etc., compliable with finder scope, laser Pointer bracket on telescopes
- SVBONY finder scope bracket base, dovetail board set solid all metal construction

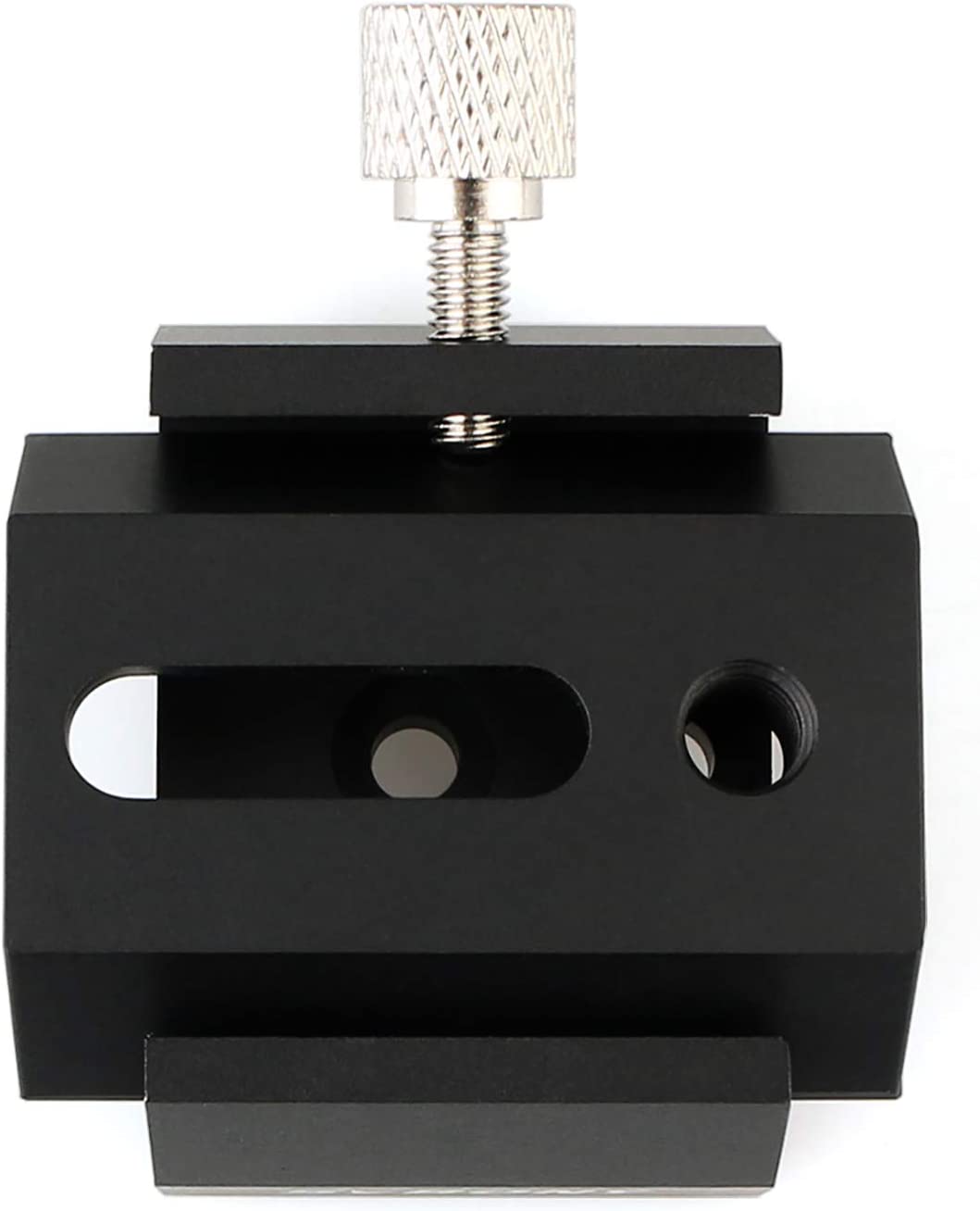

- All metal finder scope bracket base for your optical finder scope that comes with the standard quick release dovetail board

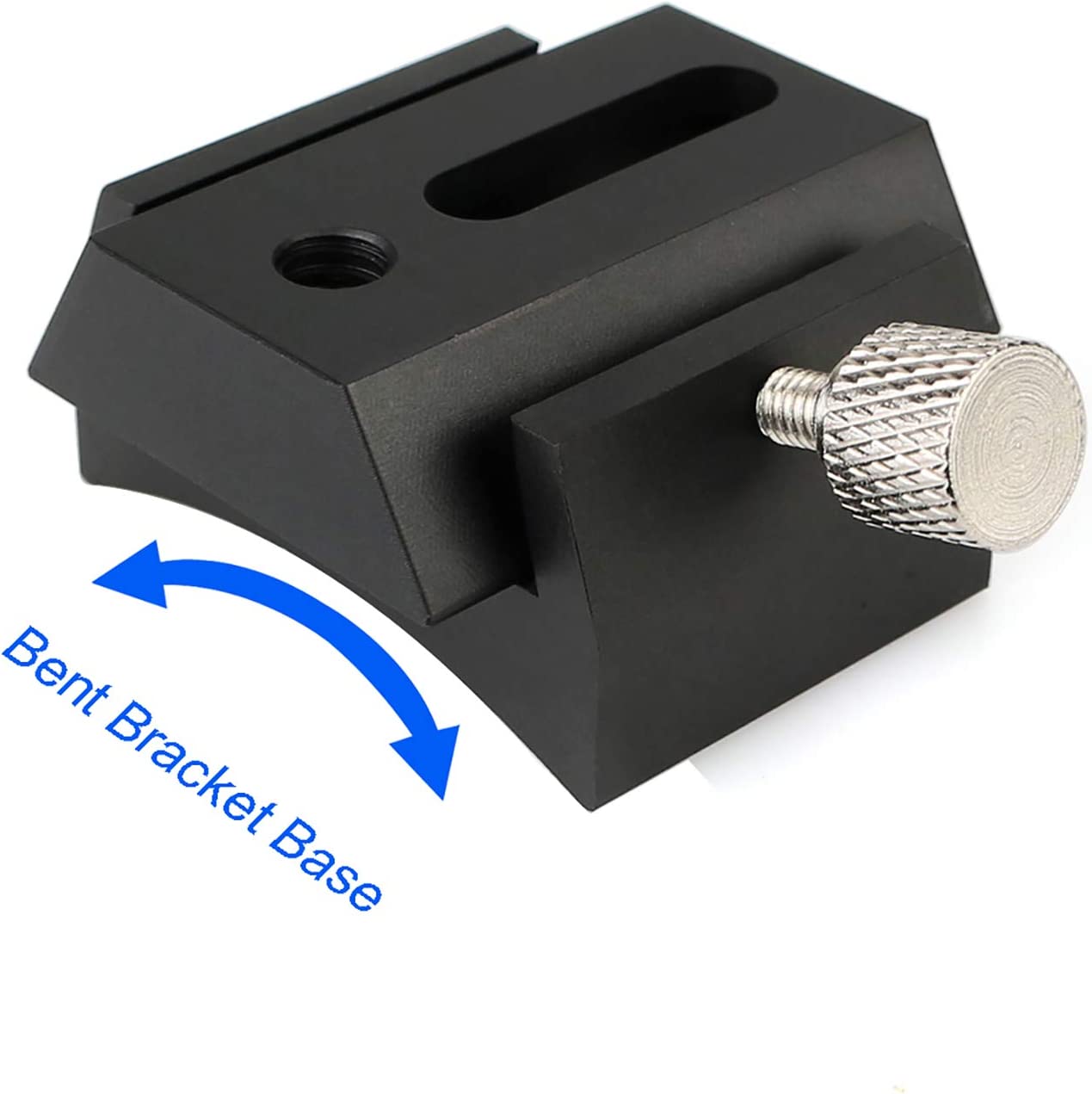

- It is cambered on the bottom of base, so it can fit and protect the tube very well
Description
SVBONY Fully Metal Bracket Base Shoe + 42mm Dovetail UNC 1/4-20 Mounting for Optical Telescope Finderscope
An all metal finderscope bracket base for your optical finderscope that comes with the standard quick release dovetail board. It is cambered on the bottom of base. So it can fit and protect the tube very well.
UNC 1/4-20 slot
UNC 1/4-20 slot, 24mm slot for maximum M6 screw,Strong applicability.
Big M4 Screw
Large screws are included, which can be adjusted with one hand. It can be used even when wearing gloves.

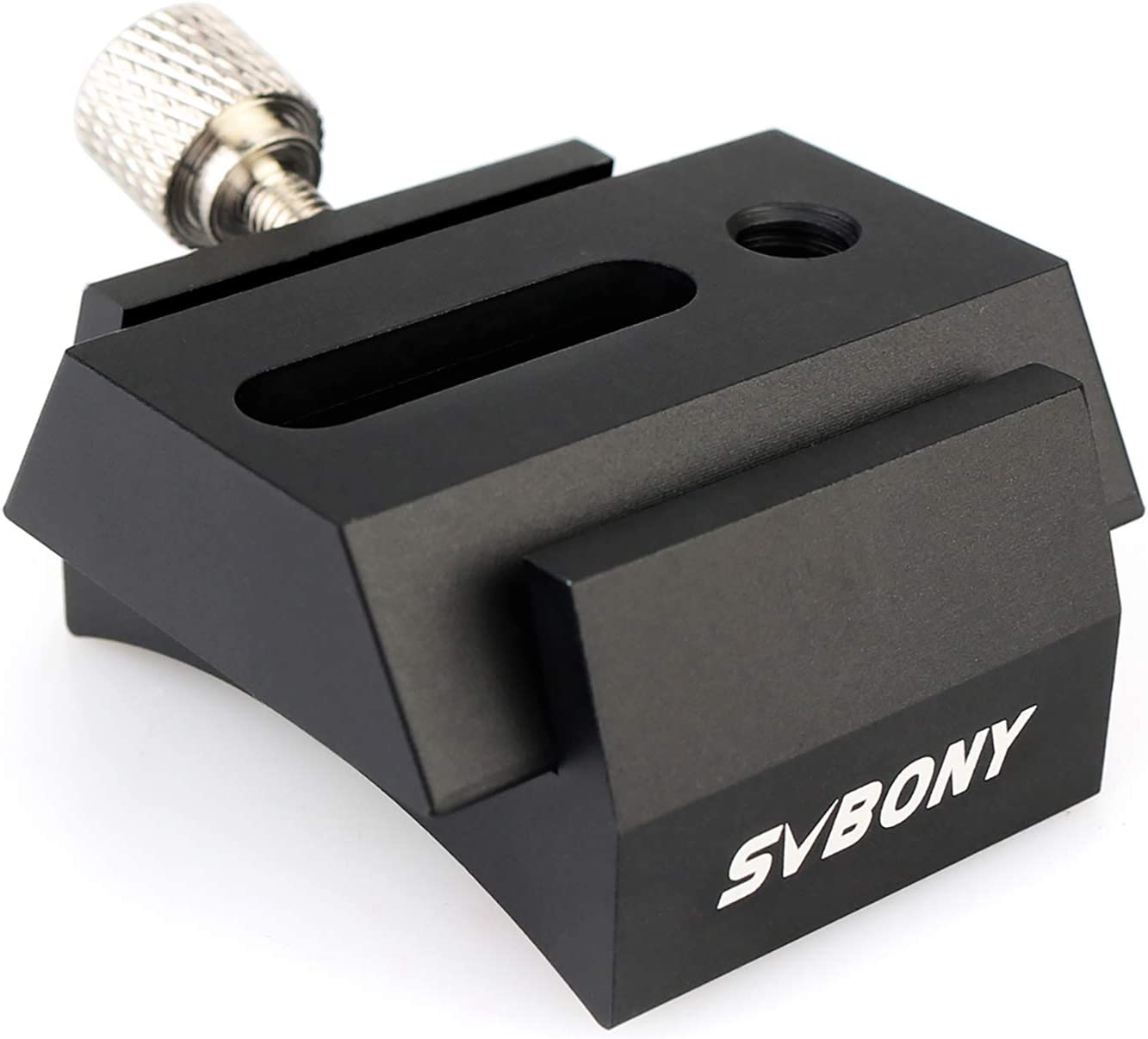

SVBONY Finderscope Bracket Base + Dovetail Board Set Solid all metal construction
The body is constructed of high quality materials; sturdy and not easy to damage.

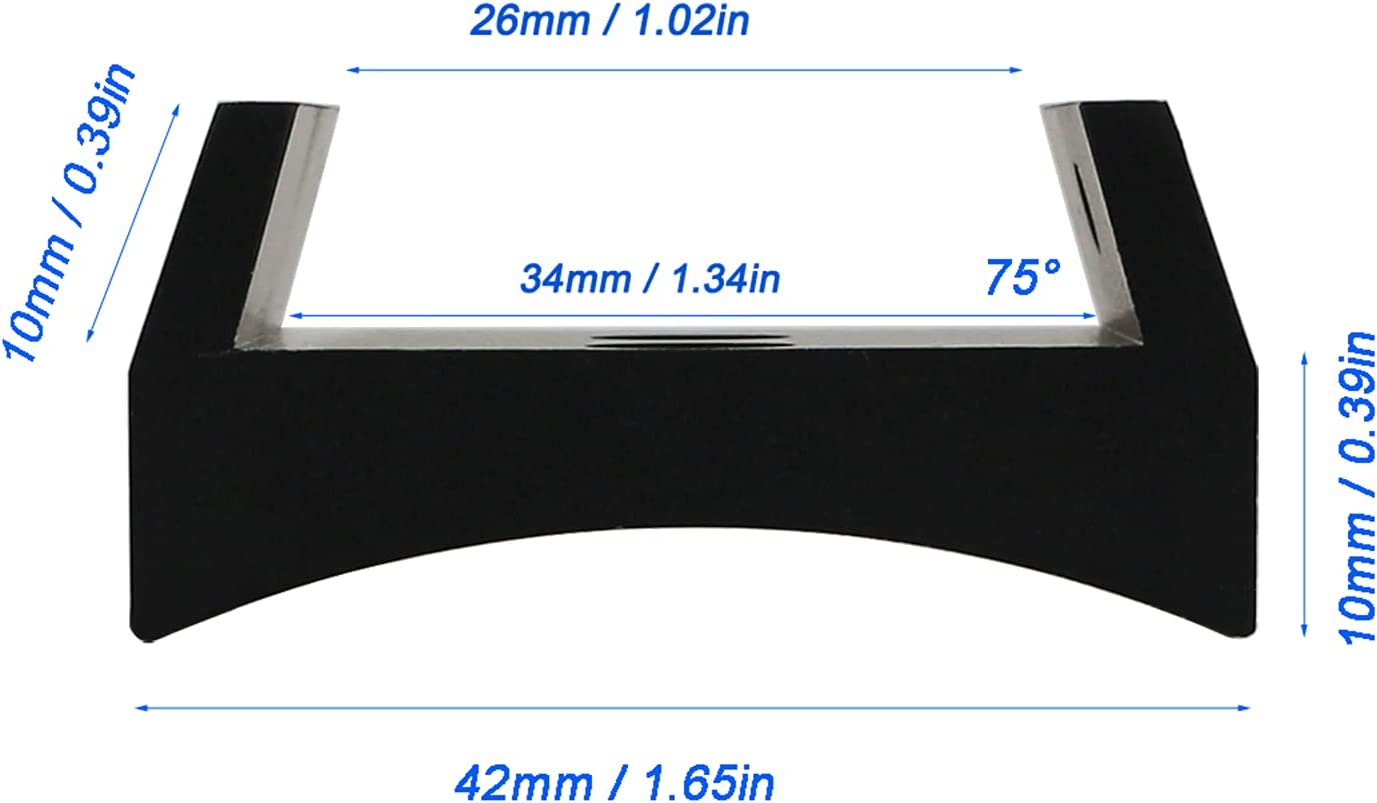

Specifications
Base Width: 42mm
Base Length: 29.5mm
Base Width of internal trapezoid (bottom):33.4mm
Base Width of internal trapezoid (top): 28.7mm
Base Height of inner part: appr. 9mm

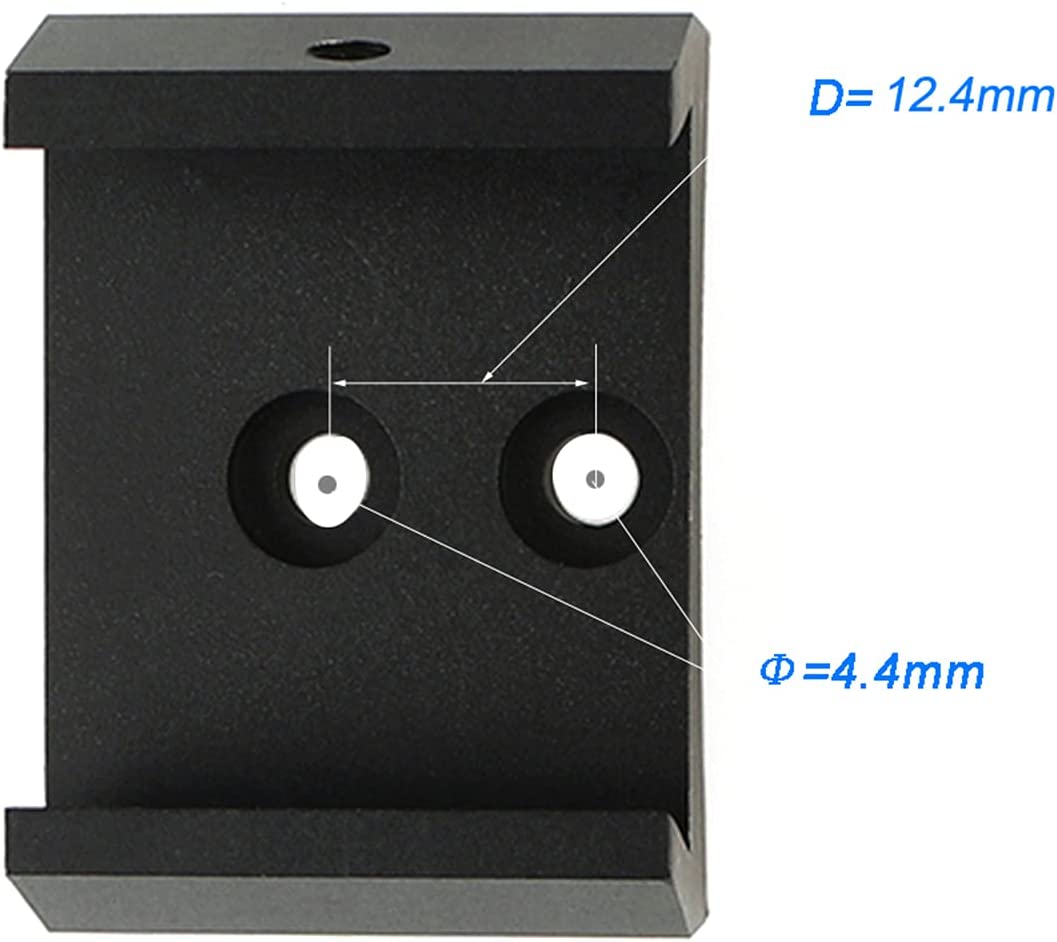

Distance of the two holes (center to center): 12mm
Holes internal diameter: 4.4mm
Curve diameter: 100mm

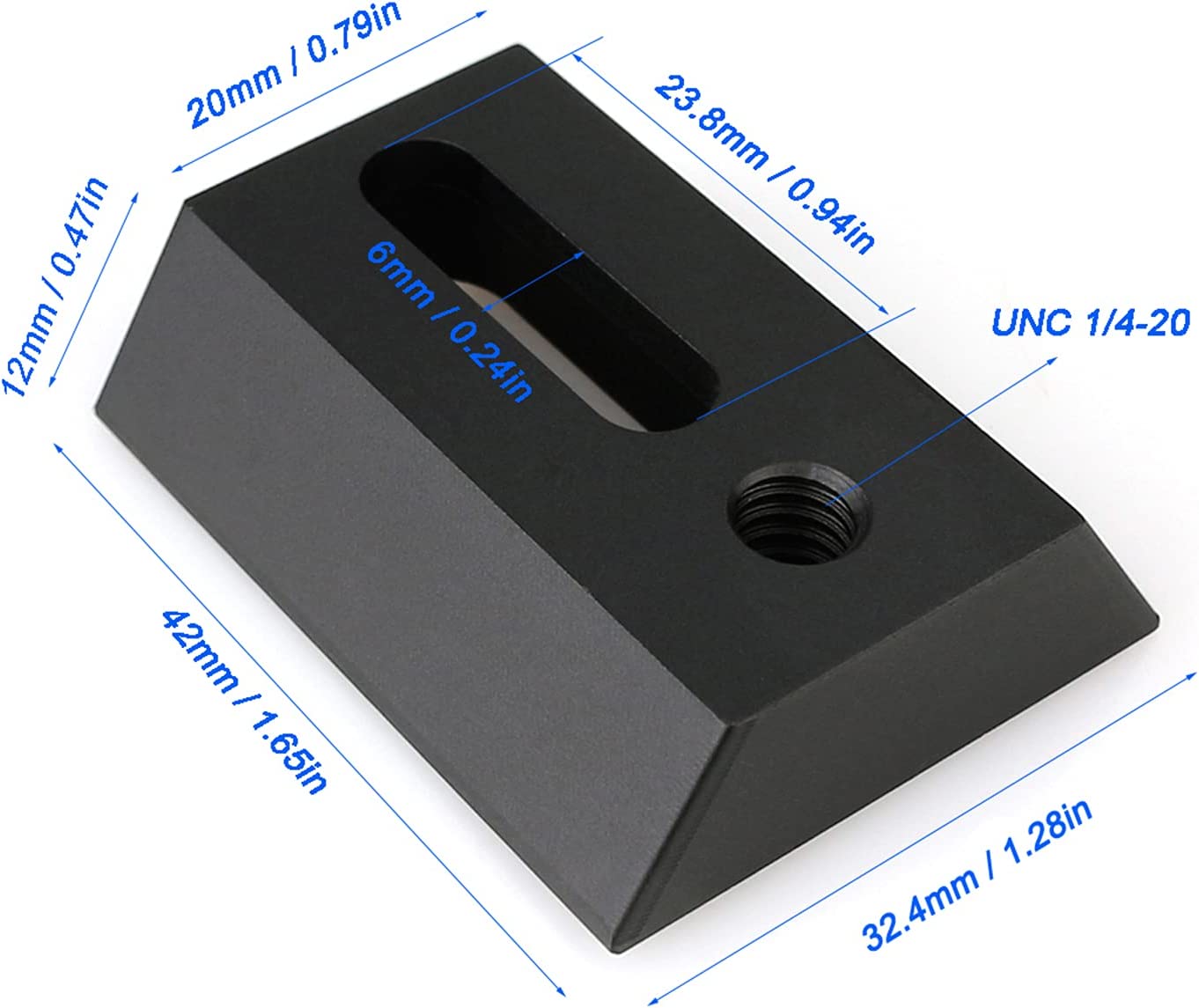

Dovetail Board Length: 42mm
Dovetail Board Width (bottom): 32mm
Dovetail Board Width (top): 20mm
Dovetail Board Height: 11mm
Net Weight: 63.4g / 2.24oz

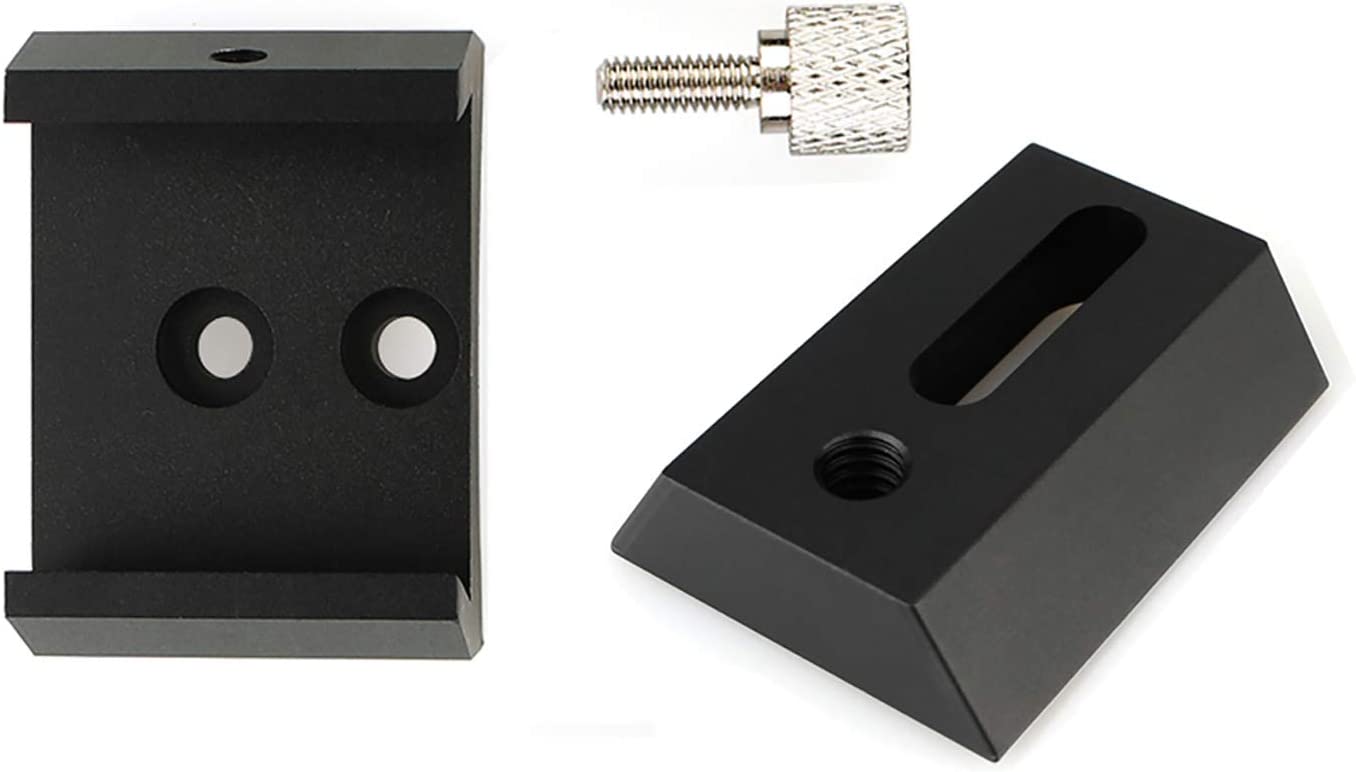

What's included
- 1 x Dovetail Board
- 1 x Bracket Base
- 1 x M4 Screw
