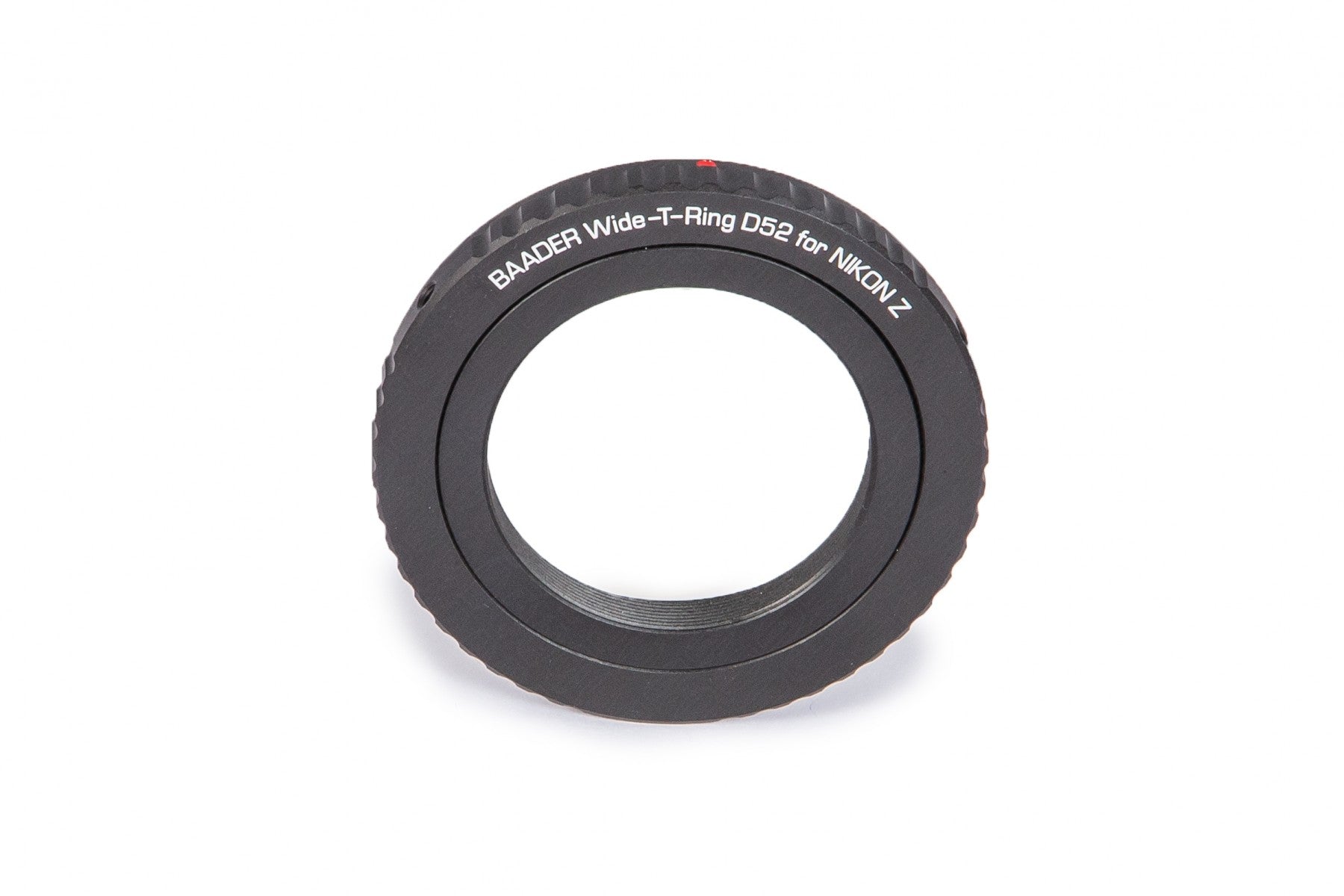

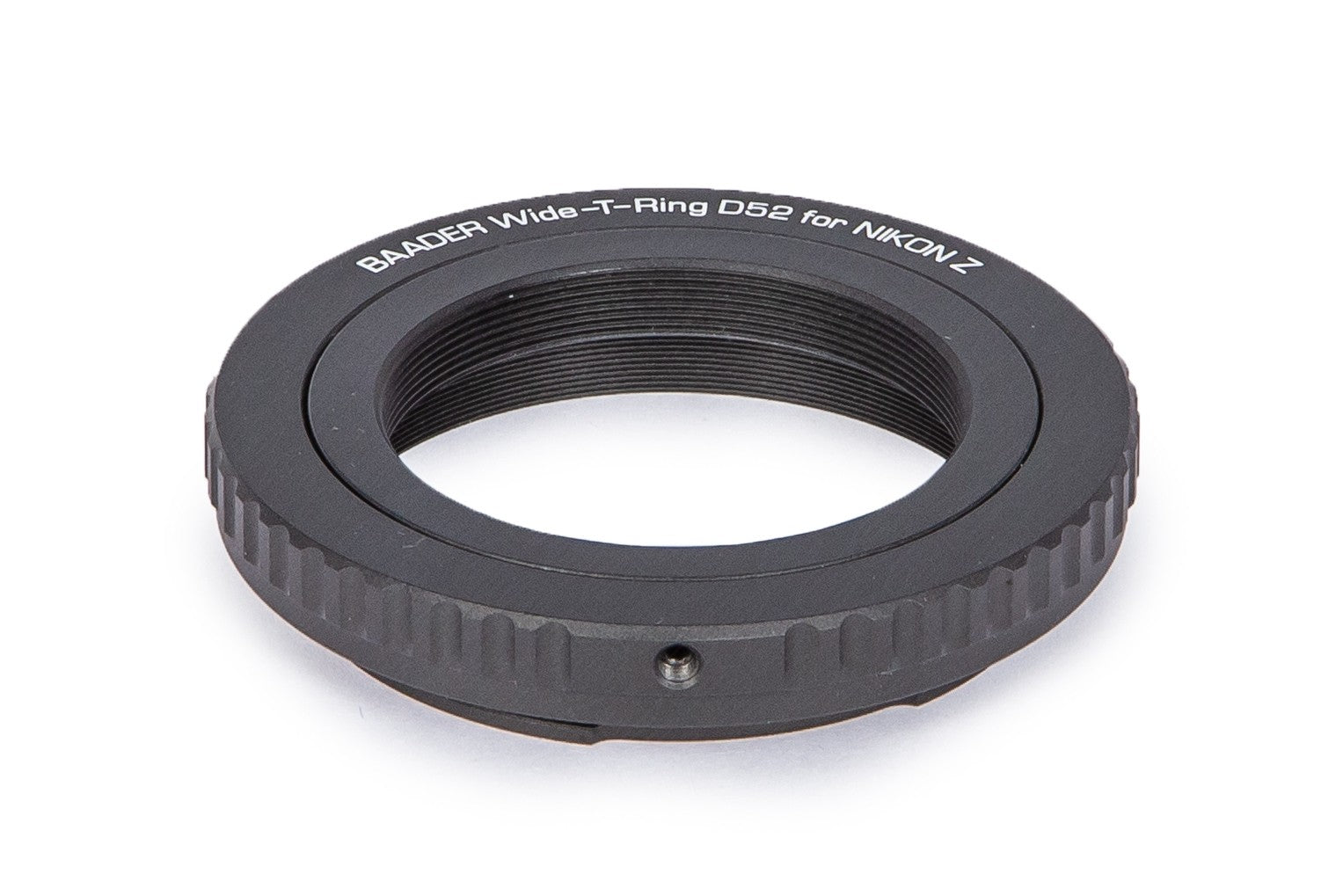

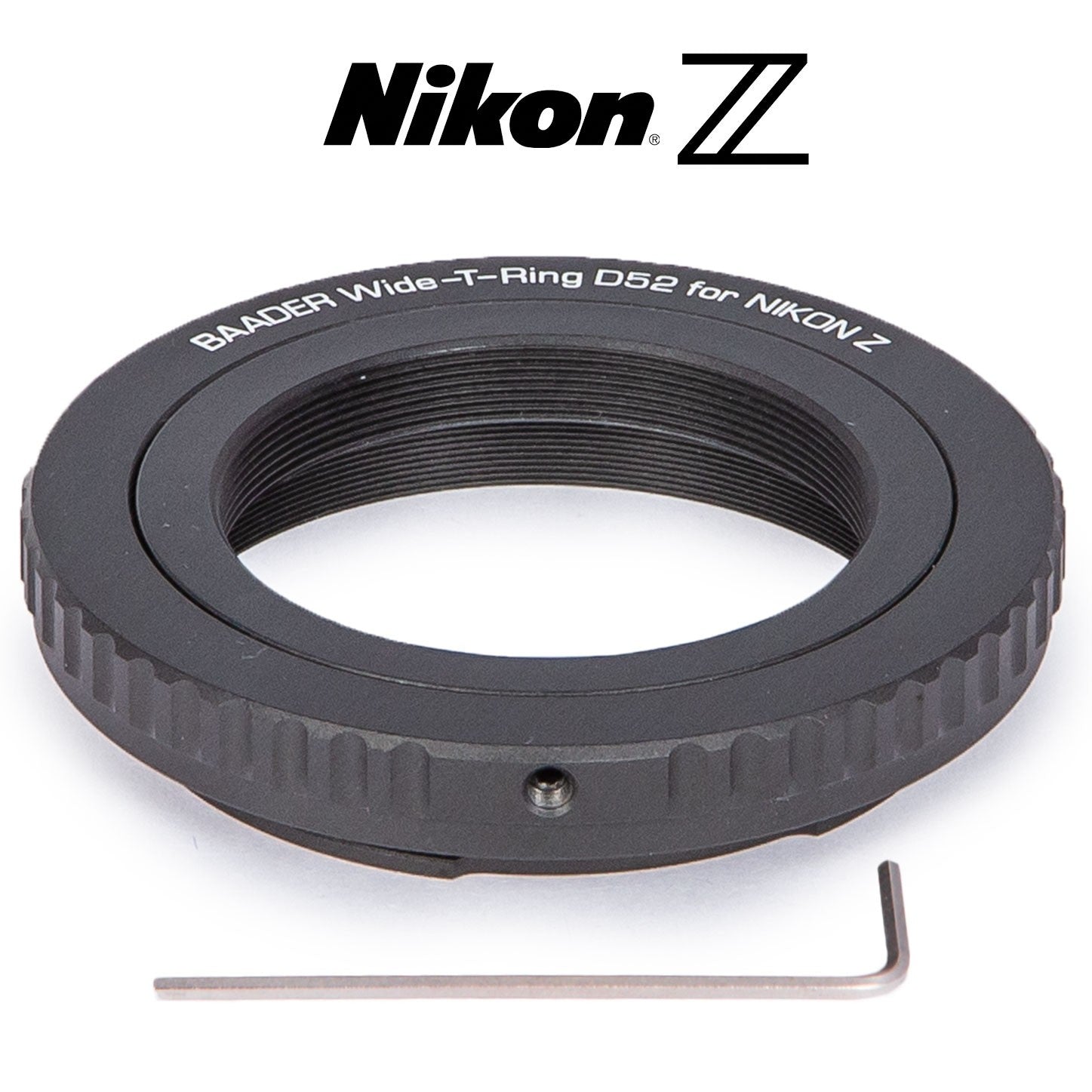

Baader Wide-T-Ring Nikon Z (for Nikon Z bajonet) with D52i to T-2 and S52

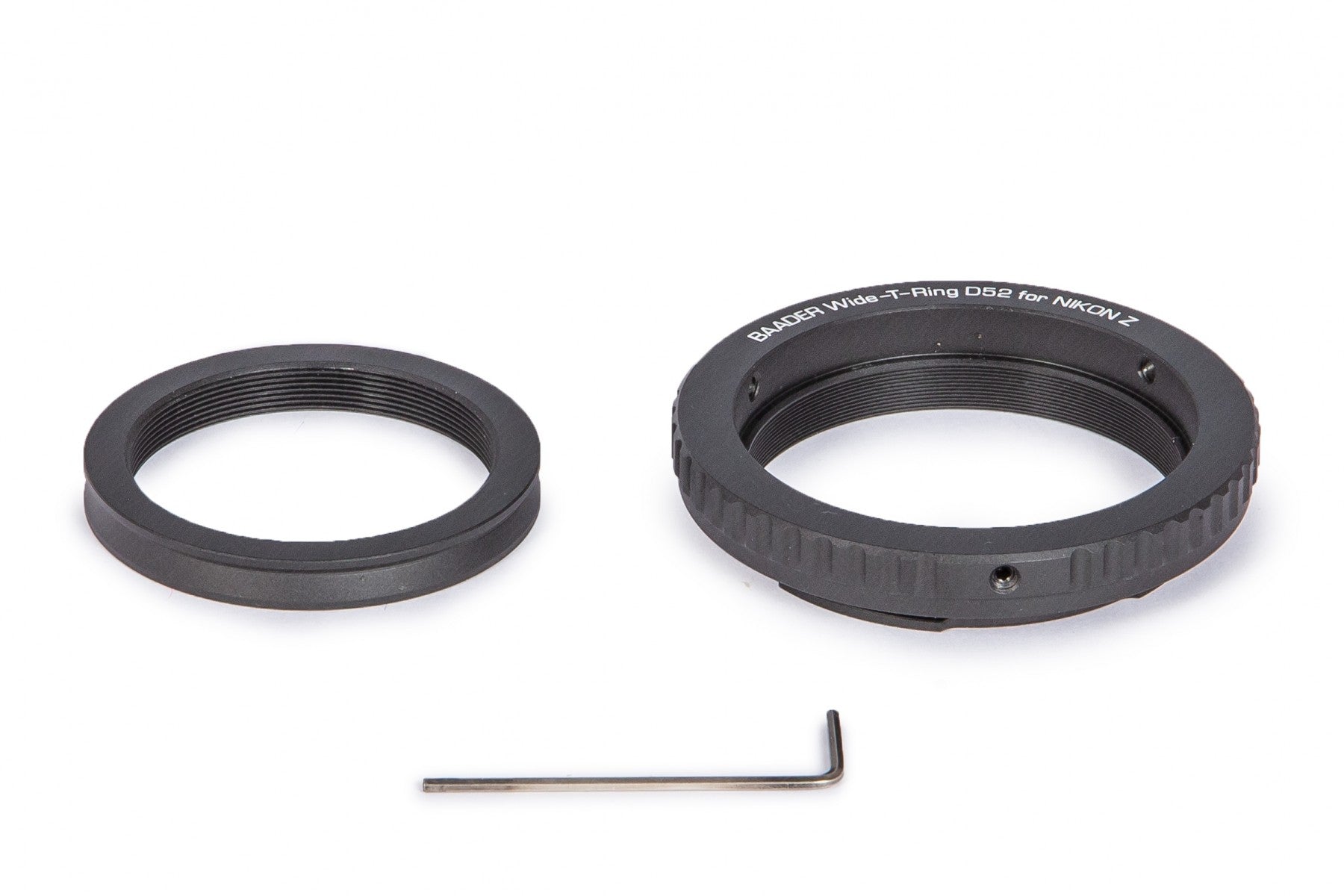

- What's included
- Baader Wide-T-Ring Nikon Z to connect Nikon Z cameras on the Astro T-2 system and the S52 dovetail
- All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the S52 / M48 adapter #2958552, or to use the S52 barrel #2958551 without the T-2 reduction. With the S52 / M68 adapter # 2458252, the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
- All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader UFC S52 dovetail camera-adapter (#2459119), in order to change different filter sizes directly in front of the camera sensor.
- Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- On the camera side: Nikon Z bayonet

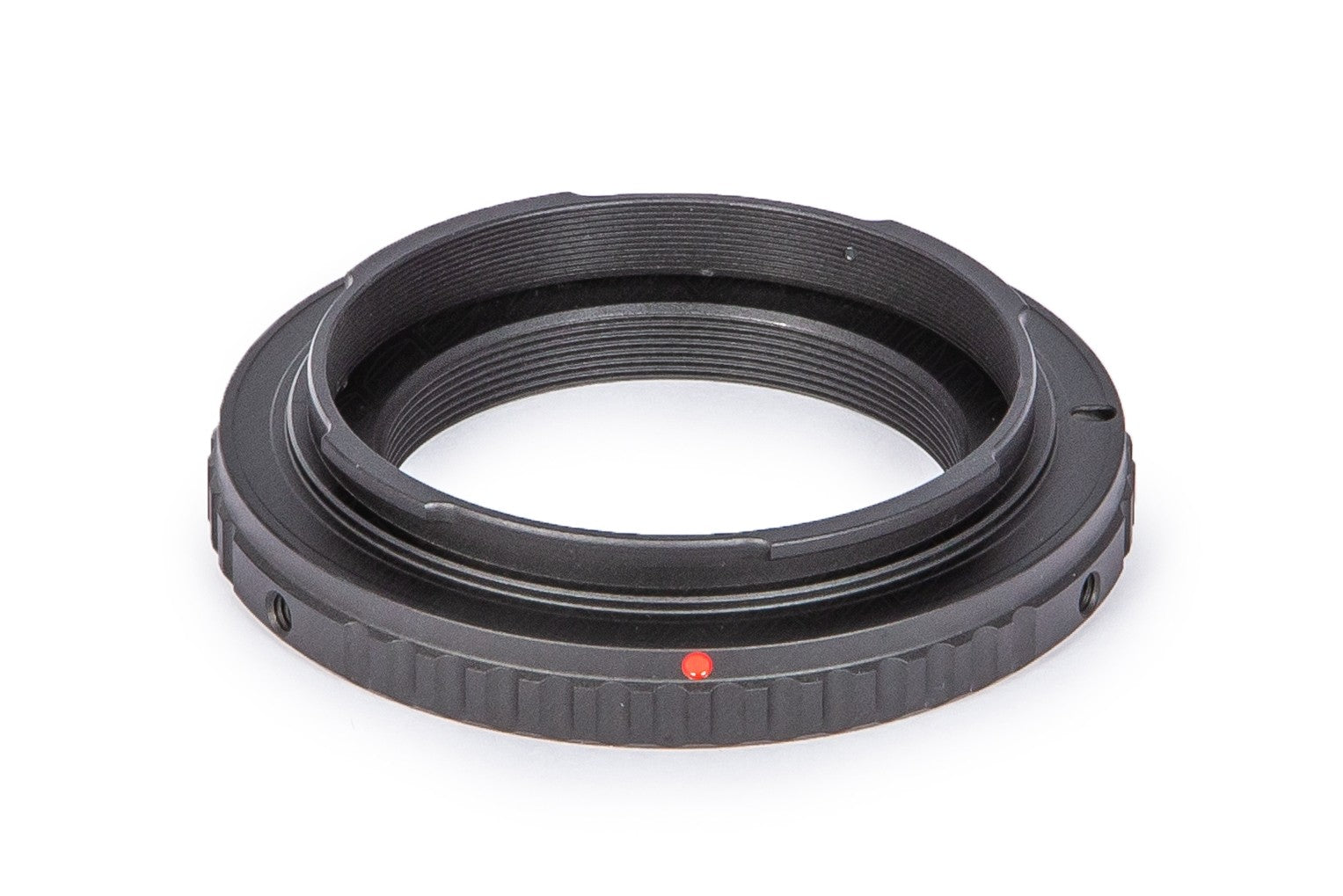

- Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch
|NET WEIGHT (KG)||0.05|
|OPTICAL LENGTH (MM)||8,3|
|CAMERA ADAPTABLE||Nikon Z Bajonett|
|INNER DIAMETER / CLEAR APERTURE (MM)||41mm (T-2) / 49,3mm|
|INNER CONNECTION (LENS SIDED)||S52, T-2 (M42 x 0,75)|
|OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)||Bayonet|
|COMPATIBLE BRANDS||Astro T-2, Baader Planetarium, Other|
|TYPE OF ADAPTER||Camera Adapter|
Baader Wide-T-Ring Nikon Z (for Nikon Z bajonet) with D52i to T-2 and S52 adapter
