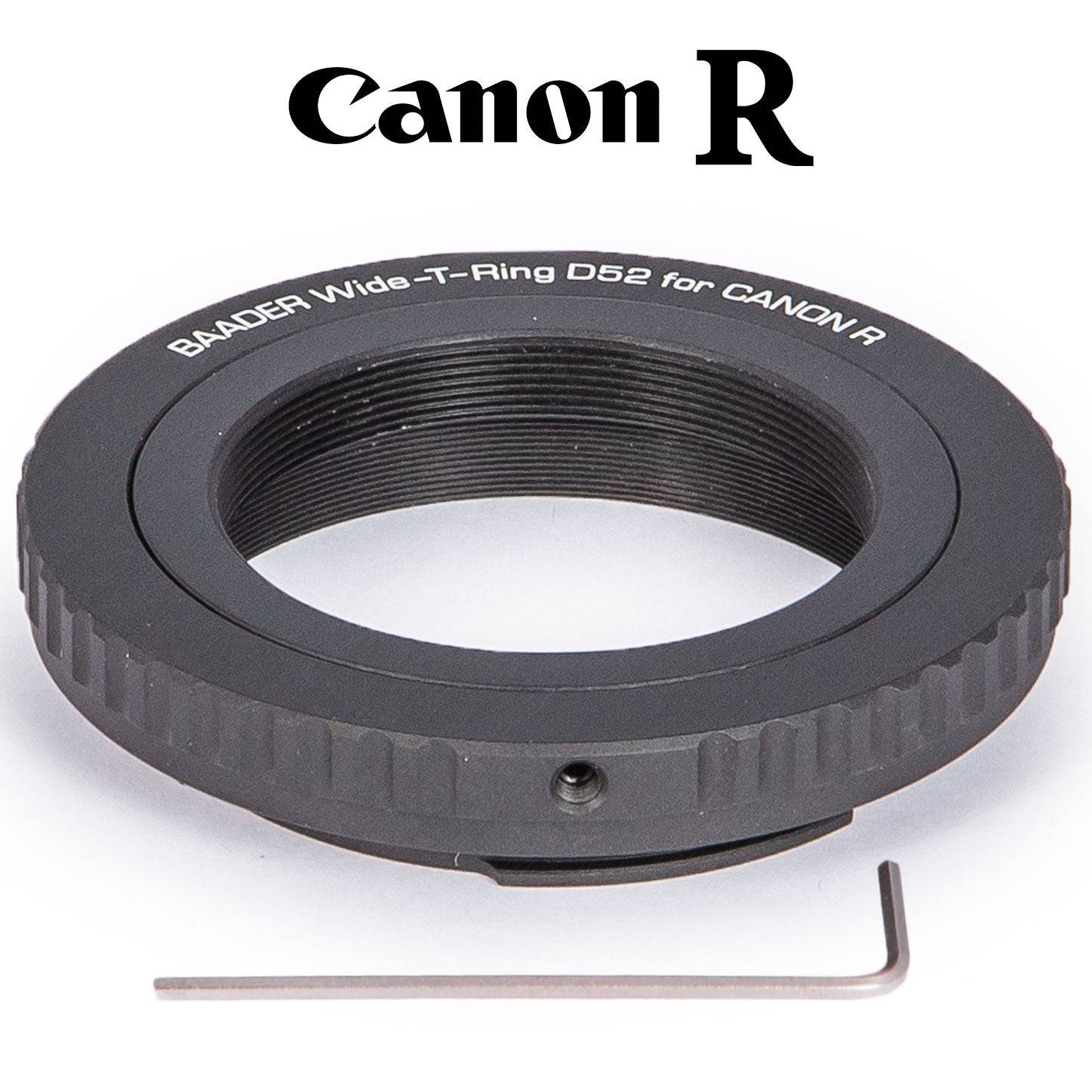

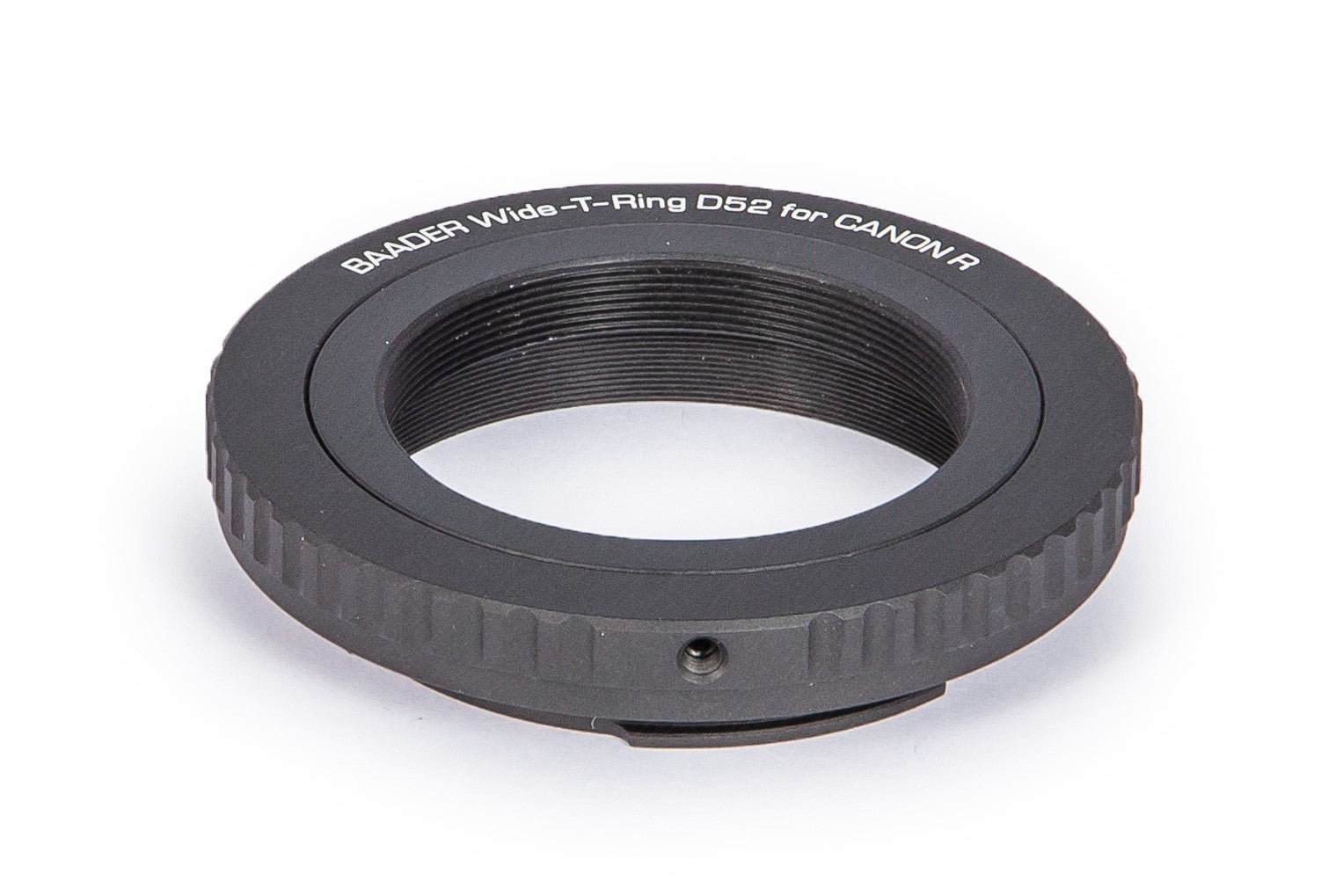

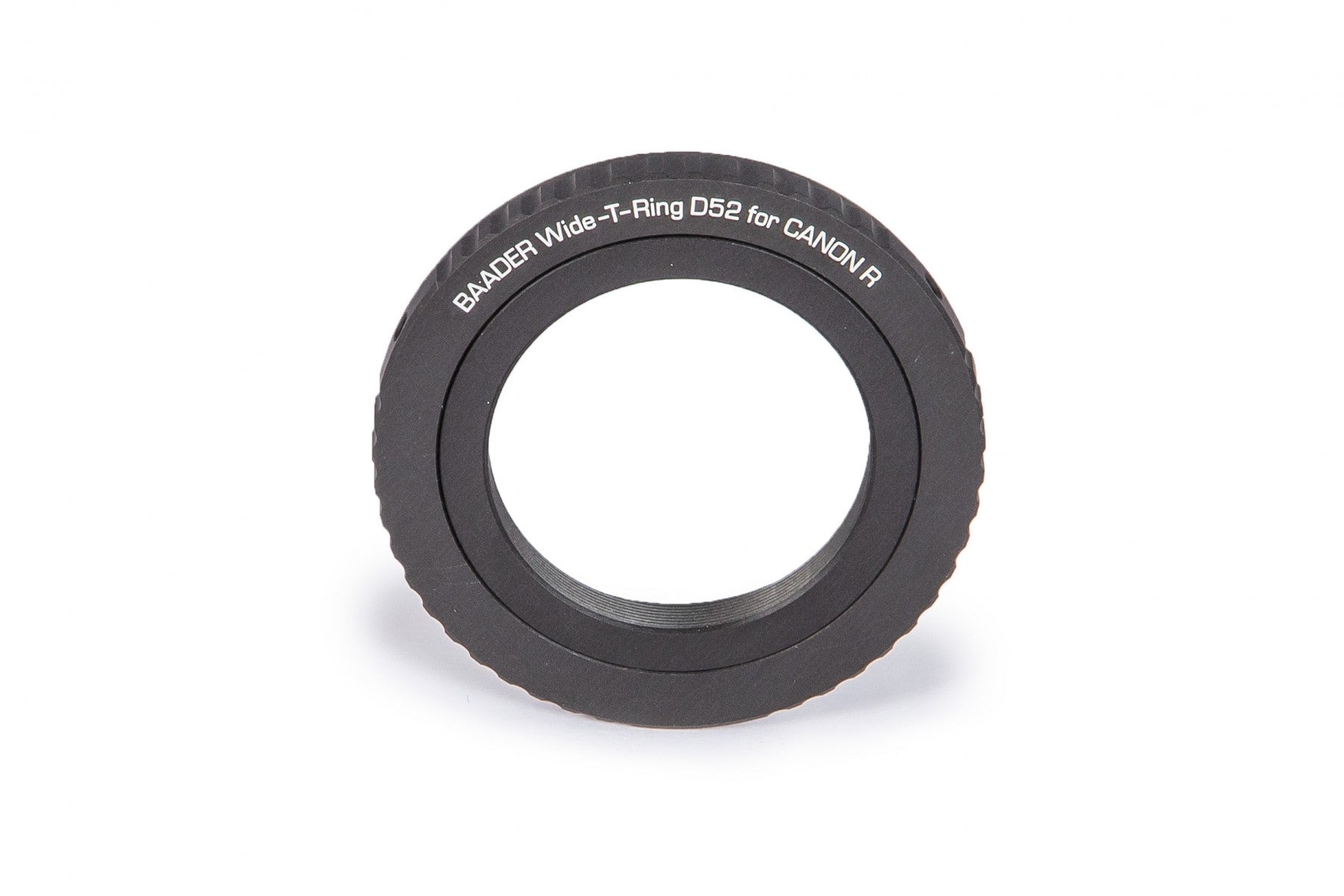

Baader Wide-T-Ring Canon R (for Canon R bajonet) with D52i to T-2 and S52

  • $37.00
    Unit price per


Delivery: ships in 5 to 10 business days after the date of purchase.



  • Baader Wide-T-Ring Canon R to connect Canon EOS R cameras on the Astro T-2 system and S52 dovetail

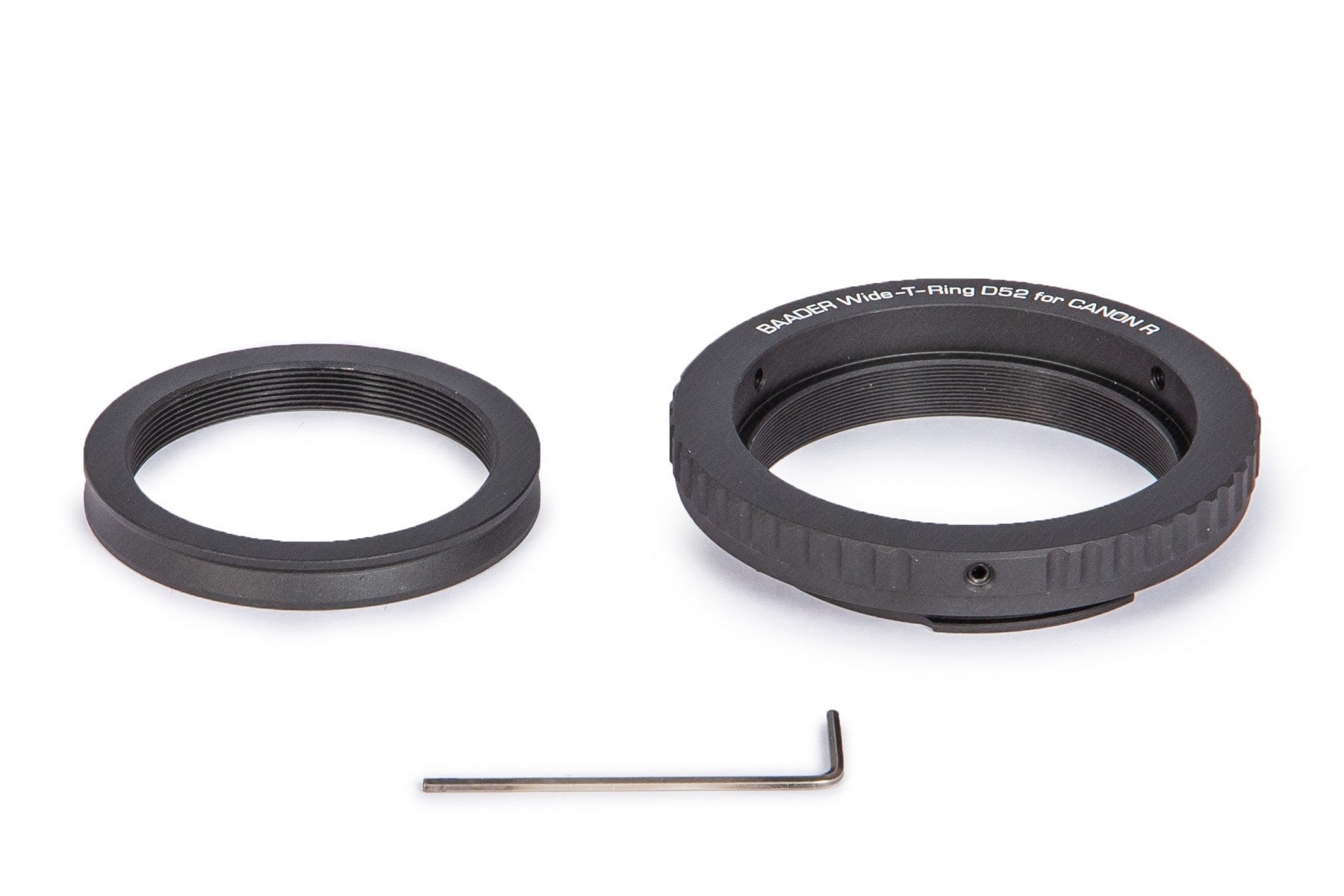

  • All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the S52 / M48 adapter #2958552, or to use the S52 barrel #2958551 without the T-2 reduction. With the S52 / M68 adapter # 2458252, the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
  • All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader UFC S52 dovetail camera-adapter (#2459119), in order to change different filter sizes directly in front of the camera sensor.
  • Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.

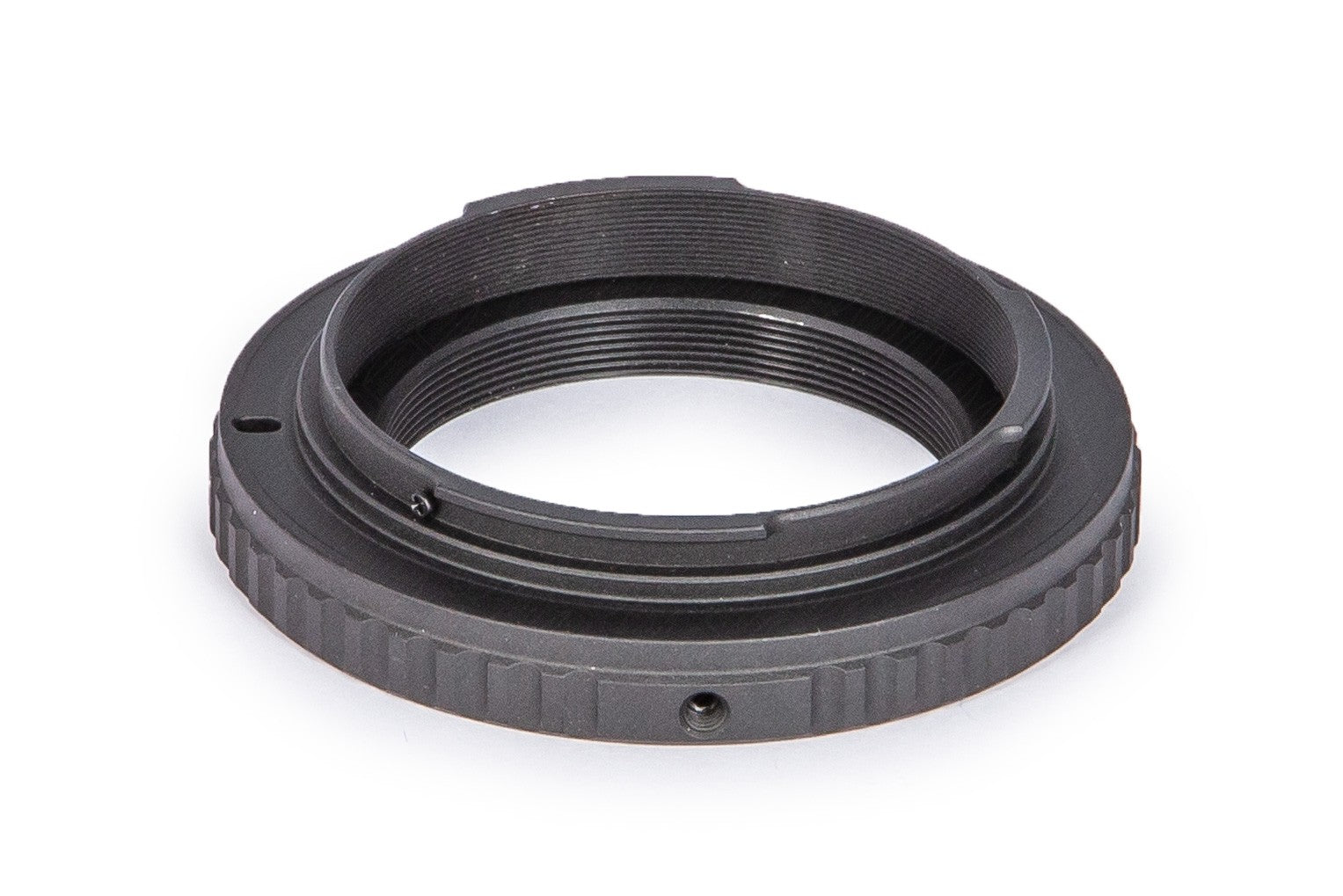

  • On the camera side: Canon R Bayonet
  • Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch



MANUFACTURER Baader Planetarium
SKU (#) 2408336
EAN CODE 4047825041036
NET WEIGHT (KG) 0.05
OPTICAL LENGTH (MM) 8,3
CAMERA ADAPTABLE Canon R Bajonett
INNER DIAMETER / CLEAR APERTURE (MM) 41mm (T-2) / 48,3mm
OUTER DIAMETER 66.5mm
INNER CONNECTION (LENS SIDED) Thread, S52, T-2 (M42 x 0,75)
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Bayonet
COMPATIBLE BRANDS Astro T-2, Baader Planetarium
TYPE OF ADAPTER Camera Adapter



Baader Wide-T-Ring Canon R (for Canon R bajonet) with D52i to T-2 and S52 adapter
