Astro-Mirrorless Canon EOS R Digital Camera Body - Used

  • $1,799.00
    Unit price per




Features



  • 30.3MP Full Frame CMOS Sensor with 5.36 µm Square pixel size
  • Up to 4X Hydrogen Alpha transmission increase at 656nm wavelength
  • Up to 6X Sulfur II transmission increase at 671.7nm and 673nm wavelengths

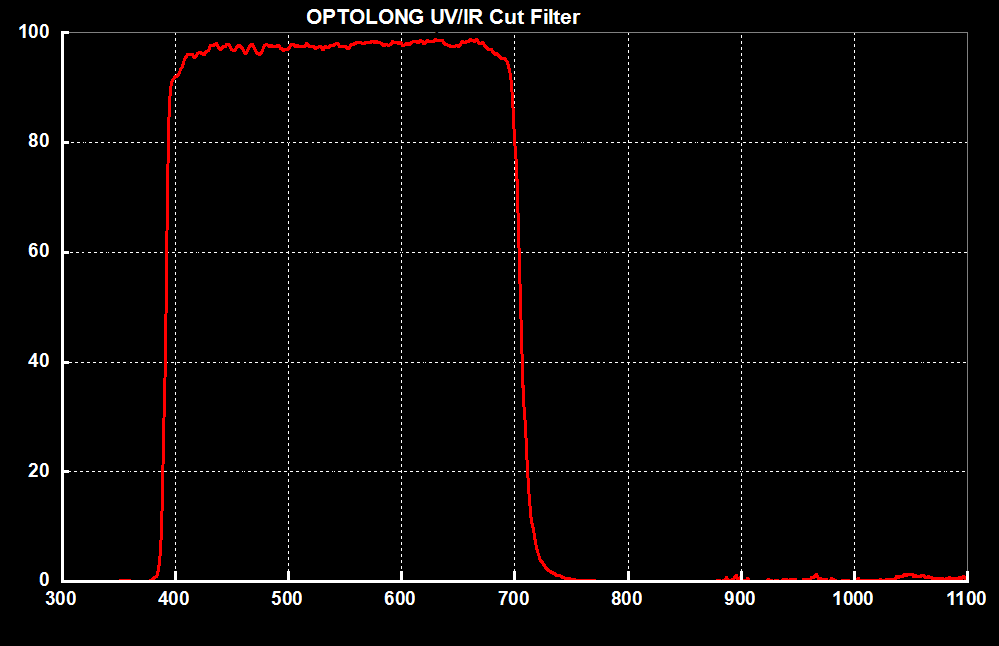

  • AstroGear UV/IR blocking filter with AR coatings and 400-700nm transmission range**
  • ISO Range: 100 to 40000 (Extended ISO: 102400)
  • Low Pass Anti-Aliasing Filter with self-cleaning function preserved
  • Built-in 3.69m-Dot OLED Electronic Viewfinder (Cool Eyepiece Virtualization!!!)
  • 3.15" 2.1m-Dot Vari-Angle Touchscreen LCD
  • Built-in WIFI (Great for Electronically-Assisted Astronomy with Phones and Tablets)
  • DIGIC 8 Image Processor
  • UHD 4K 24fps / HD 1080p 60fps / HD 720p 120fps Video Recording
  • Improved Dual Pixel CMOS AF
  • Magnesium alloy body
  • Compatible with ZWO ASIAIR Plus, BackyardEOS and Astrophotography Tool
  • 1 Year Warranty*



Overview



Compact, Pro-level Mirrorless digital camera professionally Astro-Converted for increased 4X H-alpha sensitivity and 6X Sulfur II sensitivity with a Big Full Frame sensor for about half the price of a Color Cooled Camera with the same sensor size. The stock UV/IR blocking sensor filter is replaced by the AstroGear Luminance UV/IR blocking filter with Enhanced Spectrum (Visible + H-alpha + Sulfur II). User friendly for aspiring astrophotographers expecting an easy way to capture images of deep reddish nebulae structures.

Condition: Used excellent condition body with minor signs of cosmetic wear.



Straightforward Camera Control and Focus process



The exposures timing remote control is simply doable with a remote shutter release device or with Canon EOS Utility Free Software or Astrophotography data capture software like Backyard EOS or Astrophotography tool. Subject framing and perfect focus procedure can also be done easily with or without focus masks over Live View digital zoom using the camera’s Vari-angle LCD touchscreen, and also with Canon EOS Utility Free Software or with the mentioned 3rd party software when the camera is connected to a computer.





Shorter body flange back focus





The RF Lens Mount features a large 54mm diameter and a short 20mm flange back focus distance to the sensor surface. Compared to a DSLR, the shorter flange back focus distance to sensor allows to fit accessories like filter sliders, Off-Axis Guiders or Camera Angle Adjusters within the typical 55mm imaging correctors’ back focus.





Great for imaging with Hyperstar/Celestron RASA Astrographs





Being a mirrorless camera, its smaller body cause significantly less light obstruction in Hyperstar/RASA configurations compared to a DSLR, making it a better choice for Hyperstar C9.25/C11/C14 SCT and RASA 11/36 imaging setups. Additionally, when imaging at f/3 or faster focal ratios, the focal point and sensor even illumination is critical, and compared to a DSLR there is no mirror chamber and no shadow projected from the mirror on the sensor surface. With such Ultra-Fast optics, exposures of 30 to 60 seconds single frames are enough and thermal noise is not an issue.



Celestron RASA 8 Owners: Due to the protruding hand grip on the camera body, the Canon EOS R is not compatible with Celestron RASA 8 Astrograph.



Best EAA Experience



Wifi-Capable feature will facilitate EAA (Electronically-Assisted Astronomy or Video-Astronomy) sessions with smartphones or tablets through the Free Canon Camera Connect App taking single frames shots. Broadcast to the entire 3rd Planet with your smartphone or tablet screen recordings/sharing through Zoom Cloud Meetings App or posting in social media platforms. With desktop or laptop computers, total intervalometer control is possible with the Wifi connection and Canon EOS Utility Free Software in Bulb mode for a completely wireless setup experience (No power/data cables).



Suitable for casual photography







This Astro-Converted camera can still be used for casual daylight photography setting the custom white balance with an 18% gray card shot or with Adobe Camera Raw white balance presets and an original white balance filter is not mandatory. For accurate color balance on portrait pictures or product pictures, the stock version or a OWB filter must be used.



**Out of focus NIR: With the Enhanced Spectrum modified camera, depending on the lens, telescope or optical corrector used, some imagers might experience a little bit bloated stars due to the near infrared light slightly out of focus when a refractive optical system does not have at least one ED (Extra-Low Dispersion glass) element. This chromatic aberration could be mitigated with post processing correction using computer software.



Why buy this magnificent Astro-Mirrorless Camera?

  • Professionally converted on a Neat Work Room with ESD Safe Tools
  • Precision optically polished Astronomik Multi-Coated Clear Sensor glass
  • Sensor Recalibrated with Original Orthogonality for perfect focus with lenses
  • 1 Year Warranty*



* Warranty coverage includes manufacturing and conversion defects. Any kind of physical damage, water damage, abuse or misuse of the Astro-converted camera will void the warranty. Since the camera has been disassembled for the modification, this warranty coverage is provided by the Seller (AstroGear), and NOT by Canon U.S.A.



California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm.

https://www.p65warnings.ca.gov/



Type and Image Sensor
Lens Mount Canon RF
Camera Format Full-Frame (1x Crop Factor)
Pixels Actual: 31.7 Megapixel
Effective: 30.3 Megapixel
Maximum Resolution 6720 x 4480
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Sensor Type CMOS
Sensor Size 36 x 24 mm
Image File Format JPEG, Raw
Bit Depth 14-Bit
Image Stabilization Digital (Video Only)
Exposure Control
ISO Sensitivity Auto, 100 to 40000 (Extended: 50 to 102400)
Shutter Speed Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Bulb Mode
Metering Method Center-Weighted Average, Evaluative, Partial
Exposure Modes Aperture Priority, Manual, Shutter Priority
Exposure Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range -3 to 20 EV
White Balance Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting Up to 8 fps at 30.3 MP for up to 47 Frames (Raw) / 100 Frames (JPEG)
Up to 3 fps at 30.3 MP for up to 47 Frames (Raw) / 100 Frames (JPEG)
Up to 2.2 fps at 30.3 MP for up to 47 Frames (Raw) / 100 Frames (JPEG)
Self-Timer 2/10-Second Delay
Video
Recording Modes MP4/H.264
UHD 4K (3840 x 2160) at 23.976p/24.00p/25p/29.97p
Full HD (1920 x 1080) at 23.976p/24.00p/25p/29.97p/50p/59.94p
HD (1280 x 720) at 25p/29.97p/50p/59.94p/100p/119.88p
External Recording Modes 4:2:2 10-Bit
UHD 4K (3840 x 2160)
Recording Limit Up to 29 Minutes, 59 Seconds
Video Encoding NTSC/PAL
Audio Recording Built-In Microphone (Stereo)
External Microphone Input
Audio File Format AAC, Linear PCM (Stereo)
Focus
Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
Autofocus Points Phase Detection: 5655
Autofocus Sensitivity -6 to +18 EV
Viewfinder and Monitor
Viewfinder Type Electronic
Viewfinder Size 0.5"
Viewfinder Resolution 3,690,000 Dot
Viewfinder Eye Point 23 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.71x
Diopter Adjustment -4 to +2
Size 3.15"
Resolution 2,100,000 Dot
Display Type Articulating Touchscreen LCD
Flash
Built-In Flash No
Flash Modes Flash On, Slow Sync
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection Hot Shoe
Interface
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC (UHS-II)
Connectivity 3.5mm Microphone, HDMI C (Mini), USB Type-C (USB 3.0)
Wireless Wi-Fi
Bluetooth
GPS No
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%
Physical
Battery 1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh
Dimensions (W x H x D) 5.3 x 3.9 x 3.3" / 135.8 x 98.3 x 84.4 mm
Weight 1.45 lb / 660 g (Body with Battery and Memory)







  • Used Astro-Converted Canon EOS R Body
  • Battery Pack LP-E6N
  • Battery Charger LC-E6
  • Camera Cover R-F-5



To attach the Camera to a Telescope, a T-Ring adapter not included is necessary.



To control the camera with computer software a Type-C to Male USB Cable not included is necessary.
