Astro-Mirrorless Canon EOS M50 Digital Camera Body - Used
- 24.1MP APS-C CMOS Sensor with 3.72 µm Square pixel size
- Up to 4X Hydrogen Alpha transmission increase at 656nm wavelength
- Up to 6X Sulfur II transmission increase at 671.7nm and 673nm wavelengths

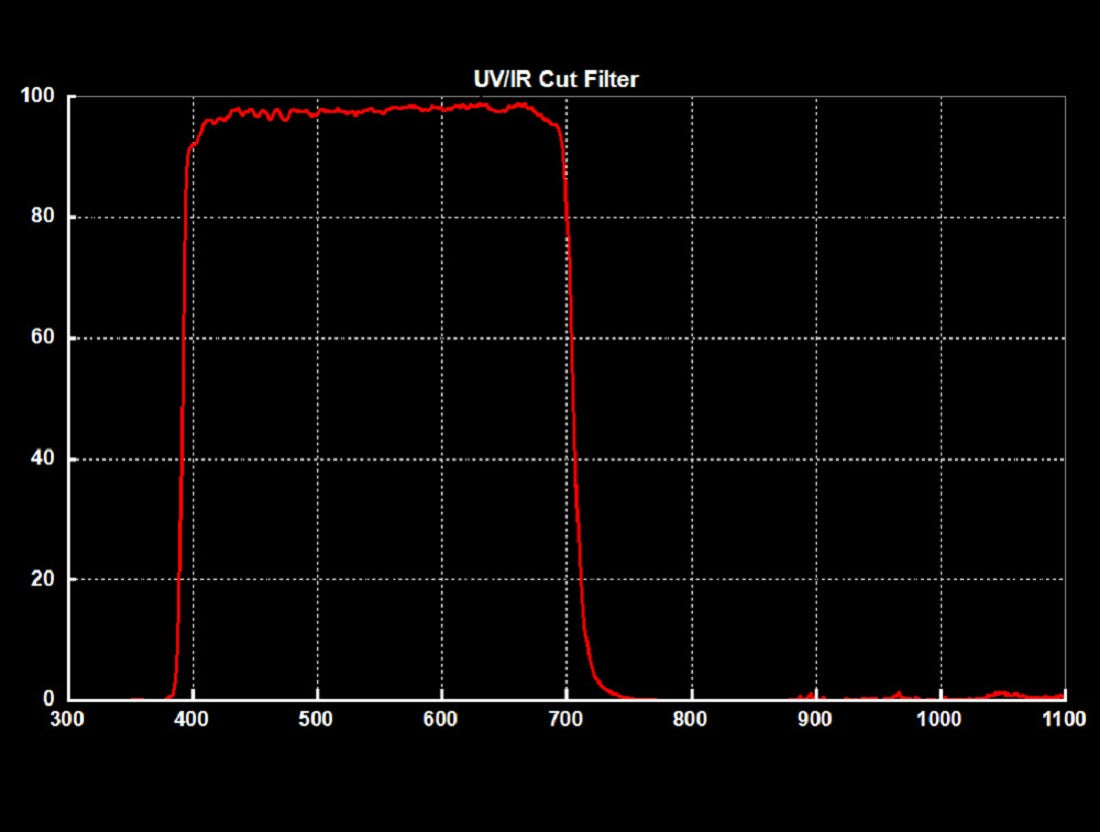

- Optolong UV/IR blocking filter with AR coatings and 400-700nm transmission range**
- ISO Range: 100 to 25600 (Extended ISO: 51200)
- Low Pass Anti-Aliasing Filter removed (Camera sensor performs at native maximum sharpness without self-cleaning function)
- Built-in 2.36m-Dot OLED Electronic Viewfinder (Nice Eyepiece Simulation!!!)

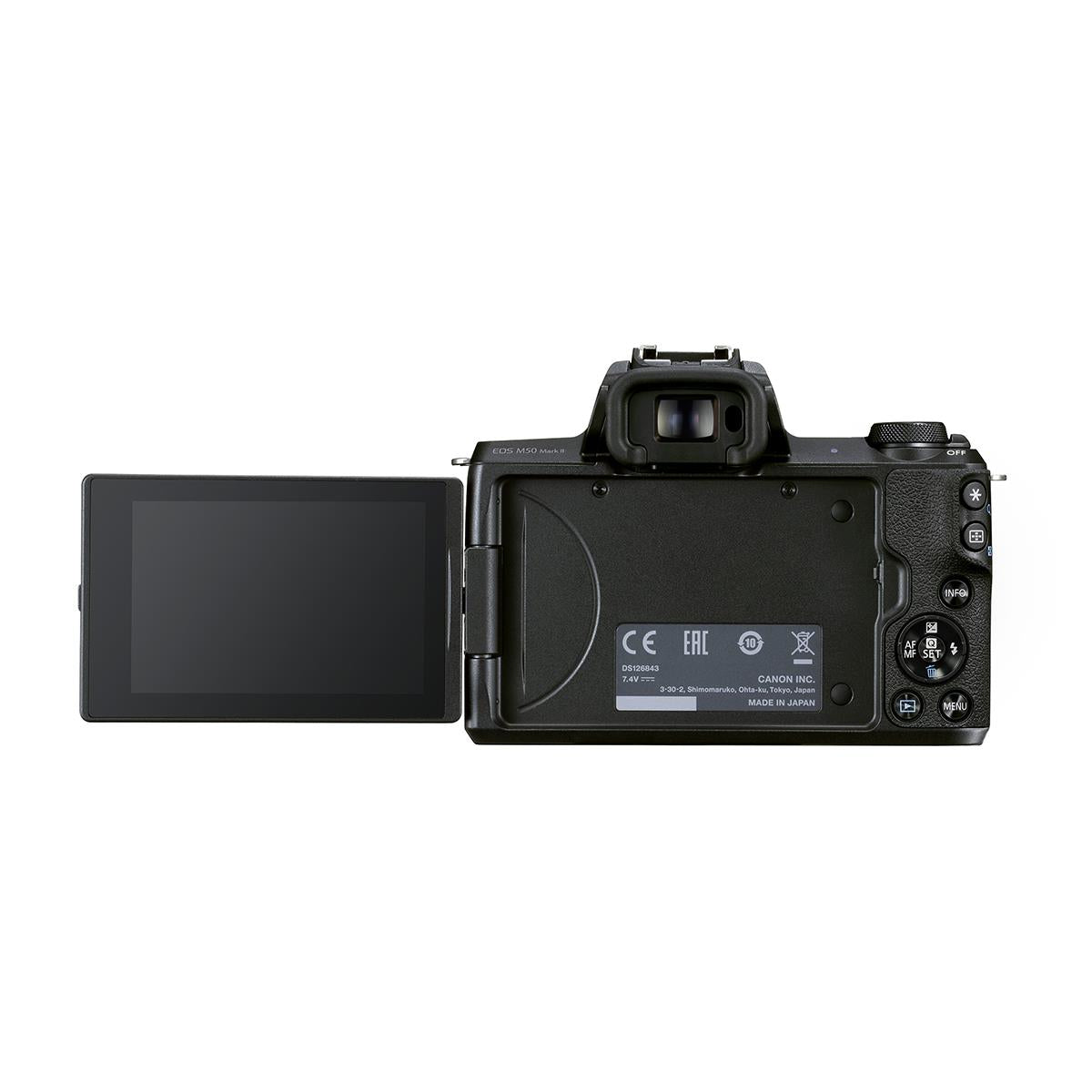

- 3.0" 1.04m-Dot Vari-Angle Touchscreen LCD
- Built-in WIFI (Great for Electronically-Assisted Astronomy with Phones and Tablets)
- DIGIC 8 Image Processor
- UHD 4K 24fps/HD 1080p 60fps/HD 720p 120fps Video Recording
- Improved Dual Pixel CMOS AF
- Compatible with BackyardEOS and Astrophotography Tool
- 1 Year Warranty*
- What's included
Compact, lightweight Mirrorless digital camera professionally Astro-Converted for increased 4X H-alpha sensitivity and 6X Sulfur II sensitivity with a generous APS-C sensor for half the price of a Color Cooled Camera with the same sensor size. The stock UV/IR blocking sensor filter is replaced by the Optolong Luminance UV/IR blocking filter with Enhanced Spectrum (Visible + H-alpha + Sulfur II). User and budget friendly for aspiring astrophotographers expecting an easy way to capture images of deep reddish nebulae structures.
Condition: Used excellent condition body with minor signs of cosmetic wear.
Straightforward Camera Control and Focus process
The exposures timing remote control is simply doable with Canon EOS Utility Free Software or Astrophotography data capture software like Backyard EOS or Astrophotography tool. Subject framing and perfect focus procedure can also be done easily with or without focus masks over Live View digital zoom using the camera’s Vari-angle LCD touchscreen, and also with Canon EOS Utility Free Software or with the mentioned 3rd party software when the camera is connected to a computer.
Shorter body flange back focus
The EF-M Lens Mount features a 47mm diameter and a short 18mm flange back focus distance to the sensor surface. Compared to a DSLR, the shorter flange back focus distance to sensor allows to fit accessories like filter sliders, Off-Axis Guiders or Camera Angle Adjusters within the typical 55mm imaging correctors’ back focus.
Great for imaging with Hyperstar/Celestron RASA Astrographs
Being an APS-C mirrorless camera, its small body cause significantly less light obstruction in Hyperstar/RASA configurations compared to a DSLR, making it suitable for Hyperstar C8/C9.25/C11/C14 SCT and RASA 11/36 imaging setups. Additionally, when imaging at f/3 or faster focal ratios, the focal point and sensor even illumination is critical, and compared to a DSLR there is no mirror chamber and no shadow projected from the mirror on the sensor surface. With such Ultra-Fast optics, exposures of 30 to 60 seconds single frames are enough and thermal noise is not an issue.
Celestron RASA 8 Owners: Due to the protruding hand grip on the camera body, the Canon EOS M50 is not compatible with Celestron RASA 8 Astrograph.
Best EAA Experience
Wifi-Capable feature will facilitate EAA (Electronically-Assisted Astronomy or Video-Astronomy) sessions with smartphones or tablets through the Free Canon Camera Connect App taking single frames shots. Broadcast to the entire 3rd Planet with your smartphone or tablet screen recordings/sharing through Zoom Cloud Meetings App or posting in social media platforms. With desktop or laptop computers, total intervalometer control is possible with the Wifi connection and Canon EOS Utility Free Software in Bulb mode for a completely wireless setup experience (No power/data cables).
Suitable for casual photography
This Astro-Converted camera can still be used for casual daylight photography setting the custom white balance with an 18% gray card shot or with Adobe Camera Raw white balance presets and an original white balance filter is not mandatory. For accurate color balance on portrait pictures or product pictures, the stock version or a OWB filter must be used.
**Out of focus NIR: With the Enhanced Spectrum modified camera, depending on the lens, telescope or optical corrector used, some imagers might experience a little bit bloated stars due to the near infrared light slightly out of focus when a refractive optical system does not have at least one ED (Extra-Low Dispersion glass) element. This chromatic aberration could be mitigated with post processing correction using computer software.
Why buy this magnificent Astro-Mirrorless Camera?
- Professionally converted on a Neat Work Room with ESD Safe Tools
- Precision optically polished Optolong UV/IR Cut Luminance Anti-Reflective Sensor glass
- Sensor Recalibrated with Original Orthogonality for perfect focus with lenses
- 1 Year Warranty*
* Warranty coverage includes manufacturing and conversion defects. Any kind of physical damage, water damage, abuse or misuse of the Astro-converted camera will void the warranty. Since the camera has been disassembled for the modification, this warranty coverage is provided by the Seller (AstroGear), and NOT by Canon U.S.A.
California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. https://www.p65warnings.ca.gov/
|Lens Mount||Canon EF-M|
|Sensor Type||22.3 x 14.9 mm (APS-C) CMOS|
|Sensor Resolution||Actual: 25.8 Megapixel
Effective: 24.1 Megapixel (6000 x 4000)
|Aspect Ratio||1:1, 3:2, 4:3, 16:9|
|Image File Format||JPEG, Raw|
|Image Stabilization||Digital, 5-Axis (Video Only)|
|ISO Sensitivity||Auto, 100 to 25600 (Extended: 100 to 51200)|
|Shutter Speed||1/4000 to 30 Seconds
|Metering Method||Center-Weighted Average, Evaluative, Partial, Spot|
|Exposure Modes||Aperture Priority, Manual, Program, Shutter Priority|
|Exposure Compensation||-3 to +3 EV (1/3 EV Steps)|
|Metering Range||0 to 20 EV|
|White Balance||Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten|
|Continuous Shooting||Up to 10 fps at 24.2 MP for up to 10 Frames (Raw) / 33 Frames (JPEG)
Up to 4 fps at 24.2 MP for up to 15 Frames (Raw) / 1000 Frames (JPEG)
Up to 7.4 fps at 24.2 MP for up to 47 Frames (JPEG)
UHD 4K (3840 x 2160) at 23.976p
Full HD (1920 x 1080) at 59.94p [60 Mb/s]
Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s]
HD (1280 x 720) at 119.88p [52 Mb/s]
HD (1280 x 720) at 59.94p [26 Mb/s]
|Recording Limit||Up to 29 Minutes, 59 Seconds|
|Audio Recording||Built-In Microphone (Stereo)
External Microphone Input
|Audio File Format||AAC LC|
|Focus Type||Auto and Manual Focus|
|Focus Mode||Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)|
|Autofocus Points||Contrast Detection: 143
Phase Detection: 99
|Autofocus Sensitivity||-2 to +18 EV|
|Viewfinder Resolution||2,360,000 Dot|
|Display Type||Articulating Touchscreen LCD|
|Guide Number||16.4' / 5 m at ISO 100|
|Maximum Sync Speed||1/200 Second|
|Flash Compensation||-2 to +2 EV (1/3 EV Steps)|
|Dedicated Flash System||eTTL|
|External Flash Connection||Hot Shoe|
|Media/Memory Card Slot||Single Slot: SD/SDHC/SDXC (UHS-I)|
|Connectivity||3.5mm Microphone, HDMI D (Micro), USB Micro-B (USB 2.0)|
|Operating Temperature||32 to 104°F / 0 to 40°C|
|Operating Humidity||0 to 85%|
|Battery||1 x LP-E12 Rechargeable Lithium-Ion, 7.2 VDC, 875 mAh|
|Dimensions (W x H x D)||4.6 x 3.5 x 2.3" / 116.3 x 88.1 x 58.7 mm|
|Weight||13.7 oz / 387 g (Body with Battery and Memory)|
- Used Astro-Converted Canon EOS M50 Body (Black)
- Battery Pack LP-E12
- Battery Charger LC-E12
- Camera Cover R-F-4
To attach the Camera to a Telescope, a T-Ring adapter not included is necessary.
To control the camera with computer software a USB Type-A to Micro 5 Pin Type-B Cable not included is necessary.
