Astronomik MC-Clear Clip-Filter EOS APS-C

  • $69.95
    Unit price per


Clip-Filter system for Canon EOS cameras

Do you own a Canon EOS digital camera for astro-imaging? Then you have surely encountered the following problems:

  • Large filters for large camera lens objectives are very expensive
  • If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
  • For very fast (low f/ number) telescopes like the Vixen R200SS or the Takahashi “Epsilon” astrograph, a filter drawer or a filter wheel cannot be used since the distance to the corrector lenses would be changed.
  • With long exposure times your camera’s sensor chip is exposed to more dust



With the Astronomik Clip-Filter System you can take care of all of these problems at once!

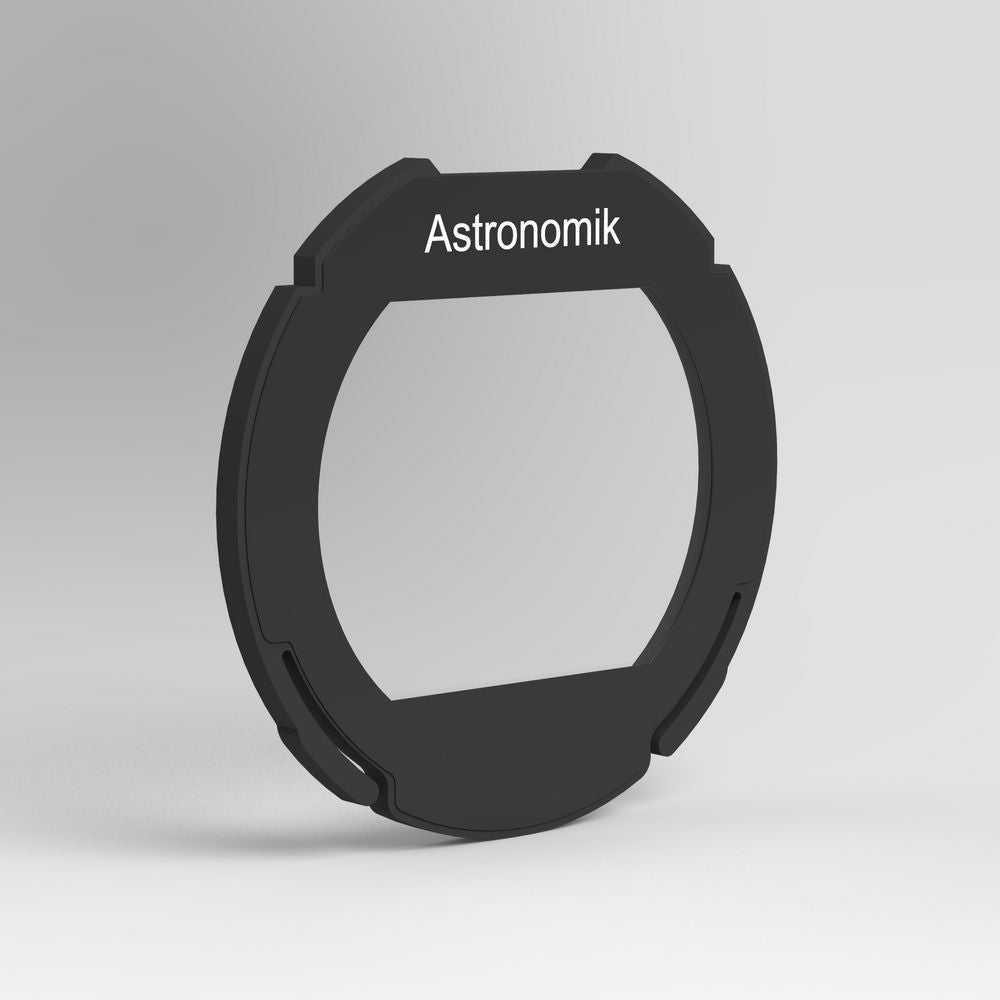

The patented Astronomik Clip-Filter System is black anodized aluminum and laser-cut on state-of-the-art modern machines. It can be inserted within seconds directly into the EOS camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain functional!

Almost all Canon system lenses (with the exception of the genuine EF-S series lenses), all lenses (known to us) from third party manufacturers and all M42 and T2 lens adapters, can be used with the Astronomik Clip-Filter System. The Clip-Filter System also acts as an outstanding dust shield, which prevents the possibility of dust settling on the sensor during long time exposure (The MC-Clear filter does not have a filter effect and only acts as a dust shield.)



Astronomik MC-Clear Clip-Filter EOS APS-C

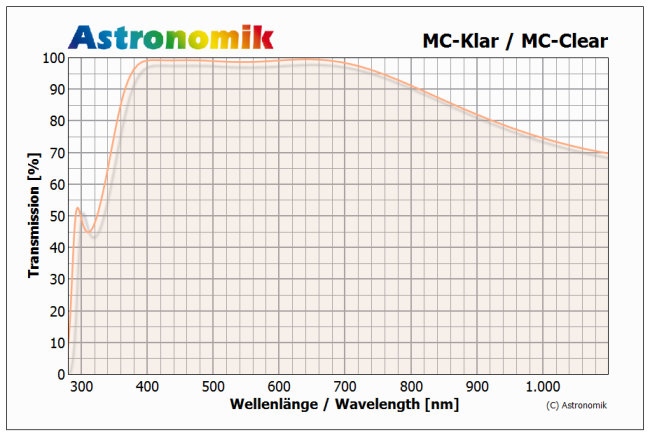

This filter should be used if the focal plane of your imaging system should stay in the same place as with other Astronomik filters in place. The multicoating prevents you from unwanted reflections. It blocks neither IR nor UV.

The second main application is dust protection of your system (telescope or camera). As the filter doesn’t modify the spectral transmittance of your system it doesn’t alter the colors. It’s great for keeping all dust away from your optics or sensor.

Lots of Astronomik MC Clear filters in custom diameters are sold to camera manufacturers worldwide. They like the great coating and scratch resistance!

Main use
The Astronomik MC Clear is made by the same high-end process as all other Astronomik filters. The coating has the same scratch resistance and the substrate has the same high quality. Because of this it is parfocal with all other Astronomik filters and can be used in any optical system for dust protection without modifying the spectral characteristics and without destroying the optical performance of your system.

Other uses

  • As a dust protection of Schmidt-Cassegrain, Schmidt-Newton or Maksutov system or as a dust protection in front of DSLR camera.
  • As an alternative instead of the UV-IR-Blocker if your system has no refracting elements.

Alternatives
You should think about using the IR-blocker or even the UV-IR blocker if you have a system with any refracting elements

Important: Full Spectrum modified cameras will need an additional IR-block-filter.



Mounting the Astronomik Clip-Filter:



Removing the Clip-Filter


Technical Data



  • Parfocal with other Astronomik filters
  • Glass thickness: 1mm
  • Completely resistant against high humidity, scratches and aging effects
  • Diffraction limited, the filter will not reduce the optical performance of your telescope!
  • Astronomik filters are delivered in a high-quality, long lasting, filter box
  • Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past



Canon EOS suitable for Clip-Filter astro modification possible Live-View Megapixel
7D MkII yes no filter for replacement needed yes 20,2
7D yes no filter for replacement needed yes 18,0
20D yes filter for replacement needed no 8,2
20Da yes filter for replacement needed yes 8,2
30D yes filter for replacement needed no 8,2
40D yes no filter for replacement needed yes 10,1
50D yes no filter for replacement needed yes 15,1
60D + 60Da yes no filter for replacement needed yes 18
70D yes no filter for replacement needed yes 20,2
77D yes no filter for replacement needed yes 24,2
80D yes no filter for replacement needed yes 24
90D yes no filter for replacement needed yes 32
300D / Digital Rebel / Kiss Digital yes filter for replacement needed no 6,3
350D / Digital Rebel XT / Kiss Digital N yes filter for replacement needed no 8,0
400D / Digital Rebel XTi / Kiss Digital X yes no filter for replacement needed no 10,1
450D / Rebel XSi / Kiss X2 yes no filter for replacement needed yes 12,2
500D / Rebel T1i / Kiss X3 yes no filter for replacement needed yes 15,1
550D / Rebel T2i / Kiss X4 yes no filter for replacement needed yes 18
600D / Rebel T3i / Kiss X5 yes no filter for replacement needed yes 18
650D / Rebel T4i / Kiss X6 yes no filter for replacement needed yes 18
700D / Rebel T5i / Kiss X7 yes no filter for replacement needed yes 18
750D / Rebel T6i / Kiss X8i yes no filter for replacement needed yes 24
760D / Rebel T6s / 8000D yes no filter for replacement needed yes 24,2
800D / Rebel T7i / Kiss X9i yes no filter for replacement needed yes 24
850D / Rebel T8i / Kiss X10i
yes no filter for replacement needed yes 24
1000D / Rebel XS / Kiss F yes no filter for replacement needed yes 10,1
1100D / Rebel T3 / Kiss X50 yes no filter for replacement needed yes 12,2
1200D / Rebel T5 / Kiss X70 yes no filter for replacement needed yes 18
1300D / Rebel T6 / Kiss X80 yes no filter for replacement needed yes 18
2000D / Rebel T7 / Kiss X90 yes no filter for replacement needed yes 24,1
4000D / Rebel T100 / 3000D yes no filter for replacement needed yes 18
100D / Rebel SL1 / Kiss X7 yes no filter for replacement needed yes 18
200D / Rebel SL2 / Kiss X9 yes no filter for replacement needed yes 24,1
250D / Rebel SL3 / Kiss X10 yes no filter for replacement needed yes 24,1
M series (all versions) yes: This version fit´s into the Canon Adapter EF to EF-M



Important: Not suitable are cameras offered before 2003 and all varieties of the Canon EOS 1D and EOS M.
