Astronomik CLS CCD Clip-Filter EOS APS-C (For Full Spectrum Cameras)

  • $159.95
    Unit price per


Clip-Filter system for Canon EOS cameras

Do you own a Canon EOS digital camera for astro-imaging? Then you have surely encountered the following problems:

  • Large filters for large camera lens objectives are very expensive
  • If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
  • For very fast (low f/ number) telescopes like the Vixen R200SS or the Takahashi “Epsilon” astrograph, a filter drawer or a filter wheel cannot be used since the distance to the corrector lenses would be changed.
  • With long exposure times your camera’s sensor chip is exposed to more dust



With the Astronomik Clip-Filter System you can take care of all of these problems at once!

The patented Astronomik Clip-Filter System is black anodized aluminum and laser-cut on state-of-the-art modern machines. It can be inserted within seconds directly into the EOS camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain functional!

Almost all Canon system lenses (with the exception of the genuine EF-S series lenses), all lenses (known to us) from third party manufacturers and all M42 and T2 lens adapters, can be used with the Astronomik Clip-Filter System. The Clip-Filter System also acts as an outstanding dust shield, which prevents the possibility of dust settling on the sensor during long time exposure (The MC-Clear filter does not have a filter effect and only acts as a dust shield.)

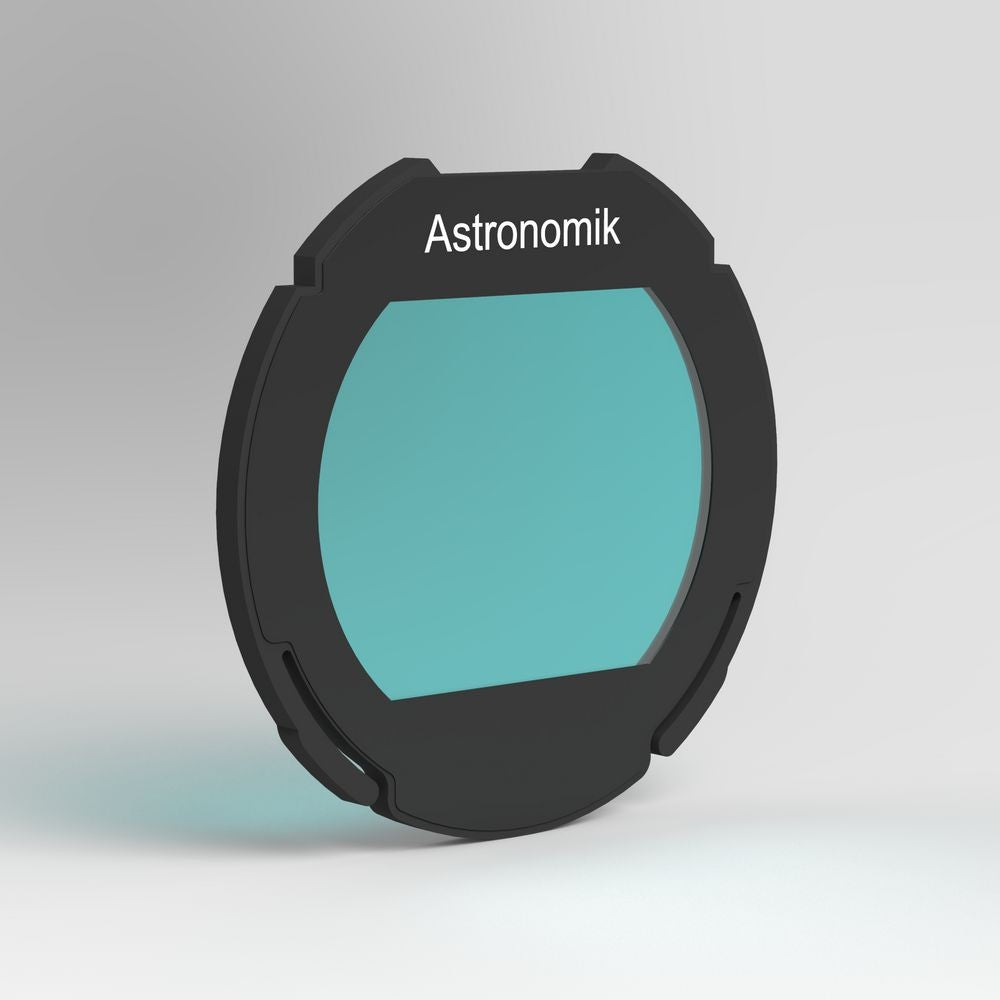

Astronomik CLS CCD Clip-Filter EOS APS-C (For Full Spectrum Modified Cameras)


The Astronomik CLS CCD is suitable under light-polluted skies for DSLR Cameras which have been modified for Full Spectrum sensitivity. The filter enhances the contrast between all deep-sky objects and the background.


The CLS-CCD Filter enhances the contrast between astronomical objects and the background. Due to the wider transmission curve compared to UHC filters, a greater amount of light will pass the filter. Stars will be less dimmed. This filter has been optimized to block as much spurious light as possible and simultaneously provide the best performance for 'useful' light. A good filter for DSLR-, CCD- and film b/w-photography as well as observation of deep-sky-objects with telescopes or photo lenses of all aperture f/2 and above.



 Main use

The filter blocks completely emission lines of artificial light sources like streetlights (e.g. sodium- and mercury-vapor) as well as the airglow. All 'important' emission lines as well as the spectral range of the night-adapted eye are being passed. The supplementary IR-blocking layer allows the use for DSLR- and Webcams without an integrated IR-block filter.

Other uses
  • Easier resolution of Double Stars.
  • With the EOS-Clip model, photography with DSLR cameras is feasible even unter extreme light-polluting conditions without shifting the white balance.
  • The 1,25" and 2" socket models can be used for observations from light-polluted areas.
  • If you plan to create color images from emission line data, our CLS-CCD filter is a great choice for the Luminance channel



Mounting the Astronomik Clip-Filter:



Removing the Clip-Filter

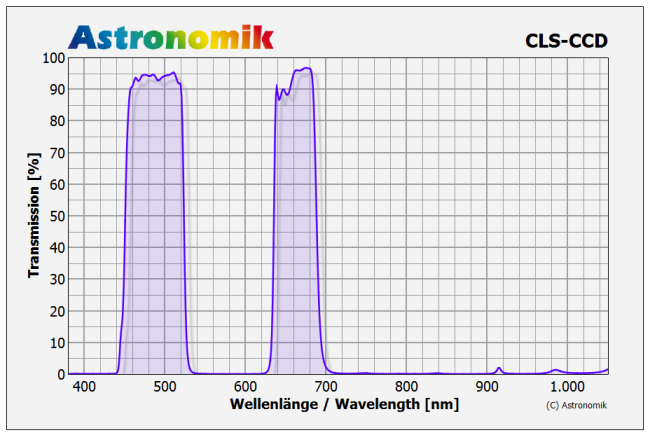

Technical Data


  • 95% transmission at 486nm (H-beta)
  • 95% transmission at 496nm (OIII)
  • 95% transmission at 501nm (OIII)
  • 97% transmission at 656nm (H-alpha)
  • Pass from 450 to 520nm and from 640 to 690nm
  • Parfocal with other Astronomik filters
  • Glass thickness: 1mm
  • Completely resistant against high humidity, scratches and aging effects
  • Diffraction limited, the filter will not reduce the optical performance of your telescope!
  • Astronomik filters are delivered in a high-quality, long lasting, filter box
  • Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past



Canon EOS suitable for Clip-Filter astro modification possible Live-View Megapixel
7D MkII yes no filter for replacement needed yes 20,2
7D yes no filter for replacement needed yes 18,0
20D yes filter for replacement needed no 8,2
20Da yes filter for replacement needed yes 8,2
30D yes filter for replacement needed no 8,2
40D yes no filter for replacement needed yes 10,1
50D yes no filter for replacement needed yes 15,1
60D + 60Da yes no filter for replacement needed yes 18
70D yes no filter for replacement needed yes 20,2
77D yes no filter for replacement needed yes 24,2
80D yes no filter for replacement needed yes 24
90D yes no filter for replacement needed yes 32
300D / Digital Rebel / Kiss Digital yes filter for replacement needed no 6,3
350D / Digital Rebel XT / Kiss Digital N yes filter for replacement needed no 8,0
400D / Digital Rebel XTi / Kiss Digital X yes no filter for replacement needed no 10,1
450D / Rebel XSi / Kiss X2 yes no filter for replacement needed yes 12,2
500D / Rebel T1i / Kiss X3 yes no filter for replacement needed yes 15,1
550D / Rebel T2i / Kiss X4 yes no filter for replacement needed yes 18
600D / Rebel T3i / Kiss X5 yes no filter for replacement needed yes 18
650D / Rebel T4i / Kiss X6 yes no filter for replacement needed yes 18
700D / Rebel T5i / Kiss X7 yes no filter for replacement needed yes 18
750D / Rebel T6i / Kiss X8i yes no filter for replacement needed yes 24
760D / Rebel T6s / 8000D yes no filter for replacement needed yes 24,2
800D / Rebel T7i / Kiss X9i yes no filter for replacement needed yes 24
850D / Rebel T8i / Kiss X10i
yes no filter for replacement needed yes 24
1000D / Rebel XS / Kiss F yes no filter for replacement needed yes 10,1
1100D / Rebel T3 / Kiss X50 yes no filter for replacement needed yes 12,2
1200D / Rebel T5 / Kiss X70 yes no filter for replacement needed yes 18
1300D / Rebel T6 / Kiss X80 yes no filter for replacement needed yes 18
2000D / Rebel T7 / Kiss X90 yes no filter for replacement needed yes 24,1
4000D / Rebel T100 / 3000D yes no filter for replacement needed yes 18
100D / Rebel SL1 / Kiss X7 yes no filter for replacement needed yes 18
200D / Rebel SL2 / Kiss X9 yes no filter for replacement needed yes 24,1
250D / Rebel SL3 / Kiss X10 yes no filter for replacement needed yes 24,1
M series (all versions) yes: This version fit´s into the Canon Adapter EF to EF-M



Important: Not suitable are cameras offered before 2003 and all varieties of the Canon EOS 1D and EOS M.
