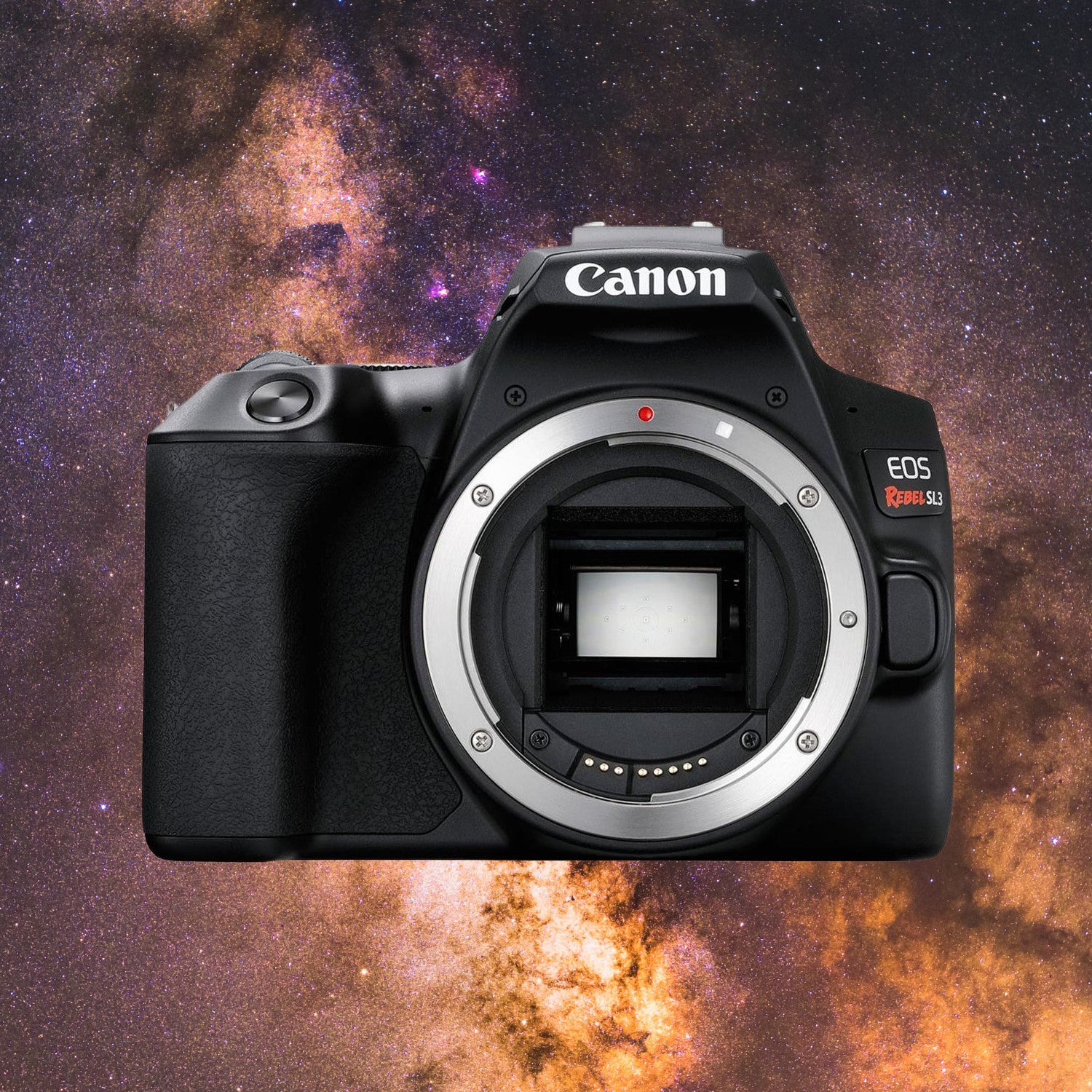

Astro-DSLR Canon EOS Rebel SL3 Camera Body

  • $949.00
    Unit price per




Features

  • 24.1MP APS-C CMOS Sensor with 3.72 µm Square pixel size
  • Up to 4X Hydrogen Alpha transmission increase at 656nm wavelength
  • Up to 6X Sulfur II transmission increase at 671.7nm and 673nm wavelengths
  • Baader UV/IR blocking filter with AR coatings and 400-700nm transmission range
  • ISO Range: 100 to 25600 (Extended ISO: 51200)
  • Low Pass Anti-Aliasing Filter with self-cleaning function preserved

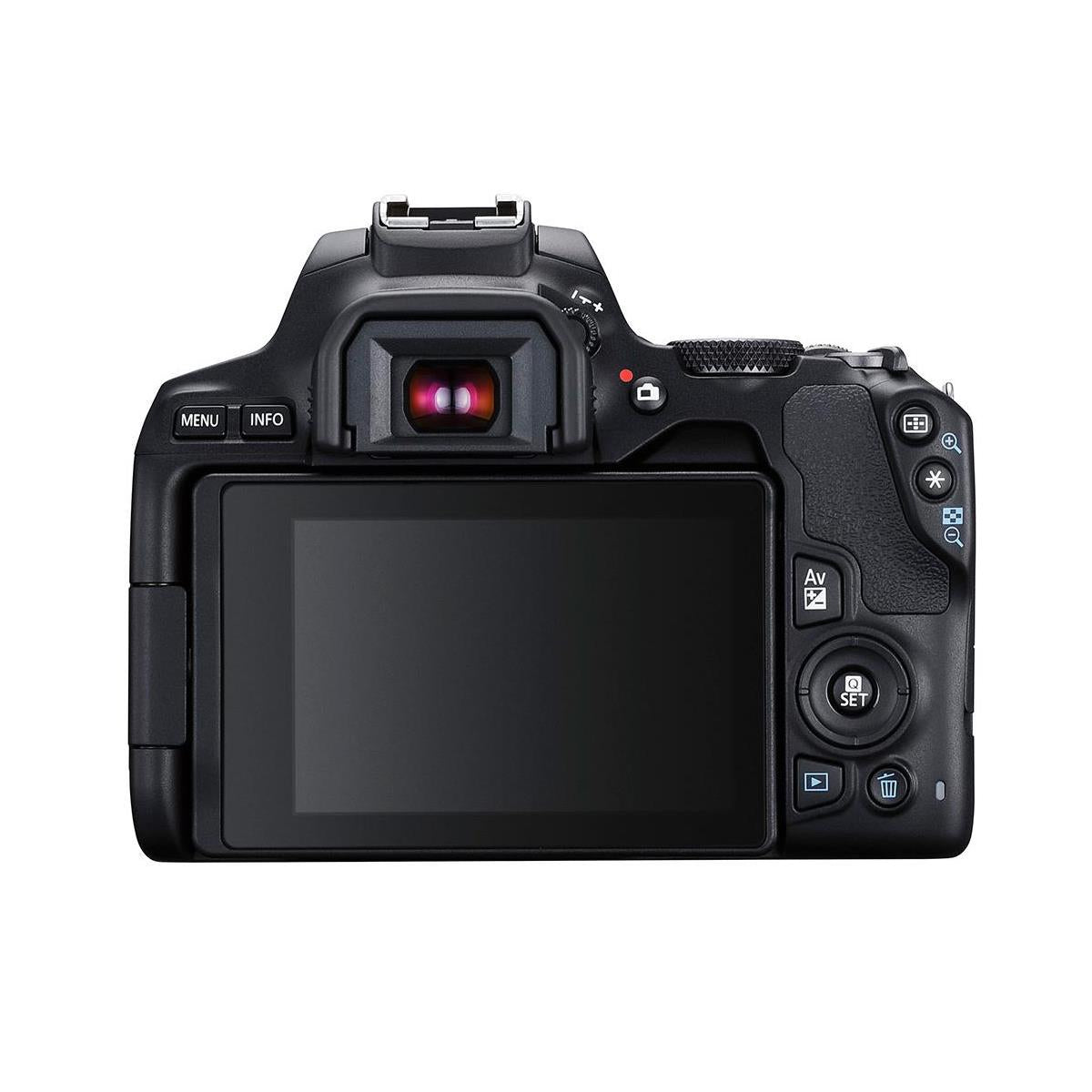

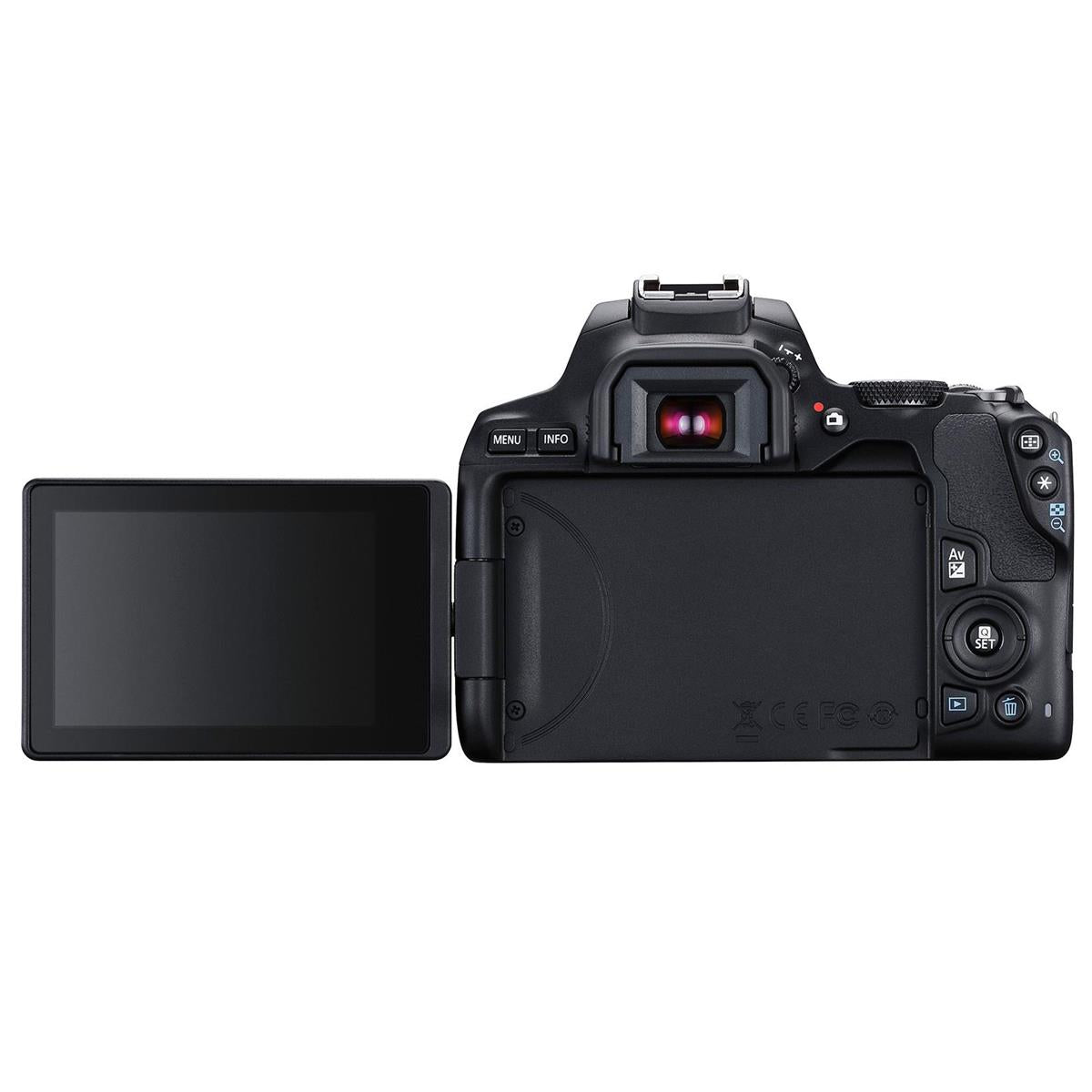

  • 3.0" 1.04m-Dot Vari-Angle Touchscreen LCD
  • Built-in WIFI (Great for Electronically-Assisted Astronomy with Phones and Tablets)
  • DIGIC 8 Image Processor
  • UHD 4K 24fps / HD 1080p 60fps / HD 720p 60fps Video Recording
  • Improved Dual Pixel CMOS AF
  • Compatible with BackyardEOS and Astrophotography Tool
  • 1 Year Warranty*





Overview



A Small, compact, and lightweight DSLR camera professionally Astro-Converted for increased 4X H-alpha sensitivity and 6X Sulfur II sensitivity with a generous APS-C sensor for about half the price of a Color Cooled Camera with the same sensor size. The stock UV/IR blocking sensor filter is replaced by the Baader Luminance UV/IR blocking filter with Enhanced Spectrum (Visible + H-alpha + Sulfur II). User and budget friendly for aspiring astrophotographers expecting an easy way to capture images of deep reddish nebulae structures. The EOS Rebel SL3 is the lightest and smallest Canon EOS DSLR camera to date.





Straightforward Camera Control and Focus process



The exposures timing remote control is simply doable with a remote shutter release device or with Canon EOS Utility Free Software or Astrophotography data capture software like Backyard EOS or Astrophotography tool. Subject framing and perfect focus procedure can also be done easily with or without focus masks over Live View digital zoom using the camera’s Vari-angle LCD touchscreen, and also with Canon EOS Utility Free Software or with the mentioned 3rd party software when the camera is connected to a computer.





Best EAA Experience



Wifi-Capable feature will facilitate EAA (Electronically-Assisted Astronomy or Video-Astronomy) sessions with smartphones or tablets through the Free Canon Camera Connect App taking single frames shots. Broadcast to the entire 3rd Planet with your smartphone or tablet screen recordings/sharing through Zoom Cloud Meetings App or posting in social media platforms. With desktop or laptop computers, total intervalometer control is possible with the Wifi connection and Canon EOS Utility Free Software in Bulb mode for a completely wireless setup experience (No power/data cables).





Suitable for casual photography





This Astro-Converted camera can still be used for casual daylight photography setting the custom white balance with an 18% gray card shot, and an original white balance filter is not needed. For accurate color balance on portrait pictures or product pictures, the stock version or a OWB filter must be used.



Why buy this magnificent Astro-DSLR Camera?

  • Professionally converted on a Neat Work Room with ESD Safe Tools
  • Precision optically polished Baader UV/IR Cut Luminance Anti-Reflective Sensor glass
  • Sensor Recalibrated with Original Orthogonality for perfect focus with lenses
  • 1 Year Warranty*



* Warranty coverage includes manufacturing and conversion defects. Any kind of physical damage, water damage, abuse or misuse of the Astro-converted camera will void the warranty. Since the camera has been disassembled for the modification, this warranty coverage is provided by the Seller (AstroGear), and NOT by Canon U.S.A.

Type and Image Sensor
Lens Mount Canon EF-S
Camera Format APS-C (1.6x Crop Factor)
Pixels Actual: 25.8 Megapixel
Effective: 24.1 Megapixel
Maximum Resolution 6000 x 4000
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Sensor Type CMOS
Sensor Size 22.3 x 14.9 mm
Image File Format JPEG, Raw
Bit Depth 14-Bit
Image Stabilization Digital, 5-Axis (Video Only)
Exposure Control
ISO Sensitivity Auto, 100 to 25600 (Extended: 100 to 51200)
Shutter Speed Mechanical Shutter
1/4000 to 30 Second
Bulb Mode
Metering Method Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -5 to +5 EV (1/3, 1/2 EV Steps)
Metering Range 1 to 20 EV
White Balance Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting Up to 5 fps at 24.1 MP for up to 10 Frames (Raw) / Unlimited Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay
Video
Recording Modes MP4/H.264
UHD 4K (3840 x 2160) at 23.976p/25p [120 Mb/s]
Full HD (1920 x 1080) at 25p/29.97p/50p/59.94p [12 to 60 Mb/s]
HD (1280 x 720) at 50p/59.94p [26 Mb/s]
External Recording Modes 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.976p/29.97p
Full HD (1920 x 1080) at 59.94i/59.94p
SD (640 x 480) at 59.94p
Recording Limit Up to 29 Minutes, 59 Seconds
Video Encoding NTSC/PAL
ISO Sensitivity 100 to 12800
Audio Recording Built-In Microphone (Stereo)
External Microphone Input (Stereo)
Audio File Format AAC
Focus
Focus Type Auto and Manual Focus
Focus Mode Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
Autofocus Points Phase Detection: 9 (1 Cross-Type)
Autofocus Sensitivity -0.5 to +18 EV
Viewfinder and Monitor
Viewfinder Type Optical (Pentamirror)
Viewfinder Eye Point 19 mm
Viewfinder Coverage 95%
Viewfinder Magnification Approx. 0.87x
Diopter Adjustment -3 to +1
Size 3"
Resolution 1,040,000 Dot
Display Type Articulating Touchscreen LCD
Flash
Built-In Flash Yes
Maximum Sync Speed 1/200 Second
Flash Compensation -2 to +2 EV (1/3, 1/2 EV Steps)
Dedicated Flash System eTTL
External Flash Connection Hot Shoe
Interface
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC (UHS-I)
Connectivity 3.5mm Microphone, HDMI C (Mini), USB Micro-B (USB 2.0)
Wireless Bluetooth
Wi-Fi
GPS No
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%
Physical
Battery 1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh (Approx. 1630 Shots)
Dimensions (W x H x D) 4.82 x 3.65 x 2.75" / 122.4 x 92.6 x 69.8 mm
Weight 15.84 oz / 449 g (Body with Battery and Memory)





California Residents: Please check Proposition 65 Warning Website about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm. https://www.p65warnings.ca.gov/

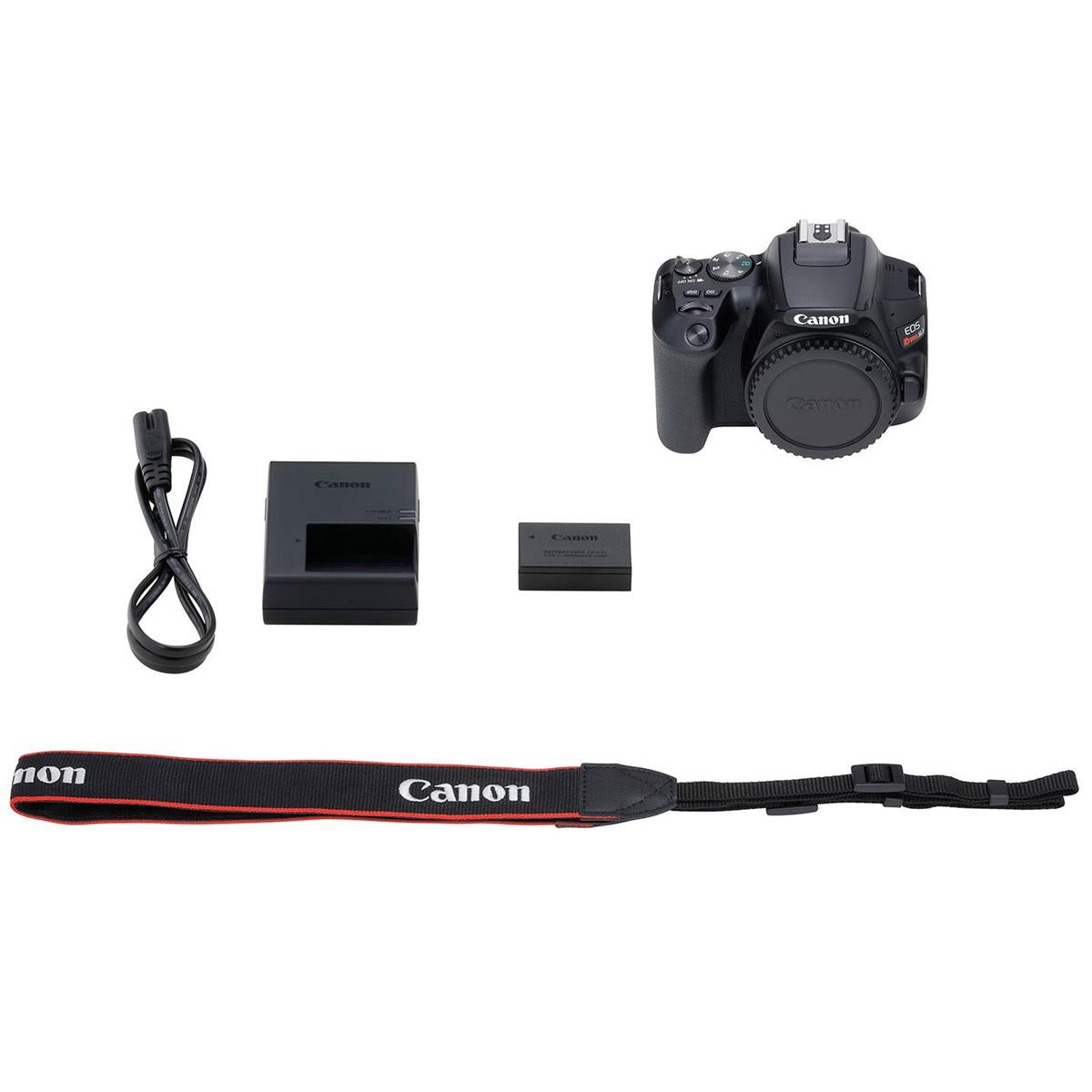

  • Brand New Astro-Converted Canon EOS Rebel SL3 Body (Black)
  • Battery Pack LP-E17
  • Battery Charger LC-E17
  • Eyecup EF
  • Neck Strap EW-400D
  • Camera Cover R-F-3



To attach the Camera to a Telescope, a T-Ring adapter not included is necessary.

To control the camera with computer software a USB Type-A to Micro 5 Pin Type-B Cable not included is necessary.
