Astronomik CLS Clip-Filter EOS APS-C (For Enhanced Spectrum Cameras)
- Large filters for large camera lens objectives are very expensive
- If you are using an Off-Axis Guider stars will be dimmed on your autoguiding camera when a 2" round mounted filter is threaded to a corrector being ahead of the reflecting prism from the light path.
- For very fast (low f/ number) telescopes like the Vixen R200SS or the Takahashi “Epsilon” astrograph, a filter drawer or a filter wheel cannot be used since the distance to the corrector lenses would be changed.
- With long exposure times your camera’s sensor chip is exposed to more dust
With the Astronomik Clip-Filter System you can take care of all of these problems at once!

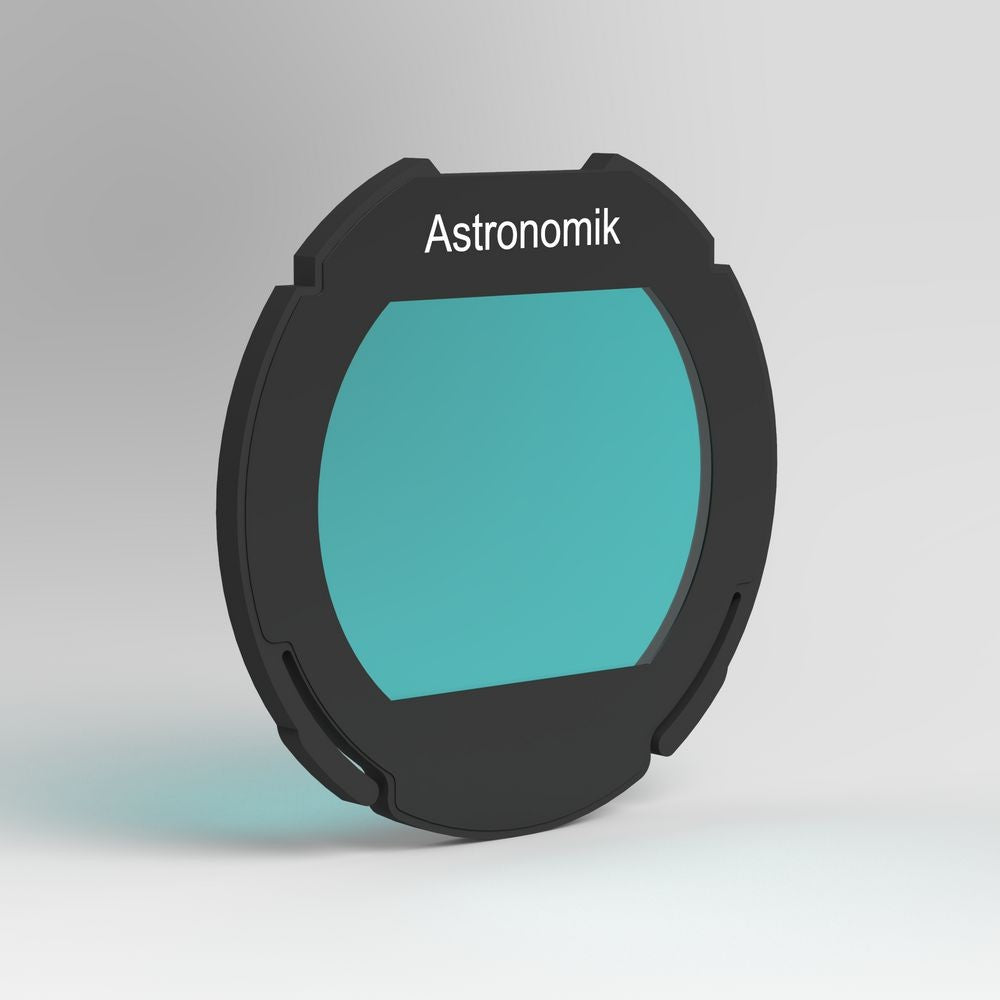

The patented Astronomik Clip-Filter System is black anodized aluminum and laser-cut on state-of-the-art modern machines. It can be inserted within seconds directly into the EOS camera body. There are no changes necessary and all lens functions (focus, screen, image stabilization) remain functional!
Almost all Canon system lenses (with the exception of the genuine EF-S series lenses), all lenses (known to us) from third party manufacturers and all M42 and T2 lens adapters, can be used with the Astronomik Clip-Filter System. The Clip-Filter System also acts as an outstanding dust shield, which prevents the possibility of dust settling on the sensor during long time exposure (The MC-Clear filter does not have a filter effect and only acts as a dust shield.)
Astronomik CLS Clip-Filter EOS APS-C (For Enhanced Spectrum Modified Cameras)
The Astronomik CLS is also a budget filter for visual observation, Black & White photography and CCD photographs of nebulae, galaxies and star clusters with astronomical instruments of any size.
The Astronomik CLS blocks the light of the spectral lines of mercury and sodium-vapor lamps and lets the largest part of the visible light and H-alpha emissions pass. All the important emission lines, as well as the spectral region that the very well dark adapted eye can see, can pass through the filter.
The filters are optimized for use with aperture ratios from 1:3 to 1:15. Transmission losses and chromatic distortions, which are problems with other filters, only appear with Astronomik filters when extremely bright aperture ratios of 1:2 and more are used. The CLS filter is suitable for use with telescopes of all aperture sizes.
Important: Full Spectrum modified cameras will need an additional IR-block-filter.
Mounting the Astronomik Clip-Filter:
Removing the Clip-Filter

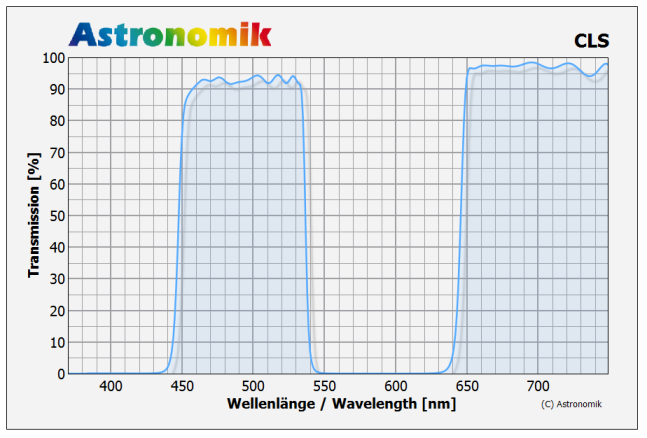

- 92% transmission at 486nm (H-beta)
- 92% transmission at 496nm (OIII)
- 92% transmission at 501nm (OIII)
- 97% transmission at 656nm (H alpha)
- pass from 450 to 540nm and beyond 650nm
- Parfocal with other Astronomik filters
- Glass thickness: 1mm
- Completely resistant against high humidity, scratches and aging effects
- Diffraction limited, the filter will not reduce the optical performance of your telescope!
- Astronomik filters are delivered in a high-quality, long lasting, filter box
- Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past
|Canon EOS||suitable for Clip-Filter||astro modification possible||Live-View||Megapixel|
|7D MkII||yes||no filter for replacement needed||yes||20,2|
|7D||yes||no filter for replacement needed||yes||18,0|
|20D||yes||filter for replacement needed||no||8,2|
|20Da||yes||filter for replacement needed||yes||8,2|
|30D||yes||filter for replacement needed||no||8,2|
|40D||yes||no filter for replacement needed||yes||10,1|
|50D||yes||no filter for replacement needed||yes||15,1|
|60D + 60Da||yes||no filter for replacement needed||yes||18|
|70D||yes||no filter for replacement needed||yes||20,2|
|77D||yes||no filter for replacement needed||yes||24,2|
|80D||yes||no filter for replacement needed||yes||24|
|90D||yes||no filter for replacement needed||yes||32|
|300D / Digital Rebel / Kiss Digital||yes||filter for replacement needed||no||6,3|
|350D / Digital Rebel XT / Kiss Digital N||yes||filter for replacement needed||no||8,0|
|400D / Digital Rebel XTi / Kiss Digital X||yes||no filter for replacement needed||no||10,1|
|450D / Rebel XSi / Kiss X2||yes||no filter for replacement needed||yes||12,2|
|500D / Rebel T1i / Kiss X3||yes||no filter for replacement needed||yes||15,1|
|550D / Rebel T2i / Kiss X4||yes||no filter for replacement needed||yes||18|
|600D / Rebel T3i / Kiss X5||yes||no filter for replacement needed||yes||18|
|650D / Rebel T4i / Kiss X6||yes||no filter for replacement needed||yes||18|
|700D / Rebel T5i / Kiss X7||yes||no filter for replacement needed||yes||18|
|750D / Rebel T6i / Kiss X8i||yes||no filter for replacement needed||yes||24|
|760D / Rebel T6s / 8000D||yes||no filter for replacement needed||yes||24,2|
|800D / Rebel T7i / Kiss X9i||yes||no filter for replacement needed||yes||24|
|850D / Rebel T8i / Kiss X10i
||yes||no filter for replacement needed||yes||24|
|1000D / Rebel XS / Kiss F||yes||no filter for replacement needed||yes||10,1|
|1100D / Rebel T3 / Kiss X50||yes||no filter for replacement needed||yes||12,2|
|1200D / Rebel T5 / Kiss X70||yes||no filter for replacement needed||yes||18|
|1300D / Rebel T6 / Kiss X80||yes||no filter for replacement needed||yes||18|
|2000D / Rebel T7 / Kiss X90||yes||no filter for replacement needed||yes||24,1|
|4000D / Rebel T100 / 3000D||yes||no filter for replacement needed||yes||18|
|100D / Rebel SL1 / Kiss X7||yes||no filter for replacement needed||yes||18|
|200D / Rebel SL2 / Kiss X9||yes||no filter for replacement needed||yes||24,1|
|250D / Rebel SL3 / Kiss X10||yes||no filter for replacement needed||yes||24,1|
|M series (all versions)||yes: This version fit´s into the Canon Adapter EF to EF-M|
Important: Not suitable are cameras offered before 2003 and all varieties of the Canon EOS 1D and EOS M.
This was really helpful to cut through Bortle 9 skies with sodium street lamps all around. I can now use a lower f stop and slightly longer exposures for subs. Not magic but very useful! Glad I purchased this!
